Pneumatic Divert Valve With Proximity Switches Control Head
Pneumatic Divert Valve With Proximity Switches Control Head
Pneumatic Divert Valve With Proximity Switches Control Head

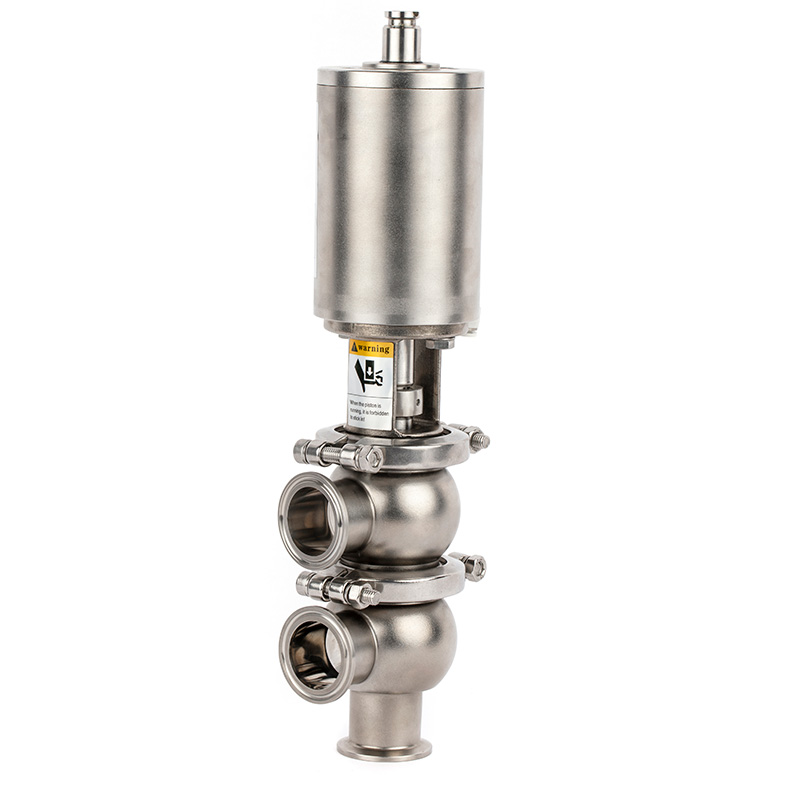

VHS Sanitary Bilateral Pneumatic Divert Valve SS304/SS316L/Stainless Steel Weld Clamp With Proximity Switches Control Head

Model:VHS20WNC

Inquire

FEATURES

Wetted Steel Material: SS304/SS316L

Size :1"-4" or DN25-DN100

EPDM seat seal per FDA 177.2600

Different Body Conbination

Pneumatic Actuator NC, NO or AA

360º adjustable body

Option with Proximity switches

Option with Control head

Ordering Information:

Size d D H1 H2 H3 H4 H5 H6 K L
1" 22.4 25.4 61 66 398 465 429 496 85 61
11/4" 28.8 31.8 61 66 398 465 429 496 85 61
11/2" 35.1 38.1 58 67 396 463 427 494 85 58
2" 47.8 50.8 66 76 428 504 459 535 126 66
21/2" 59.5 63.5 77 88 446 534 477 565 126 77
3" 72.2 76.2 97 106 475 581 506 612 126 97
31/2" 84.9 88.9 107 120 492 612 523 643 140 107
4" 97.6 101.6 127 135 535 670 566 701 151 135
DN25 25 28 61 66 398 465 429 496 85 61
DN32 31 34 61 66 398 465 429 496 85 61
DN40 37 40 58 67 396 463 427 494 85 58
DN50 49 52 66 76 428 504 459 535 126 66
DN65 66 70 97 106 475 581 506 612 126 97
DN80 81 85 107 120 492 612 523 643 140 107
DN100 100 104 127 135 535 670 566 701 151 135
Related products
Pneumatic Actuator Shut-off & Divert Valve
VHM Sanitary Tri Clamp Mini Pneumatic Actuator Shut-off & Divert Valve Design SS304/SS316L/Stainless Steel

FEATURES Wetted Steel Material: SS304/SS316L Size :1"-4" or DN25-DN100 EPDM seat seal per FDA 177.2600...

Inquire

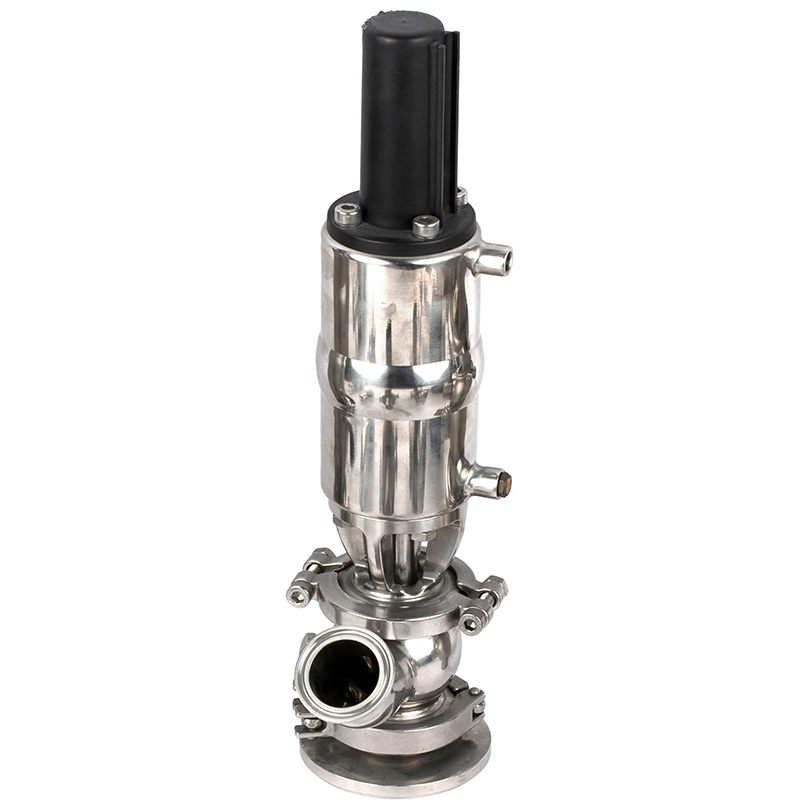

Tank Bottom Bilateral Pneumatic Divert Valve
VHS Sanitary Tank Bottom Bilateral Pneumatic Divert Valve 1"-4" or DN25-DN100 SS304/SS316L/Stainless Steel Weld Clamp

FEATURES Wetted Steel Material: SS304/SS316L Size :1"-4" or DN25-DN100 EPDM seat seal per FDA 177.2600...

Inquire

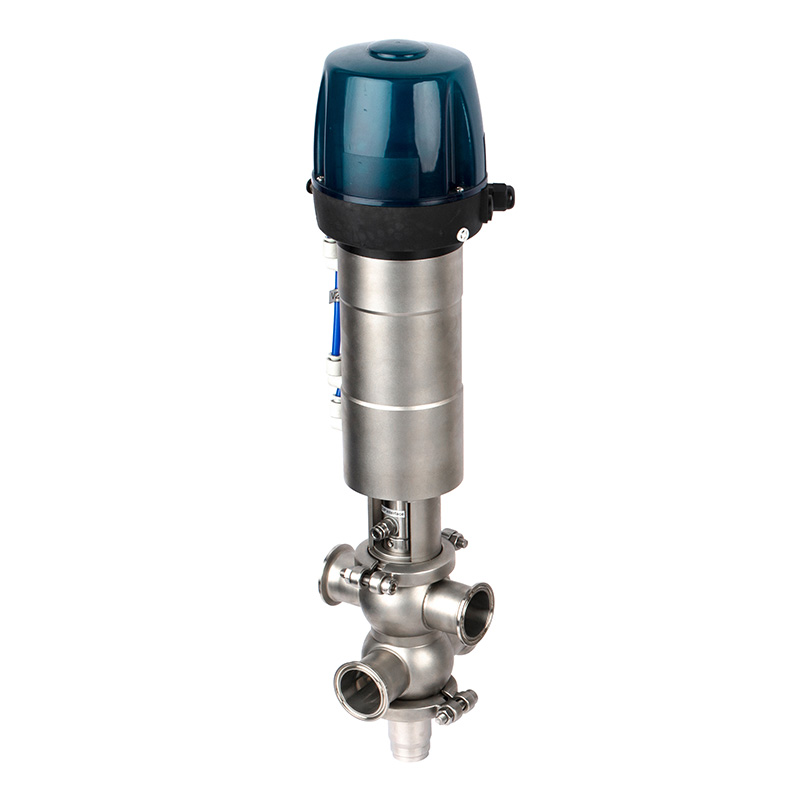

Pneumatic Divert Valve With Proximity Switches Control Head
