Pneumatic Actuator Shut-off & Divert Valve

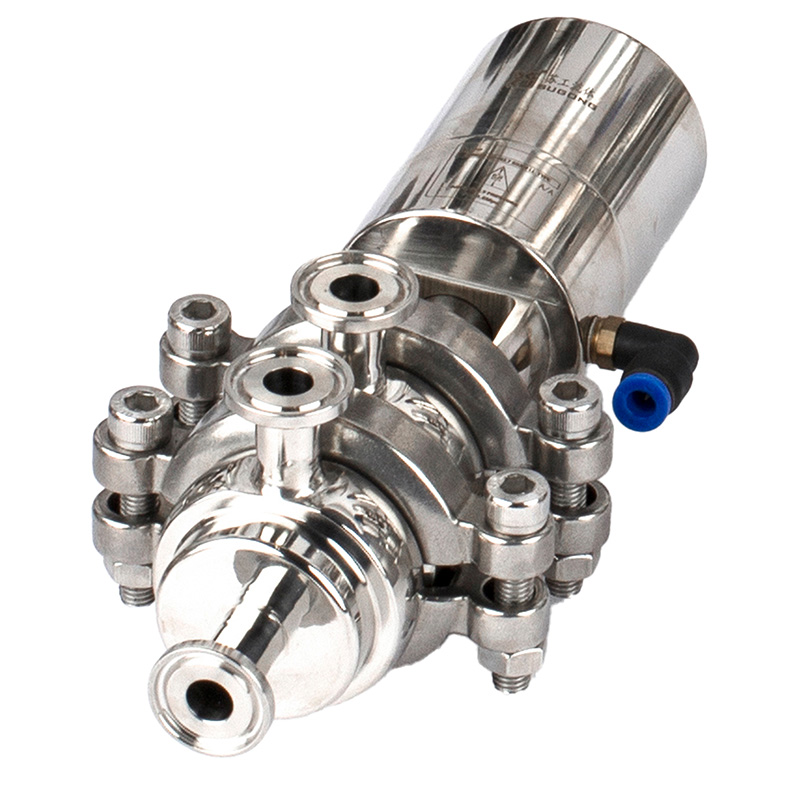

Sanitary Tri Clamp Mini Pneumatic Actuator Shut-off & Divert Valve Design SS304/SS316L/Stainless Steel

Name: Sanitary Tri Clamp Mini Pneumatic Actuator Shut-off & Divert Valve Design SS304/SS316L/Stainless Steel
Brand: QIMING
SKU: 01201
Rating: 4.9 (651 reviews)

Model No.:VHM

SKU:VHM

Inquire

Description

FEATURES

Wetted Steel Material: SS304/SS316L

Size :1"-4" or DN25-DN100

EPDM seat seal per FDA 177.2600

Different Body Conbination

Pneumatic Actuator NC, NO or AA

360º adjustable body

Option with Proximity switches

Option with Control head

Ordering Information:

Size	d	D	H1	H2	H3	H4	H5	H6	K	L
1"	22.4	25.4	61	66	398	465	429	496	85	61
11/4"	28.8	31.8	61	66	398	465	429	496	85	61
11/2"	35.1	38.1	58	67	396	463	427	494	85	58
2"	47.8	50.8	66	76	428	504	459	535	126	66
21/2"	59.5	63.5	77	88	446	534	477	565	126	77
3"	72.2	76.2	97	106	475	581	506	612	126	97
31/2"	84.9	88.9	107	120	492	612	523	643	140	107
4"	97.6	101.6	127	135	535	670	566	701	151	135
DN25	25	28	61	66	398	465	429	496	85	61
DN32	31	34	61	66	398	465	429	496	85	61
DN40	37	40	58	67	396	463	427	494	85	58
DN50	49	52	66	76	428	504	459	535	126	66
DN65	66	70	97	106	475	581	506	612	126	97
DN80	81	85	107	120	492	612	523	643	140	107
DN100	100	104	127	135	535	670	566	701	151	135
