Pneumatic Shut-off & Divert Valve
Pneumatic Shut-off & Divert Valve
Pneumatic Shut-off & Divert Valve
Pneumatic Shut-off & Divert Valve

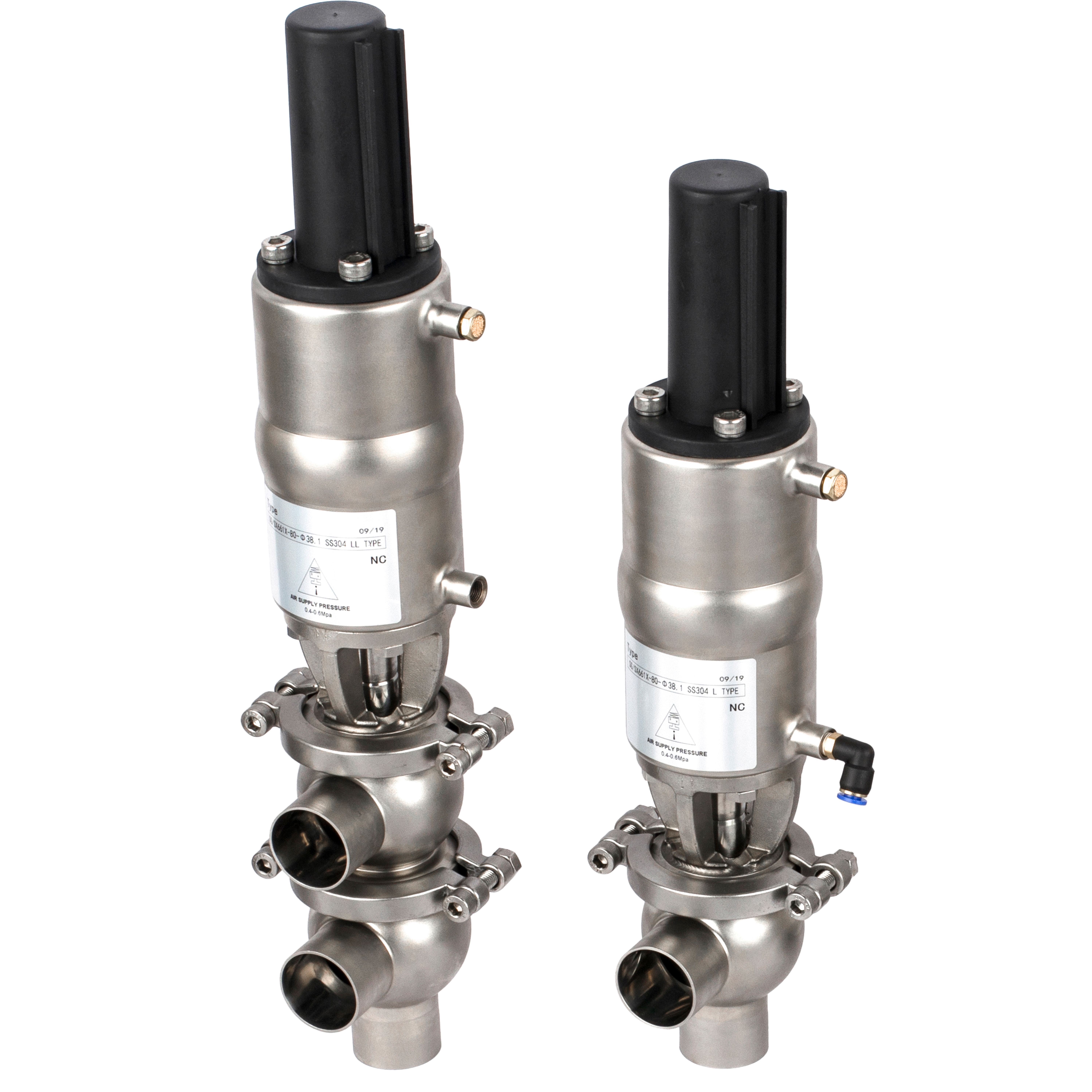

SS304/SS316L/Stainless Steel Pneumatic Shut-off & Divert Valve With Proximity Switches Control Head Sanitary

Model No.:VHS

SKU:VHS

Body Type:
20 Type
  • 20 Type
  • 30 Type
  • 21 Type
  • 22 Type
  • 31 Type
  • 32 Type
End Connections:
Clamp
  • Clamp
  • Weld
  • Male
Operation:
Manual
  • Manual
  • SS Actuator Normally Open
  • SS Actuator Normally Close
  • SS Actuator Air to Air
Body Materials:
SS304
  • SS304
  • SS316L
Materials:
Silicon
  • Silicon
  • EPDM
  • FKM
  • NBR
Size.:
3A 1"
  • 3A 1"
  • 3A 1 1/4"
  • 3A 1 1/2"
  • 3A 2"
  • 3A 2 1/2"
  • 3A 3"
  • 3A 3 1/2"
  • 3A 4"
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65
  • DN80
  • DN100
  • SMS 1"
  • SMS 11/4"
  • SMS 11/2"
  • SMS 2"
  • SMS 21/2"
  • SMS 3"
  • SMS 31/2"
  • SMS 4"
Solenoid valve:
None
  • None
  • 1pc Solenoid Valve
Position Sensor:
None
  • None
  • 1pc Sensor
  • 2pc Sensors
Inquire

FEATURES

Wetted Steel Material: SS304/SS316L

Size :1"-4" or DN25-DN100

EPDM seat seal per FDA 177.2600

Different Body Conbination

Pneumatic Actuator NC, NO or AA

360º adjustable body

Option with Proximity switches

Option with Control head

Ordering Information:

Size d D H1 H2 H3 H4 H5 H6 K L
1" 22.4 25.4 61 66 398 465 429 496 85 61
11/4" 28.8 31.8 61 66 398 465 429 496 85 61
11/2" 35.1 38.1 58 67 396 463 427 494 85 58
2" 47.8 50.8 66 76 428 504 459 535 126 66
21/2" 59.5 63.5 77 88 446 534 477 565 126 77
3" 72.2 76.2 97 106 475 581 506 612 126 97
31/2" 84.9 88.9 107 120 492 612 523 643 140 107
4" 97.6 101.6 127 135 535 670 566 701 151 135
DN25 25 28 61 66 398 465 429 496 85 61
DN32 31 34 61 66 398 465 429 496 85 61
DN40 37 40 58 67 396 463 427 494 85 58
DN50 49 52 66 76 428 504 459 535 126 66
DN65 66 70 97 106 475 581 506 612 126 97
DN80 81 85 107 120 492 612 523 643 140 107
DN100 100 104 127 135 535 670 566 701 151 135
