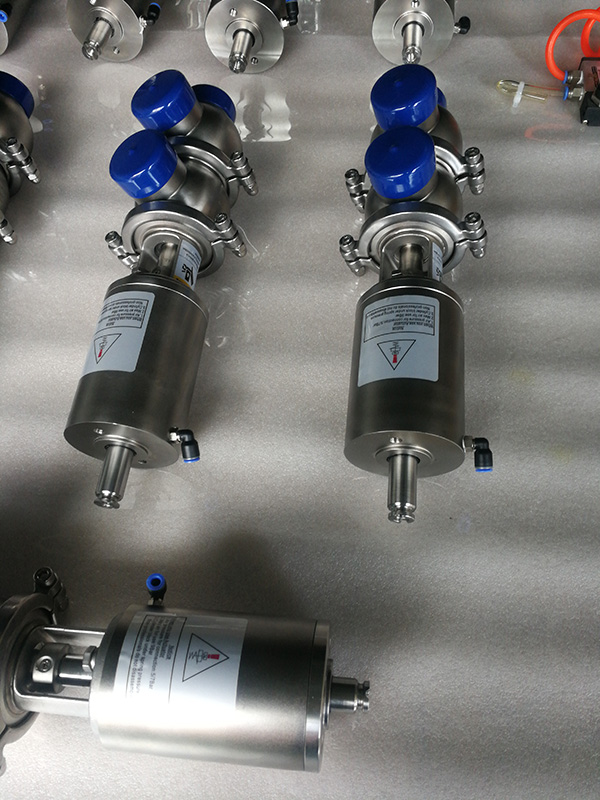

FEATURES Wetted Steel Material: SS304/SS316L Size :1"-4" or DN25-DN100 EPDM seat seal per FDA 177.2600...
InquireWetted Steel Material: SS304/SS316L
Size :1"-4" or DN25-DN100
EPDM seat seal per FDA 177.2600
Shut-off & Divert Valve Design

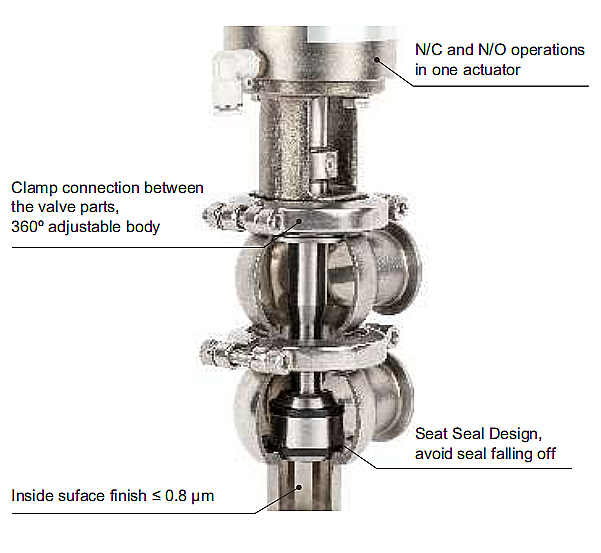

Pneumatic Actuator NC or NO and it is can be convertible.
360º adjustable body
Option with Control head

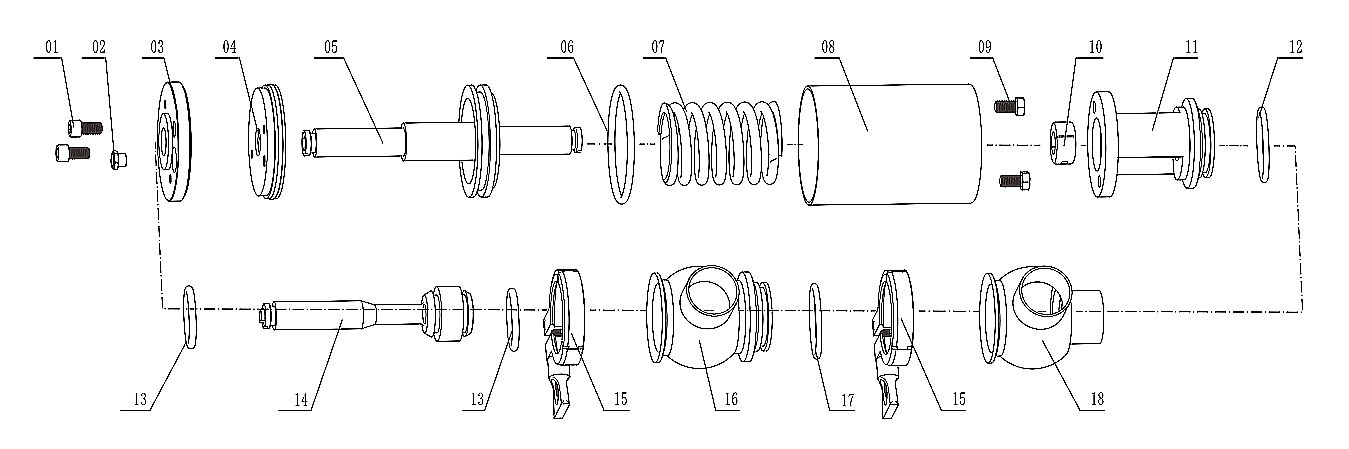

| Item No. | Description | Material | Qty |
|
| 1 | Hexagon socket bolt | SS304 | 2 | |
| 2 | Air Cock | Cu | 1 | |
| 3 | Cap | SS304 | 1 | |
| 4 | Gland | SS304 | 1 | |
| 5 | Piston | SS304 | 1 | |
| 6 | Piston Seal | NBR | 1 | |
| 7 | Spring | 60Si2Mn | 1 | |
| 8 | Cylinder | SS304 | 1 | |
| 9 | Hex Bolt | SS304 | 2 | |
| 10 | Adaptor Sleeve | SS304 | 1 | |
| 11 | Bracket | SS304/SS316L | 1 | |
| 12 | Bracket Seal | EPDM | 1 | |
| 13 | Stem Seal | EPDM | 1 | |
| 14 | Valve Stem | SS304/SS316L | 1 | |
| 15 | Clamp | SS304 | 2 | |
| 16 | Lower Valve Body | SS304/SS316L | 1 | |
| 17 | Body Seal | EPDM | 1 | |
| 18 | Upper Valve Body | SS304/SS316L | 1 |

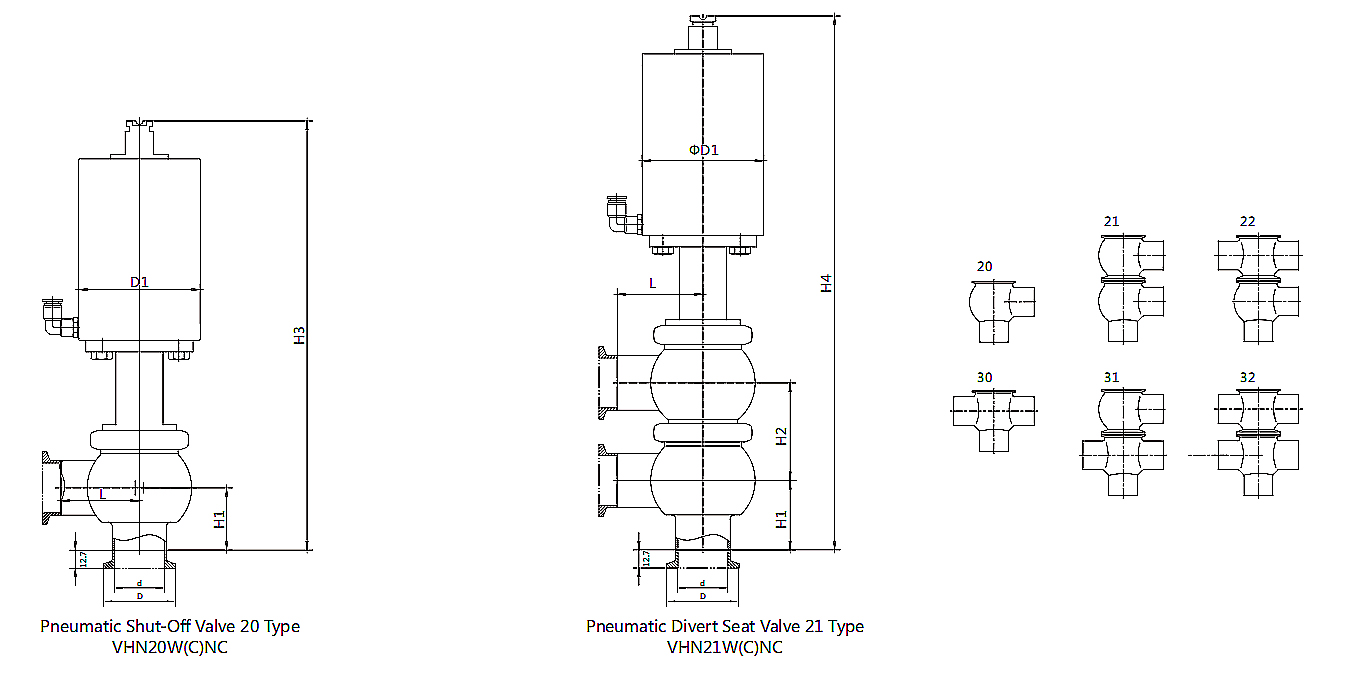

| Size | d | D | H1 | H2 | H3 | H4 | L | D1 | |
| Weld | Clamp | ||||||||
| 1" | 22.4 | 25.4 | 50.5 | 52.5 | 68 | 323.5 | 393.5 | 55 | 85 |
| 11/2" | 35.1 | 38.1 | 50.5 | 47.5 | 68 | 323.5 | 393.5 | 55 | 85 |
| 2" | 47.8 | 50.8 | 64 | 58 | 75.5 | 335 | 409 | 65 | 85 |
| 21/2" | 59.5 | 63.5 | 77.5 | 66 | 87 | 395 | 482 | 80 | 108 |
| 3" | 72.2 | 76.2 | 91 | 76 | 108.5 | 420 | 530 | 90 | 108 |
| 4" | 97.6 | 101.6 | 119 | 110 | 168.5 | 490 | 610 | 110 | 133 |
| DN25 | 25 | 28 | 50.5 | 52.5 | 68 | 323.5 | 393.5 | 55 | 85 |
| DN40 | 37 | 40 | 50.5 | 47.5 | 68 | 323.5 | 393.5 | 55 | 85 |
| DN50 | 49 | 52 | 64 | 58 | 75.5 | 335 | 409 | 65 | 85 |
| DN65 | 66 | 70 | 77.5 | 66 | 108.5 | 420 | 530 | 90 | 108 |
| DN100 | 100 | 104 | 119 | 110 | 168.5 | 490 | 610 | 110 | 133 |
