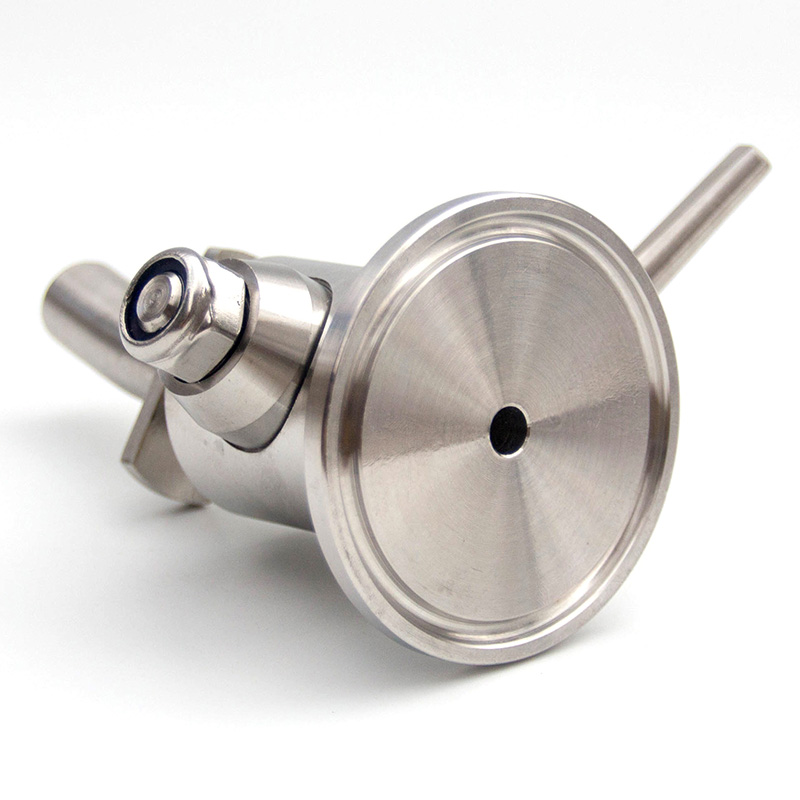

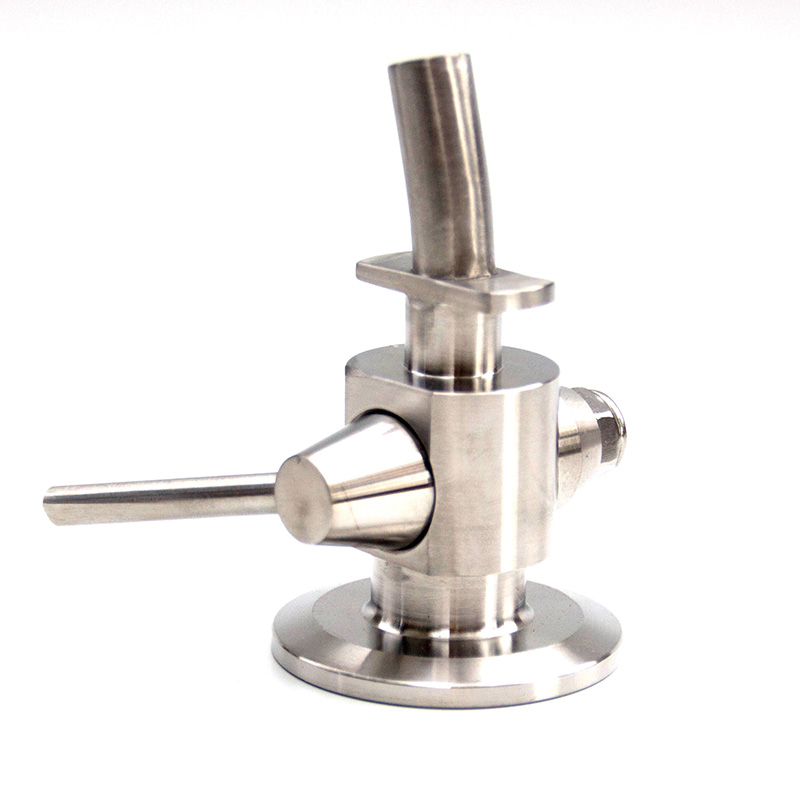

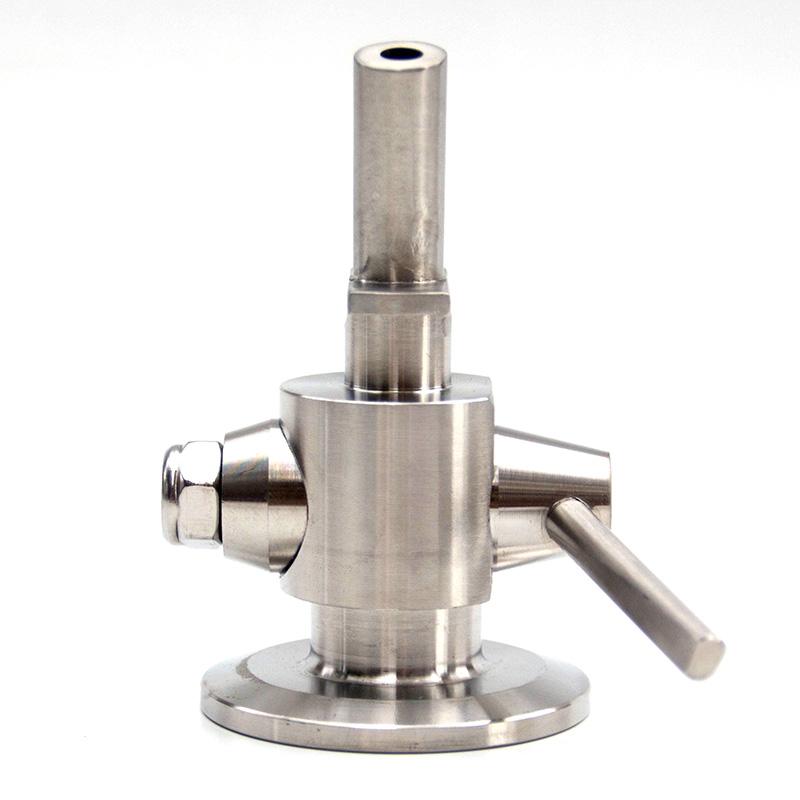

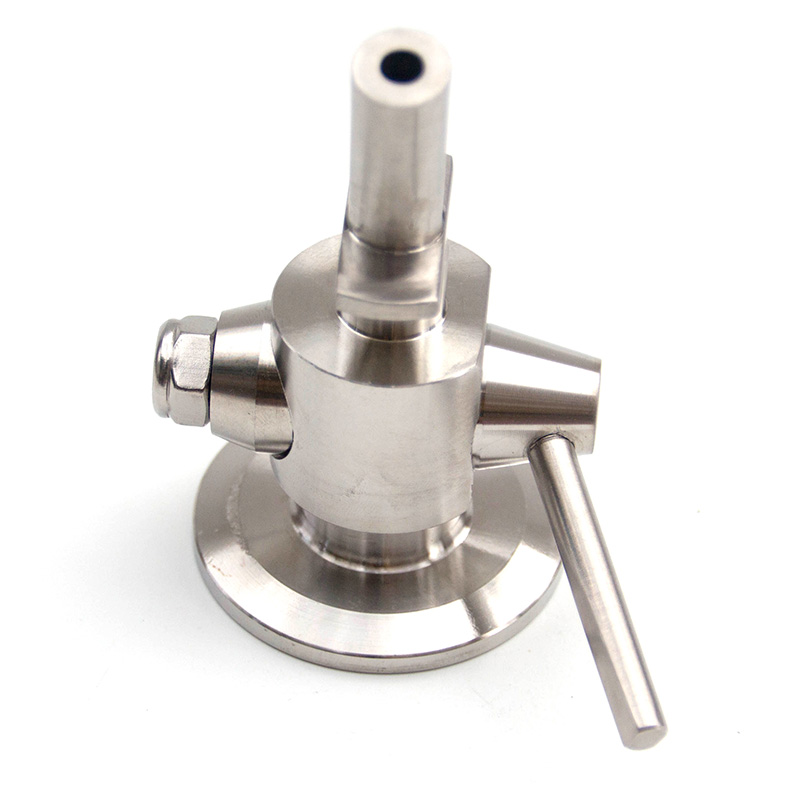

Plug Type Sampling Valve Sanitary for Food Clamp/BSP Male Tank Fitting SS304/SS316L Stainless Steel

Concept

VSB series sampling valves with plug are designed for food, beverage, pharmaceutical, chemical and brewery industries.

Design and Features

·VSB series sampling valves with metal sealing, can effectively prevents material from damage long-term contacting with seal

·Available Sizes: 1/2", 3/8", 11/2", 2"

·End Connections: Male Thread, Tri-Clamp or on request

·VSB Sample Valves for Breweries c/w lip for pigtail hook up

Technical Data

Max. Working Pressure: 2Bar (29Psi)

Material

Body: SS304/SS316L

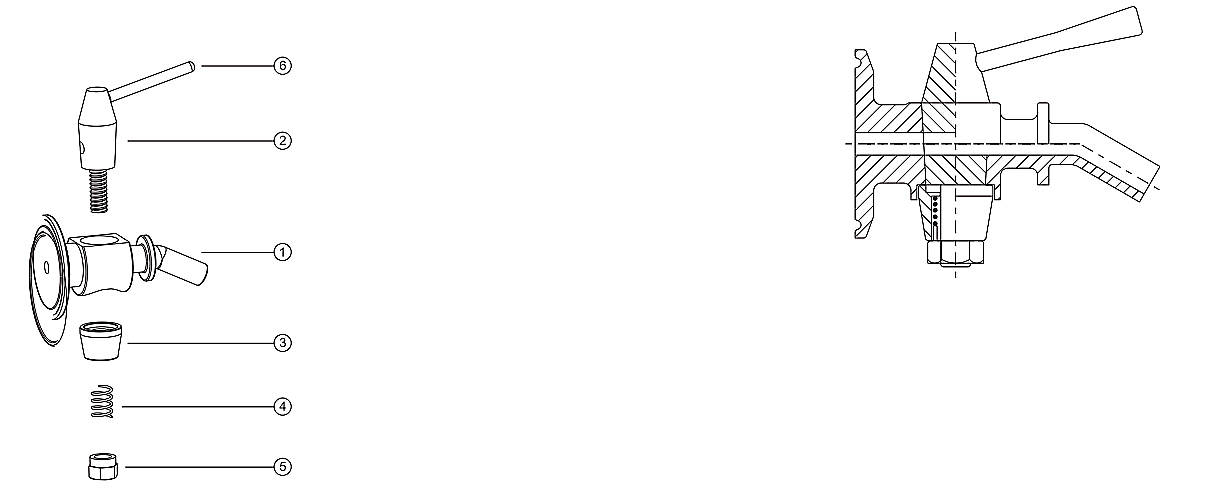

Item	Description	Material
1	Body	AISI304
2	Plug	AISI304
3	Spring Housing	AISI304
4	Spring	AISI304
5	Nylocnut	AISI304/Nylon
6	Handle	AISI304

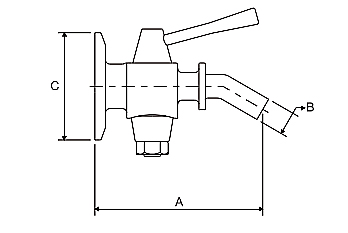

Clamp Pulg Type Sampling Valve

Model No	Size	A	B	C
VSB01C41150	11/2"	83	11	50.5
VSB01C41200	2"	83	11	64

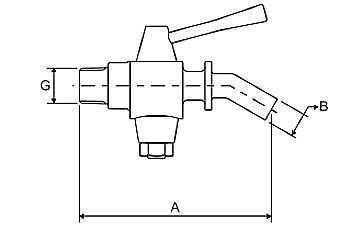

BSP Male Pulg Type Sampling Valve

Model No	Size	A	B	G
VSB01M41050	1/2"	83	11	G1/2"
VSB01M41038	3/8"	83	11	G3/8"
