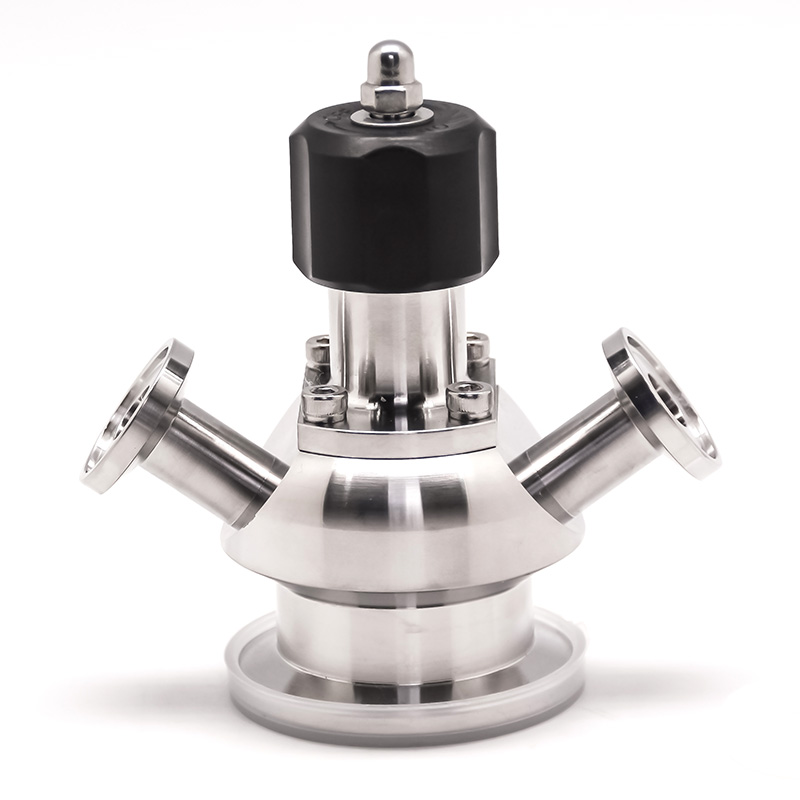

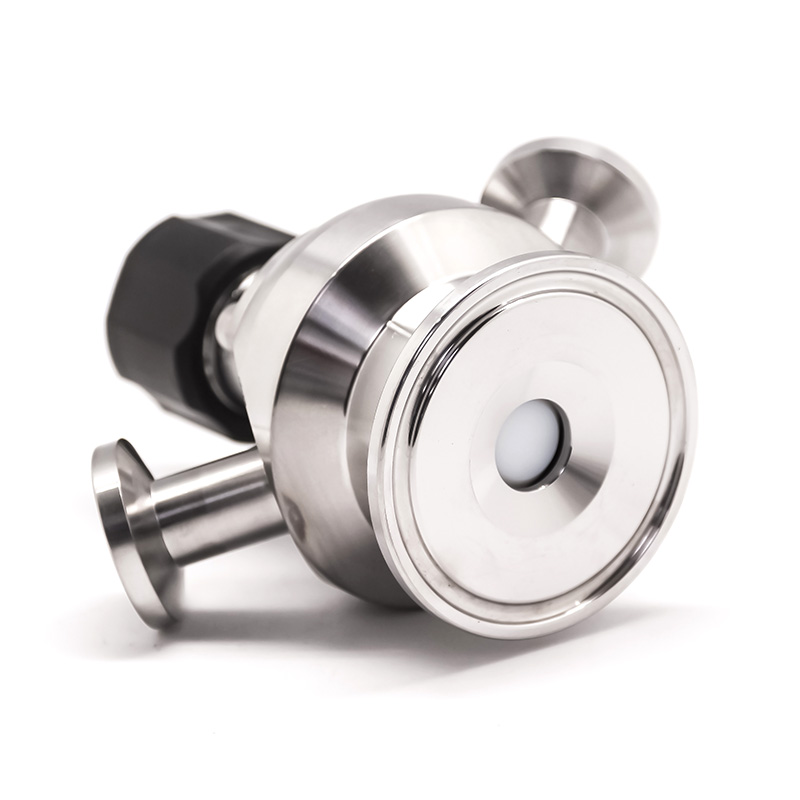

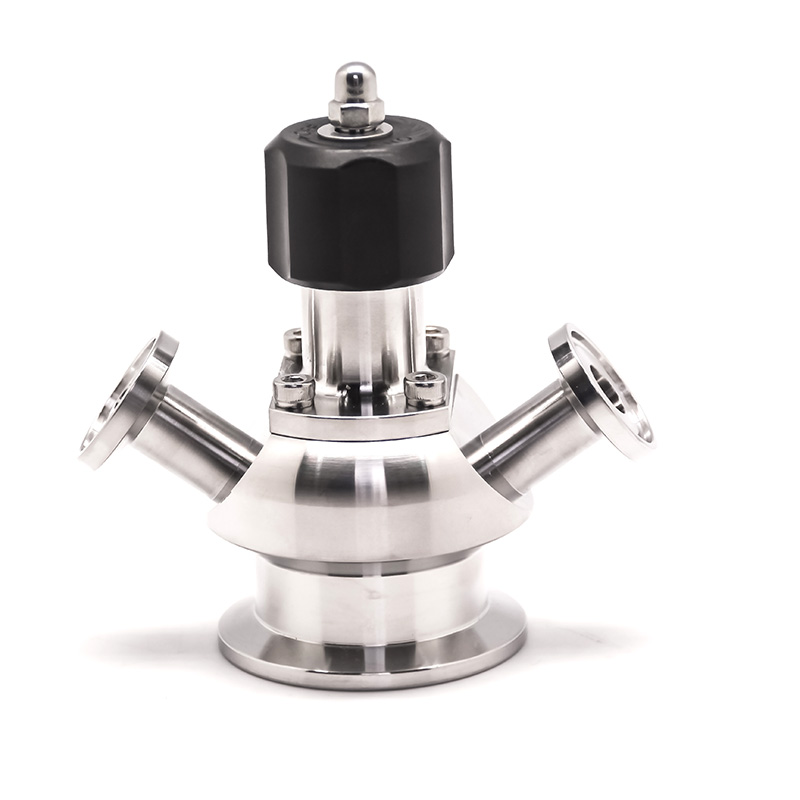

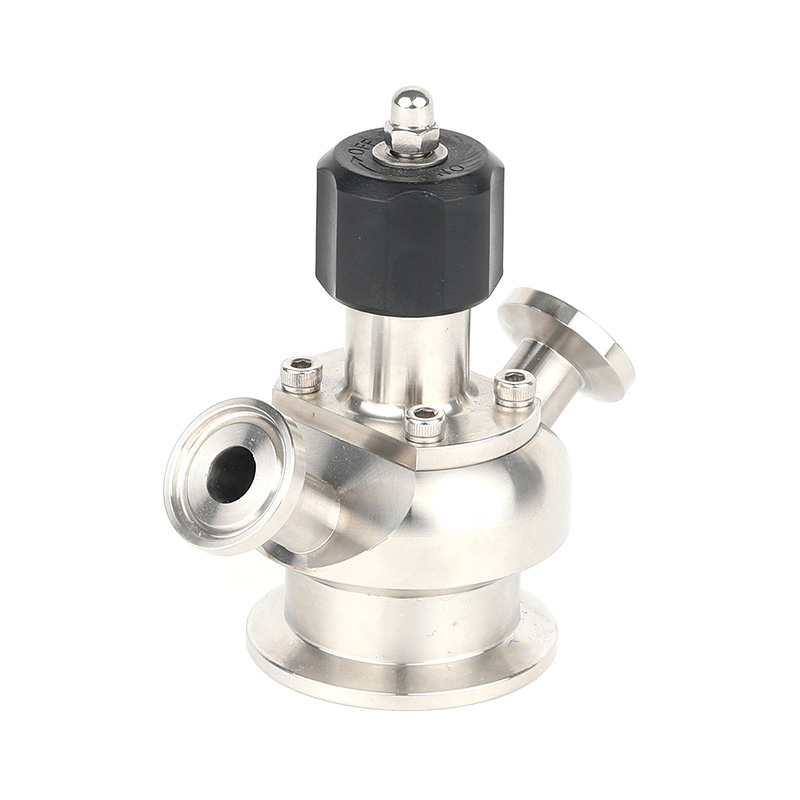

Aseptic Sampling Valve Bilateral Tank Weld/Clamp Request SS304 Stainless Steel with PTFE Membrane

Concept

Aseptic sampling valves are measured and designed for sampling, medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter. Such as Unprocessed Milk,Medical  solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more.

Design and Features

·Available Sizes: DN6, DN8, DN10, DN15

·End Connections: Tank Weld, Tri-Clamp or on request

Technical Data

Temperature range of PTFE: 0 to 150ºC / 32 to 302ºF

Max. Working Pressure: 6Bar (87Psi)

Material

Body: SS316L

Membrane: PTFE

Specification

Available in sizes from 1/4" to 1"

Max. pressure: 10bar (145psi); DN25 ~ 100

Temperature range: 50 ~ 248°F (-10 ~ 120°C), EPDM

End connections: butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Assembly Drawing

	Item	Description	Matrtial	QTY
	1	Hexagon Nut	SS304	1
	2	Flat Ring	SS304	1
	3	Hand Wheel	POM	1
	4	Bushing	ABS	1
	5	Support	SS304	1
	6	Shaft	SS304	1
	7	Bolt	SS304	4
	8	O-Ring	Silicon*	1
	9	Ball Bearing	SS304	1
	10	Membrane	PTFE	1
	11	Valve Body	SS304/SS316L	1

Weld Sampling Valve

Model No	Size	d	D1	A	C	L
VSC01M1W32652008	DN8	8	28	25.2	5	85
VSC01M1W32652010	DN10	9.5	28	25.2	9.5	93

Clamp Sampling Valve

Model No	Size	d	K	A	C	L
VSC01M1C32652008	DN8	8	25.2	25.2	5	85
VSC01M1C32652010	DN10	9.5	50.5	25.2	9.5	93
