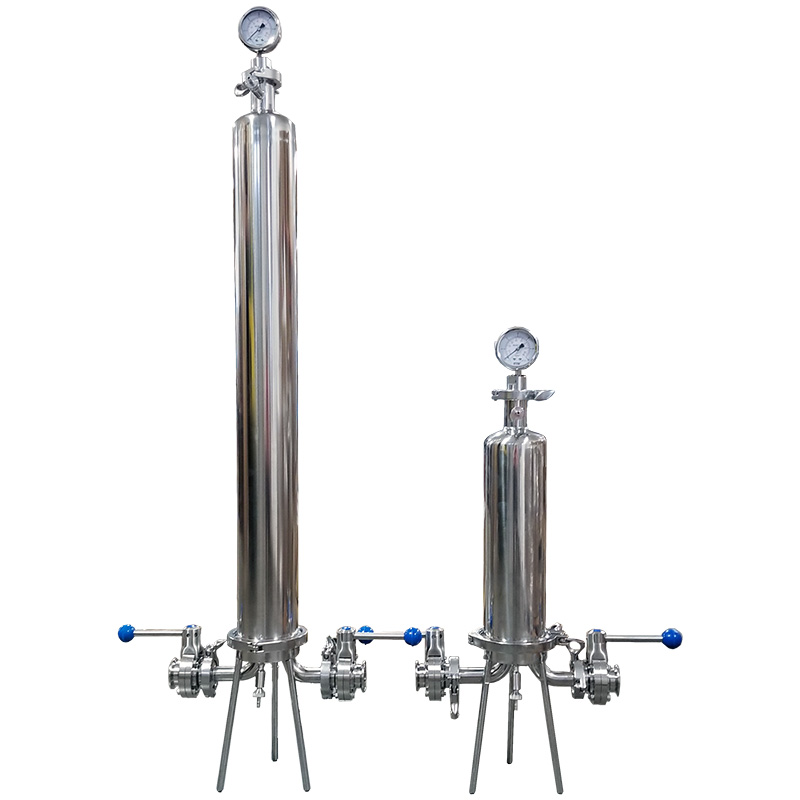

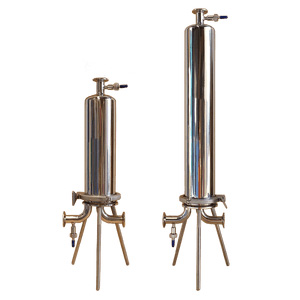

Sanitary Multi-Cartridge Filter Housing SS304/SS316L Crevice Free Design Mechanical Polished Stainless Steel Tank Components

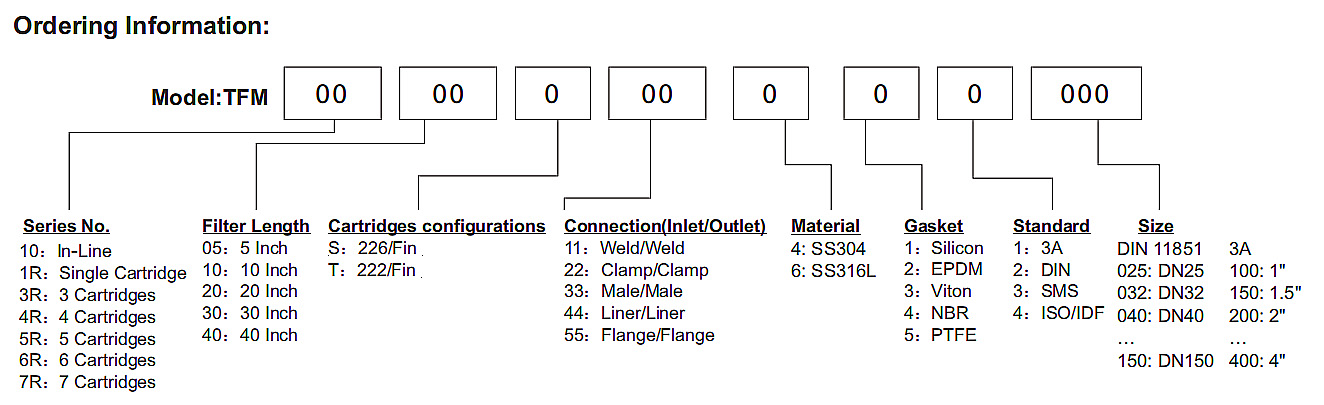

Model No.:TFM

SKU:TFM

Filter Series No.:

Fliter Length:

Cartridges Configurations:

End Connections:

Body Materials:

Gasket Material:

Size.:

Application

TFM sanitary filter housing is designed for sanitary, pharmaceutical, biological, biotechnological, food and beverage applications, constructed in stainless steel 304 or 316L with a crevice free design. Designed for hot water, chemical and steam sterilisation. Ideal for use with filter cartridges ranging from clarification to sterilising grade membranes. Suitable for applications where CIP and SIP cleaning and sterilization procedures are required.

Materials

Cartridge housing material :SS304/SS316L
Clamp :SS304
Tri clamp Gasket:Silicon per FDA 177.2600
Venting (optional):SS304/SS316L
Draining (optional) :SS304/SS316L

Standard Design

T type Design
High-quality and crevice free construction
Tri-Clamp Closure
Sanitary process, vent & drain connections
Cartridges in 222/Fin or 226/Fin configurations
Single cartridge
Length of filter cartridges: 10", 20", 30", 40"

Technical Specification

Temperature range: -10°C to 120°C(Silicon)
Working Pressure: 8 bar up to 40 °C
Steam Sterilization :121°C/ 30 min

Surface Finishing

Inner surface: Mechanical polished, surface roughness < 0.4 μm
Outer surface: Mechanical polished, surface roughness < 0.8 μm

Operating Conditions

Max.operating temperature: -10℃ to 120°C(Silicon)
Max. operating pressure:8 bar up to 40 °C
Steam Sterilization:121°C/ 30 min

Connection

Body Connection: Tri-Clamp Closure (Single Round)/Swing Bolt Closures( Multi-Round )
Inlet/outlet :Dairy pipe fittings for dairy pipes as per DIN 11851 or weld end clamps Tc for pipes as per ls0 2037 or flanges
Vent :M6 thread/Tc 25.2mm
Drain:Clamp 1/2"(TC 25.2mm)

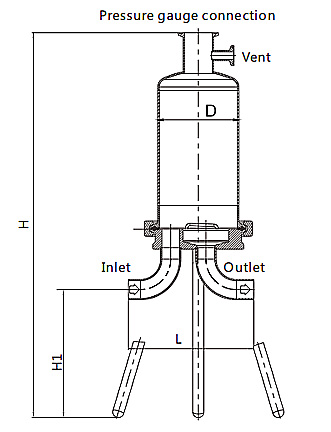

Model No	Cartridges			D	H	H1	L	Inlet & Outlet
Model No	QTY	Length	Configurations	D	H	H1	L	Connection	Size
TFM1R10S22411150	1	10"	226	101.6	625	170	220	Clamp	1.5"
TFM1R10S22411150	1	20"	226	101.6	875	170	220	Clamp	1.5"
TFM1R10S22411150	1	30"	226	101.6	1125	170	220	Clamp	1.5"
TFM1R10S22411150	1	40"	226	101.6	1375	170	220	Clamp	1.5"
