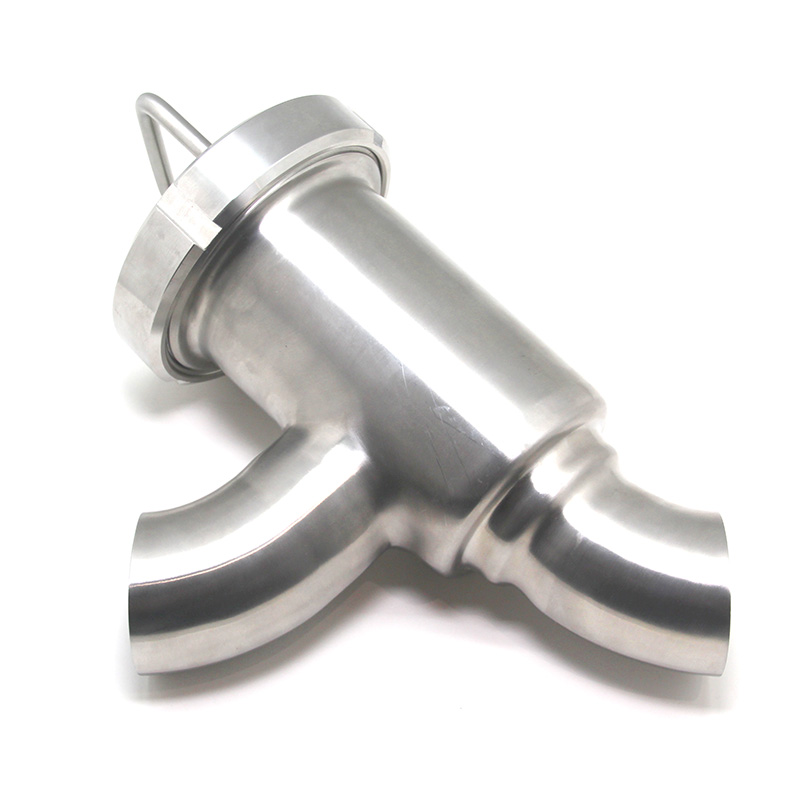

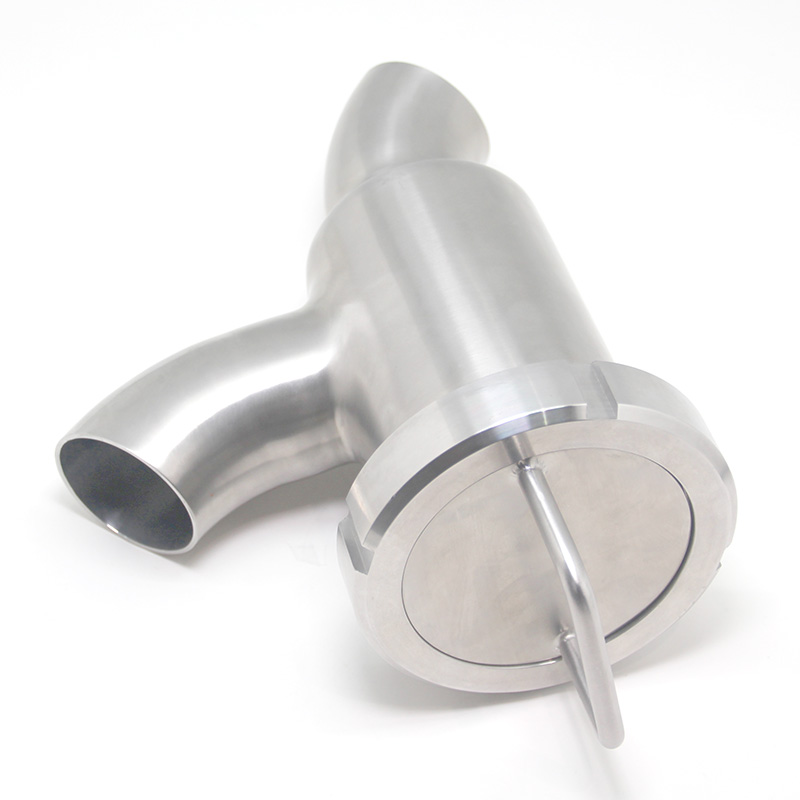

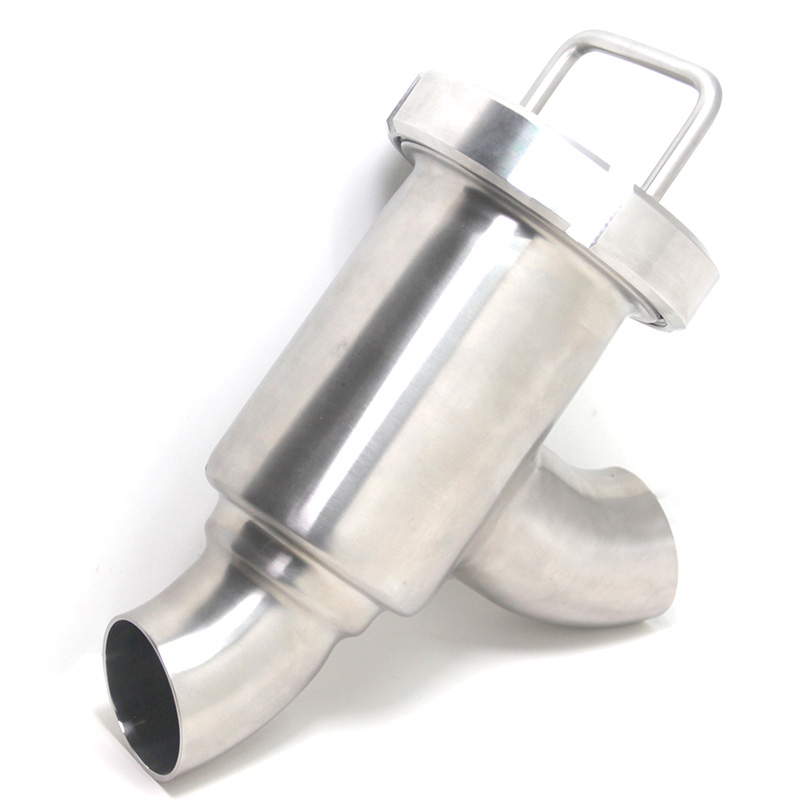

InquireTFY Series y type filter is mainly used for filtering liquid with solid particles, protecting the pump, instruments and other devices to work properly.Filters have a wide range of applications in the food-processingcosmetics and some chemical industries as well as in auxiliaryservices of the pharmaceutical industry.They have a hygienicdesign and are used to filter particles capable of damaging pumpsand other equipments.

working Pressure:8Bar
working Temperature:-10℃ to 120℃ (Silicon)
wetting Parts: SS304/SS316L
Slotted Cover Nut: SS304
Gasket Material: Silicon per FDA 177.2600
Satin or Mirror Polishing
Seal Material: EPDM, FPM per FDA 177.2600

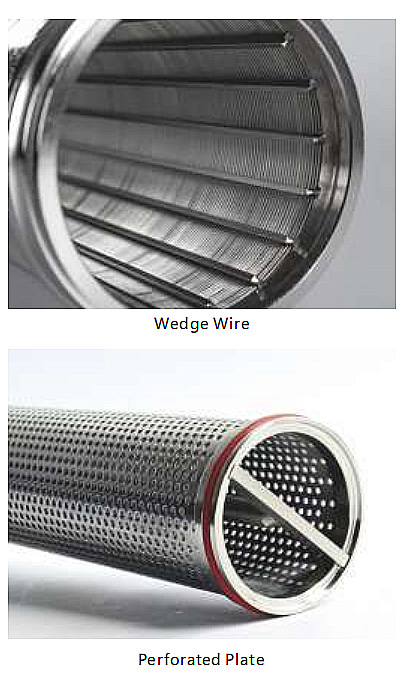

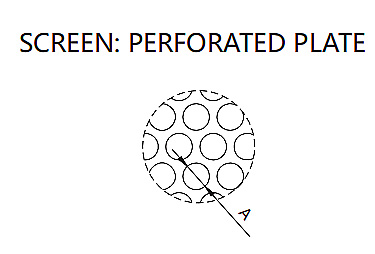

Wedge Wire Screen options available
![]() |
![]() |
![]() |
|||||||

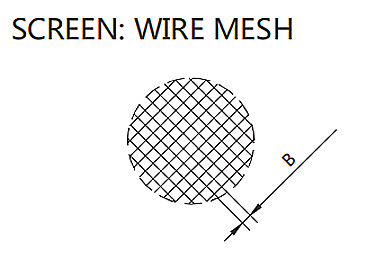

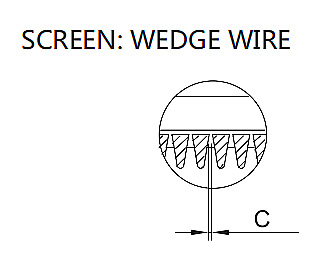

| Mesh Equiv. | C(mm) | Useful Surface(%) | A(mm) | Useful Surface(%) | Mesh | Wire Diameter(mm) | Aperture(mm) | ||
| 40 | 0.40 | 28 | 0.5 | 15 | 80 | 0.12 | 0.198 | ||
| 60 | 0.30 | 23 | 1 | 28 | 100 | 0.1 | 0.154 | ||
| 80 | 0.20 | 17 | 2 | 30 | 120 | 0.05 | 0.132 | ||
| 165 | 0.10 | 10 | 5 | 46 | 150 | 0.065 | 0.104 | ||
| 325 | 0.05 | 5 | 10X1 | 20 | 200 | 0.053 | 0.074 | ||
| 250 | 0.04 | 0.061 | |||||||
| 300 | 0.035 | 0.049 | |||||||
| 350 | 0.03 | 0.042 | |||||||
| 400 | 0.025 | 0.0385 | |||||||
Y type Filter TFY02
![]() |

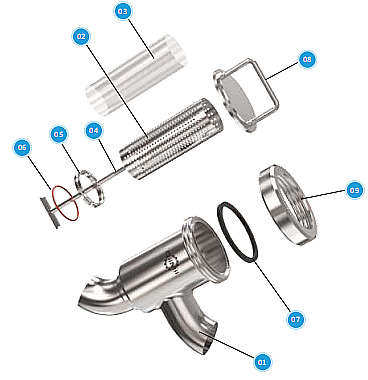

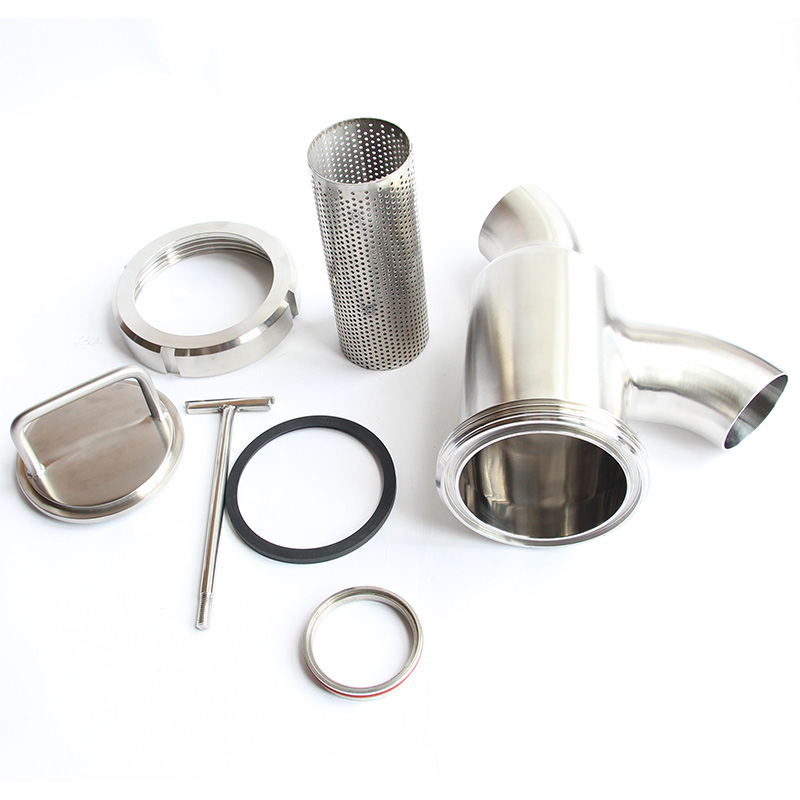

Item | Description | Material |
| 1 | Filter House | SS304/SS316L | |
| 2 | Perforated Plate Screen | SS304/SS316L | |
| 3 | Wire Mesh Screen | SS304/SS316L | |
| 4 | Locating Rod | SS304/SS316L | |
| 5 | Gasket Holder | SS304/SS316L | |
| 6 | O-Ring | Silicon | |
| 7 | Uinon Gasket | Silicon | |
| 8 | Cap | SS304/SS316L | |
| 9 | Nut | SS304 |
![]() |

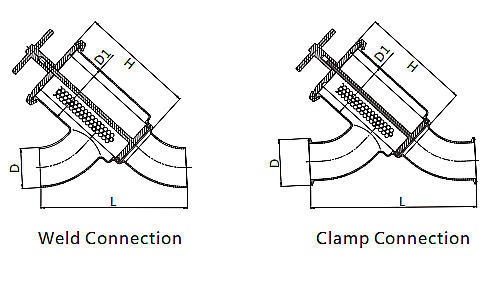

Size | D1 | D | G | H | L | |||
| Weld | Clamp | Thread | Weld | Clamp | Thread | ||||
| 1" | 51 | 25.4 | 50.5 | RD40*1/6 | 100 | 140 | 183 | 178 | |
| 1.5" | 76 | 38.1 | 50.5 | RD60*1/6 | 145 | 165 | 208 | 211 | |
| 2" | 89 | 50.8 | 64 | RD70*1/6 | 165 | 210 | 253 | 256 | |
| 2.5" | 102 | 63.5 | 77.5 | RD85*1/6 | 195 | 245 | 288 | 299 | |
| 3" | 102 | 76.2 | 91 | RD98*1/6 | 195 | 280 | 323 | 334 | |
| 4" | 140 | 101.6 | 119 | RD132*1/6 | 255 | 360 | 403 | 420 | |
| DN25 | 51 | 28 | 50.5 | RD52*1/6 | 100 | 140 | 183 | 198 | |
| DN40 | 76 | 40 | 50.5 | RD65*1/6 | 145 | 165 | 208 | 229 | |
| DN50 | 89 | 52 | 64 | RD78*1/6 | 165 | 210 | 253 | 276 | |
| DN65 | 102 | 70 | 77.5 | RD95*1/6 | 195 | 280 | 336 | 350 | |
| DN80 | 114 | 85 | 91 | RD110*1/6 | 225 | 300 | 356 | 380 | |
| DN100 | 140 | 104 | 119 | RD130*1/4 | 255 | 360 | 416 | 450 | |
