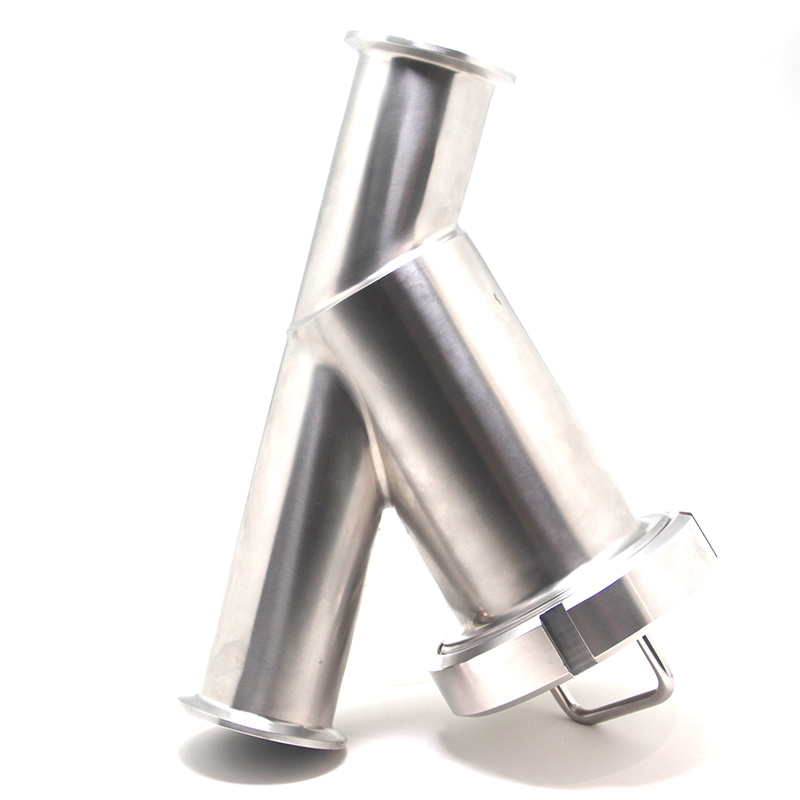

TFY01 Y Type Filter

Application: TFY Series y type filter is mainly used for filtering liquid with solid particles, protecting the pump, instruments and other devices to work properly.

Categories: Filter
FOB Port: Ningbo, Zhejiang
Terms of Payment: Western Union,T/T Paypal
Delivery Time: 15 Working Days
Inquire Now PDF Datasheet

Application

TFY Series y type filter is mainly used for filtering liquid with solid particles, protecting the pump, instruments and other devices to work properly.

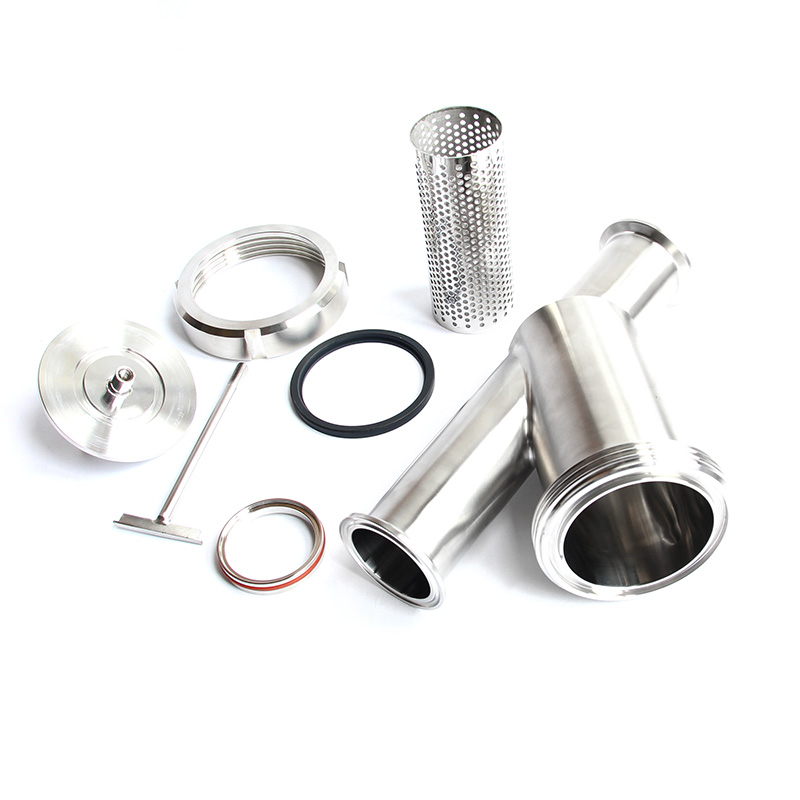

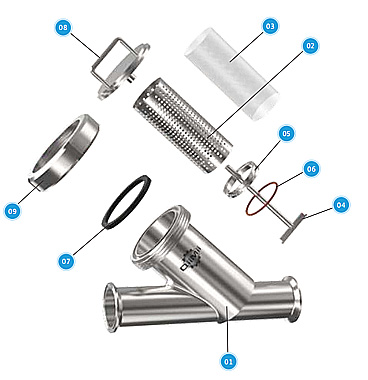

Materials

  • Body Materials: AISI-304 or AISI-316L

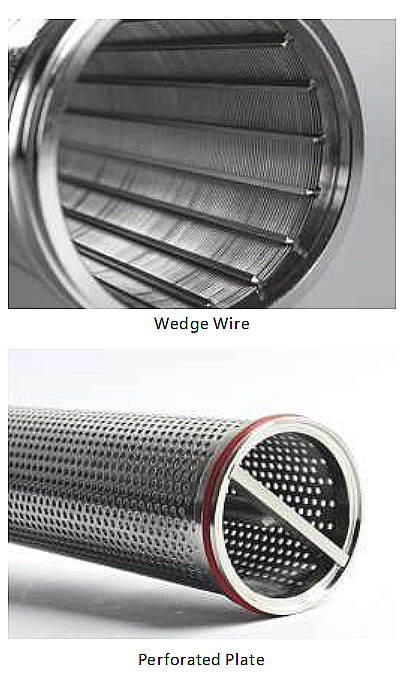

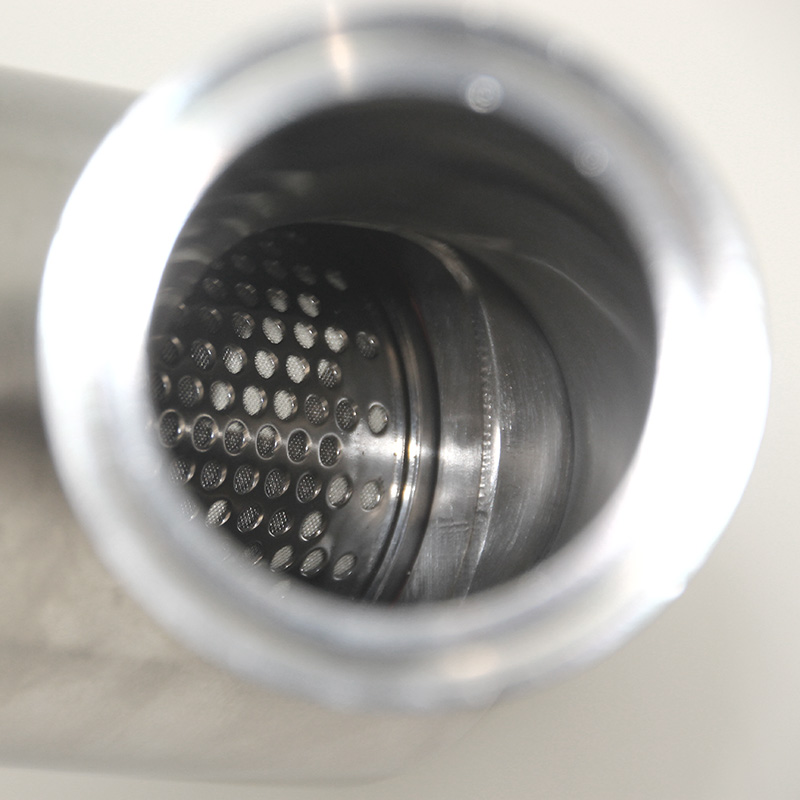

  • Filter Screen: Metal Mesh, Perforated Plate

  • Gasket Material: EPDM, NBR

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size from 1"-4", DN25-DN100 or others upon requirement

  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

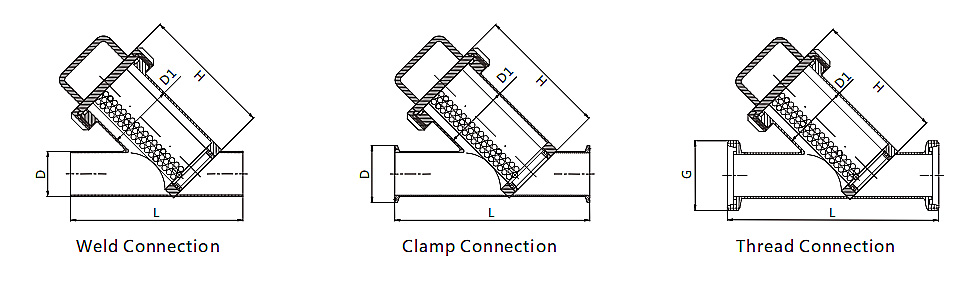

  • End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

  • Temperature range: -4 ~ 275℉ (-20 ~ 135℃), EPDM

  • Working Pressure: 14.5-145Psi (1-10Bar)
