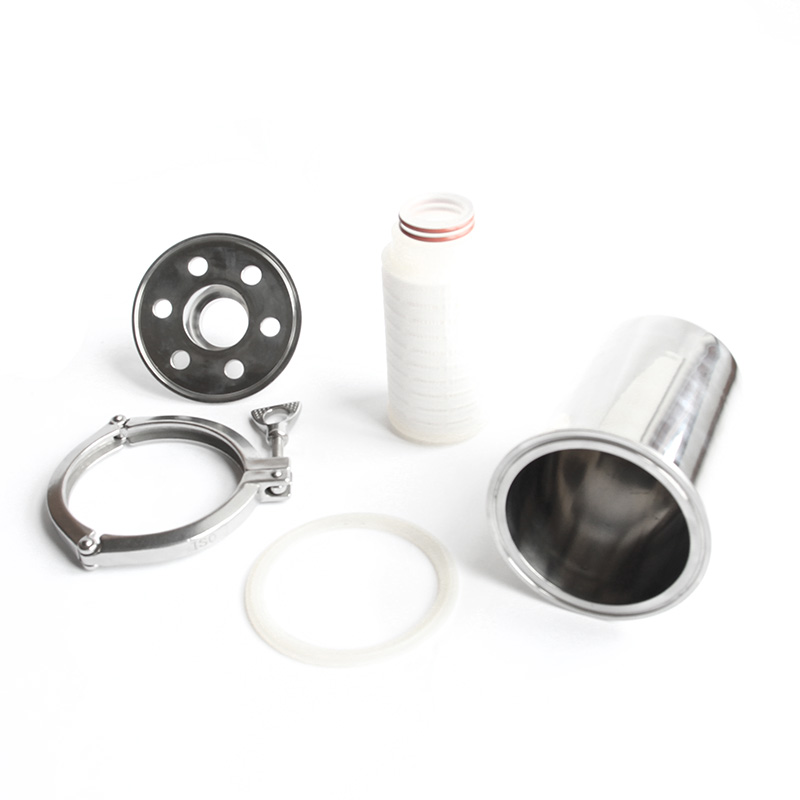

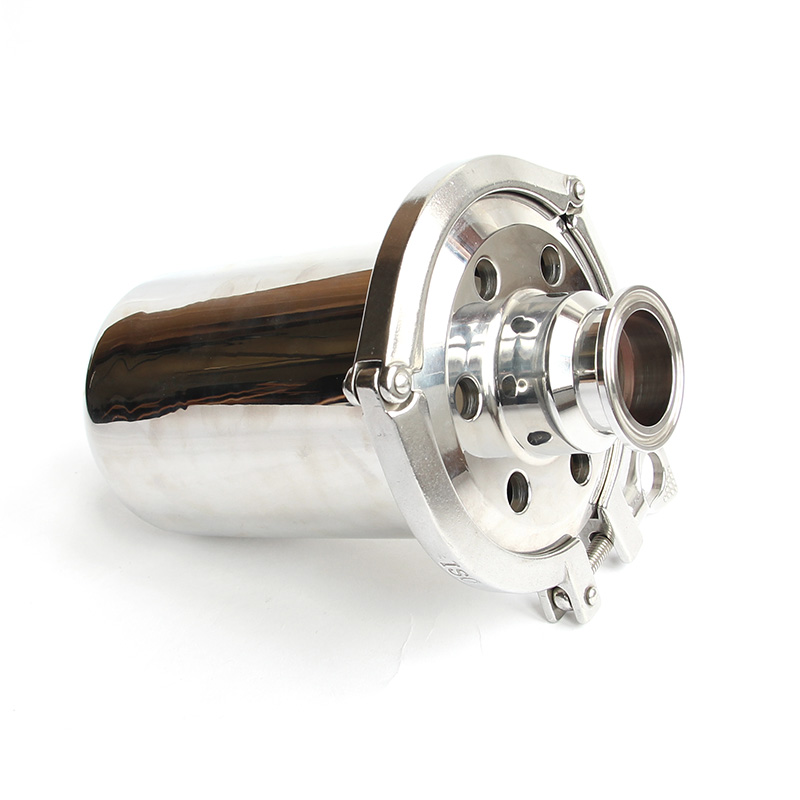

Sanitary Rebreather Filter Stainless Steel 4 Inch Filter Housing Diameter SS304/SS316L Clamp/Thread/Weld/Flange

Model No.:TFR01

SKU:TFR01

End Connections:
Clamp
  • Clamp
  • Weld
  • Female
  • Male
Body Materials:
SS304
  • SS304
  • SS316L
Gasket Material:
Silicone
  • Silicone
  • EPDM
  • FKM
  • NBR
  • PTFE
Size.:
3A 1"
  • 3A 1"
  • 3A 1 1/2"
  • 3A 2"
  • 3A 2 1/2"
  • 3A 3"
  • 3A 3 1/2"
  • 3A 4"
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65
  • DN80
  • DN100
  • DN125
  • DN150
  • SMS 1"
  • SMS 11/2"
  • SMS 2"
  • SMS 21/2"
  • SMS 3"
  • SMS 31/2"
  • SMS 4"
Finishing:
Inner Mirror/Outer Matte
  • Inner Mirror/Outer Matte
  • Inner Mirror/Outer Mirror
  • Inner Matte/Outer Mirror

Application

TFR Series rebreather is a kind of filter which will be installed on the top of tank,it prevents the outside particulates coming into the storage tank due to liquid level descends. It ensures the air purity in the tank.

Materials

  • Housing Material: SS304 or SS316L
  • Filter Material: PP, PTFE, Nylon or PE
  • Filter Presicion: 0.1-60um(0.22um is the standard)

Standard Design

  • 4" Filter Housing Diameter
  • Internal and External mirror or satin polished.
  • Different connection way for option: Clamp, Thread, Weld or Flange

Technical Specification

  • Temperature range: -4 ~ 275℉ (-20 ~ 135℃), EPDM

  • Working Pressure: 14.5-145Psi (1-10Bar)

TechnicaL Data

  • Housing Material: SS304 or SS316L
  • Filter Material:PP, PTFE, Nylon or PE.
  • Filter Presicion:0.1-60um(0.22um is the standard)

Features

  • 4" Filter Housing Diameter
  • Internal and External mirror or satin polished
  • Different connection way for option: Clamp, ThreadWeld or Flange

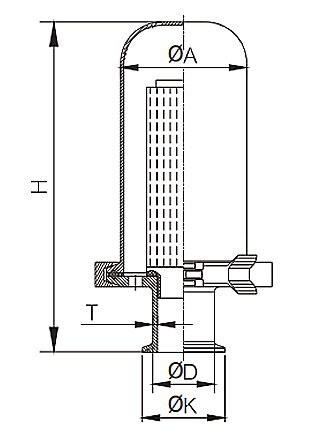

Clamp Rebreather

Model No Size D K A H
TCR01C411100 1'' 22.1 50.5 101.6 180
TCR01C411125 11/4" 38.1 50.5 101.6 180
TCR01C411150 11/2'' 34.8 50.5 101.6 180
TCR01C411200 2'' 47.5 64 101.6 180
TCR01C412025 DN25 28 50.5 101.6 180
TCR01C412032 DN32 34 50.5 101.6 180
TCR01C412040 DN40 40 50.5 101.6 180
TCR01C412050 DN50 52 64 101.6 180
