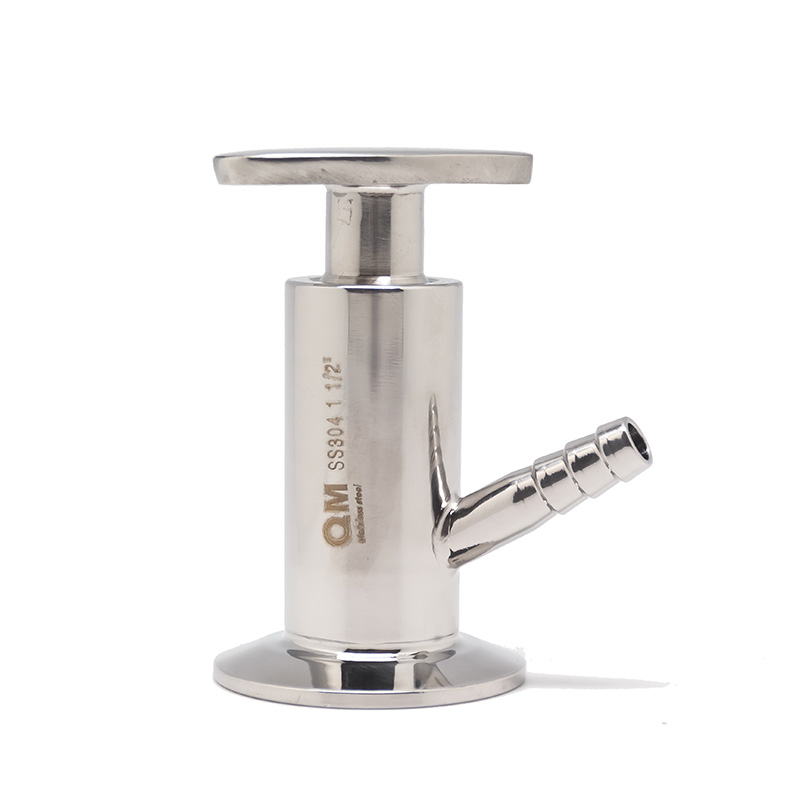

Diaphragm Type Sampling Valve SS304/SS316L Stainless Steel Weld/Clamp/Thread Sanitary Type Equipment.

Concept

VAM Diaphragm type Sampling Valve is a process line accessory to be used for clear or viscous liquid products. It is designed to meet the need to take samples from liquid process installations in the food, chemical, pharmaceutical, cosmetics and biotechnology industries as well as all other sectors requiring sanitary type equipment.

Operating Priciple

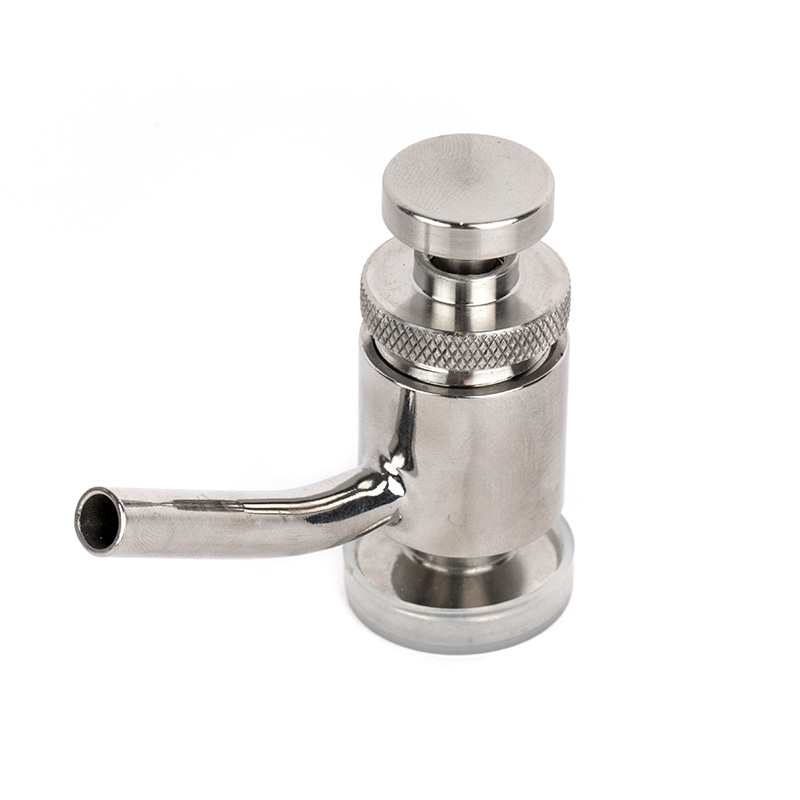

VAM Diaphragm type Sampling Valve is both reliable and easy to use. The sample is obtained by turning the control screw to detach the membrane from its seat so as to allow the fluid to enter the outlet pipe. It is designed to be flame sterilised. No tools are needed to maintain the valve, unscrewing the knurled mating head gives direct access to the membrane.

Material

Valve Body: SS304/SS316L

Membrane: EPDM per FDA 177.2600

Options

·Membrane material in EPDM, VMQ, FPM per FDA 177.2600

·Two smooth or threaded outlets for CIP sanitation or steam sterilisation.

Technical Data

Finish: Semi-bright

Max. operating pressure: 6Bar(87psi)

Working temperature range: -0°C to + 110°C.

Inlet Connection: Weld/ Tri clamp/ Thread

CLAMP DIAPHRAGM TYPE SAMPLING VALVEMODEL NO.: VAMO1C21050
