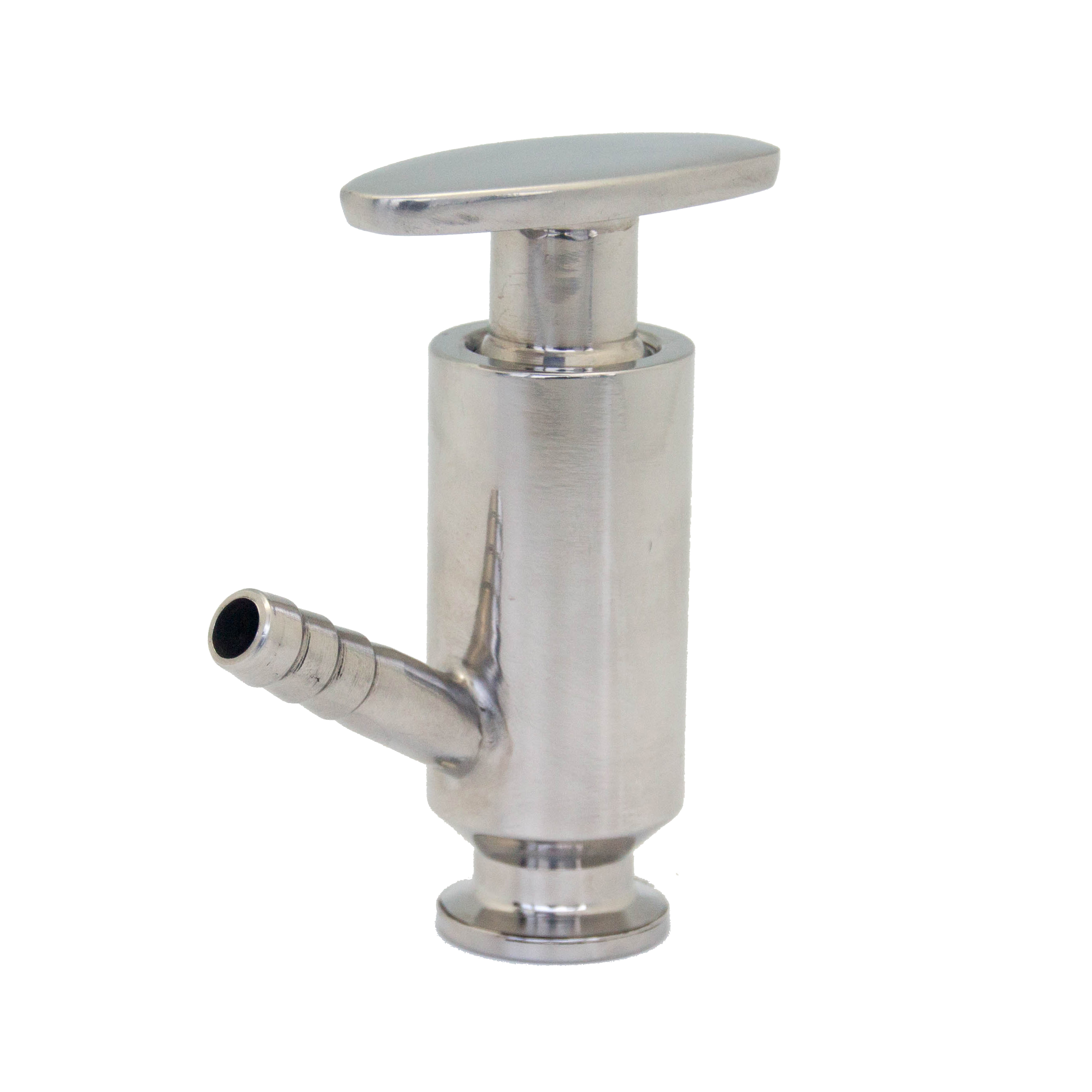

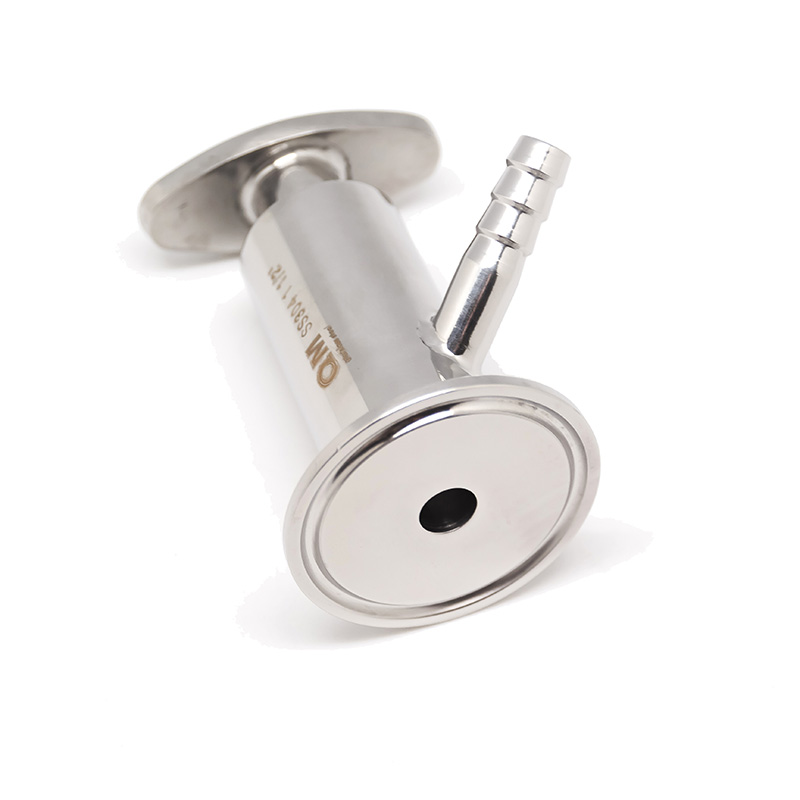

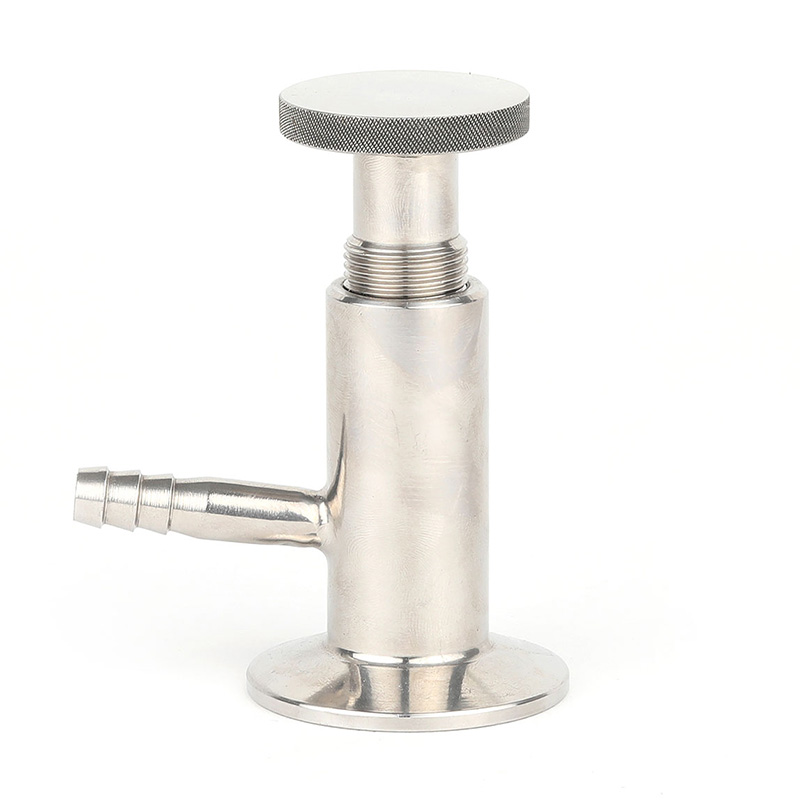

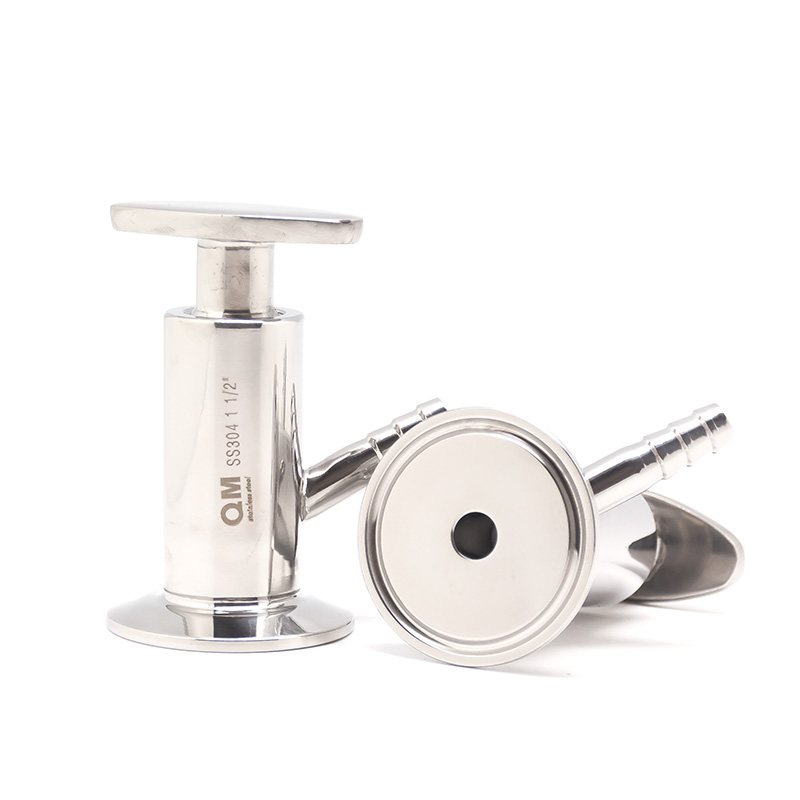

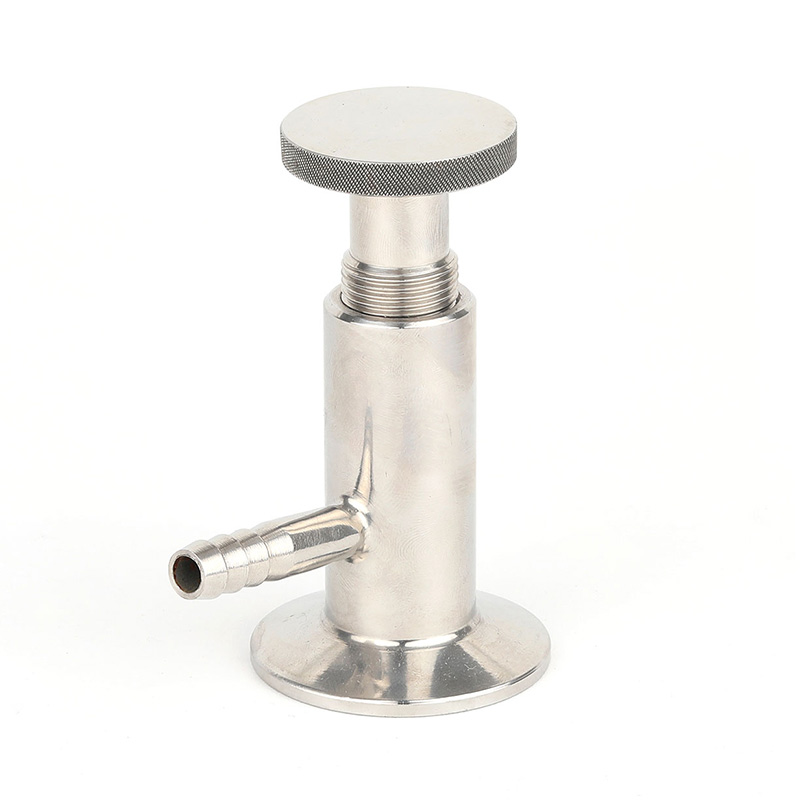

VSN Sampling Valve

VSN series Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains

Inquire Now PDF Datasheet

Application

VSN Sampling Valves are used in piping systems or on tanks for sampling. It is used for low viscosity materials, such as water, beer, wine, fluid milk and so on.

It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

Material

Body: AISI-304 or AISI-316L

Seal: PTFE

Valve seat and gasket  comply with FDA 21CFR177.2600

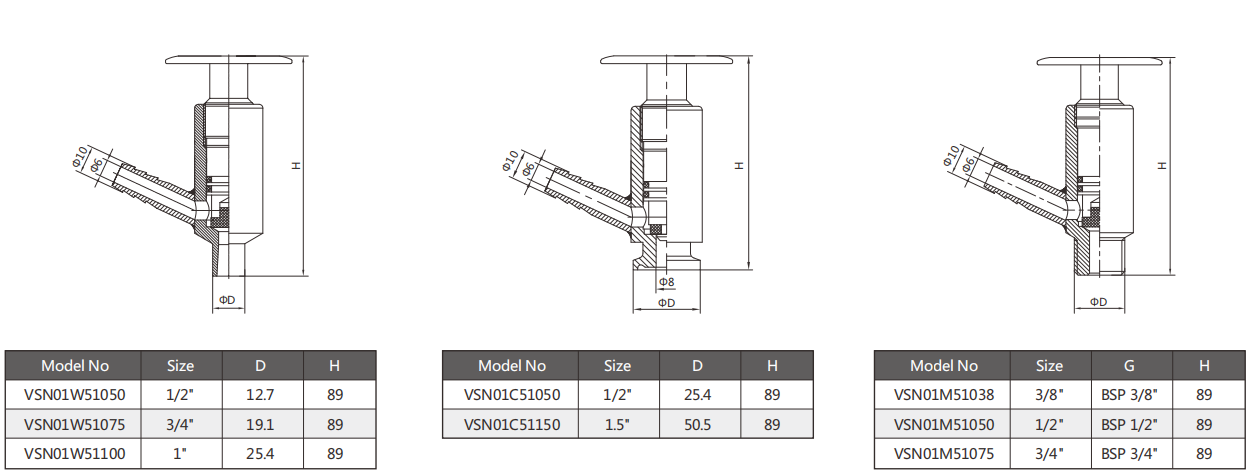

Standard Design

Available Size: 1/4"-1"

End connection: weld, triclamp or thread

Handle: Elliptic type hand

Technical Specification

Max. pressure: 10bar (145psi)

Temperature range: 50 ~ 248°F (-10 ~ 120°C)

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
