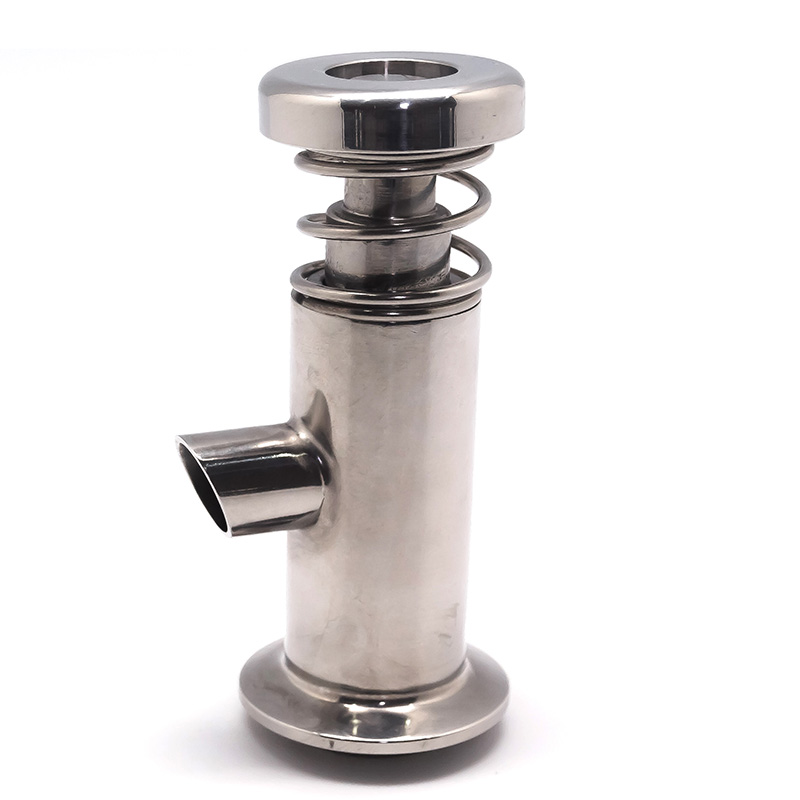

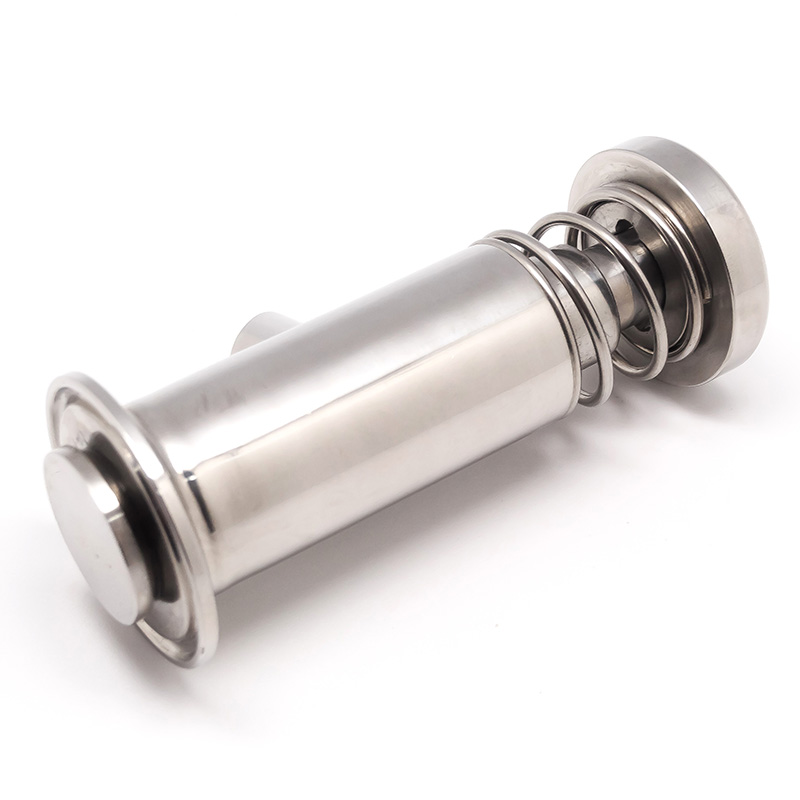

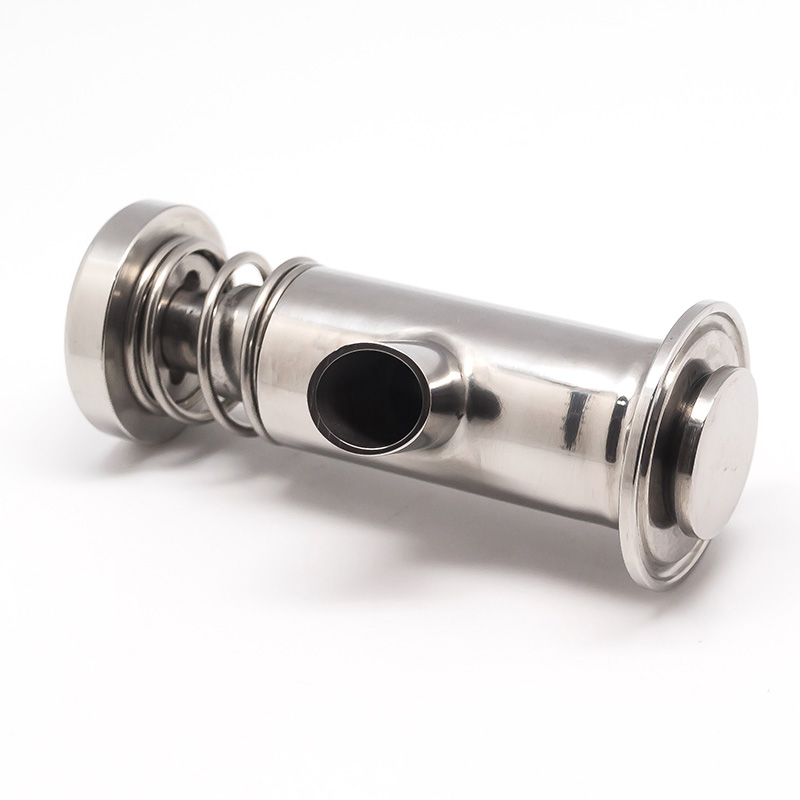

InquireVSY Yogurt sampling valves are used to treat high viscosity materials, such as yoghourt, syrup, ice cream, etc. The valve is normally closed design, it will open when pushing the handle and will return to nominal close position automatically by spring
Body: AISI-304 or AISI-316L
Seal: PTFE
Valve seat and gasket comply with FDA 21CFR177.2600
Available Size: 1/4"-1"
End connection: triclamp
Opening inside of equipment to avoid opening by accident
Max. pressure: 10bar (145psi)
Temperature range: 50 ~ 248°F (-10 ~ 120°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Concept VAM Diaphragm type Sampling Valve is a process line accessory to be used for clear or viscous liq...
InquireVSN series Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assemble...

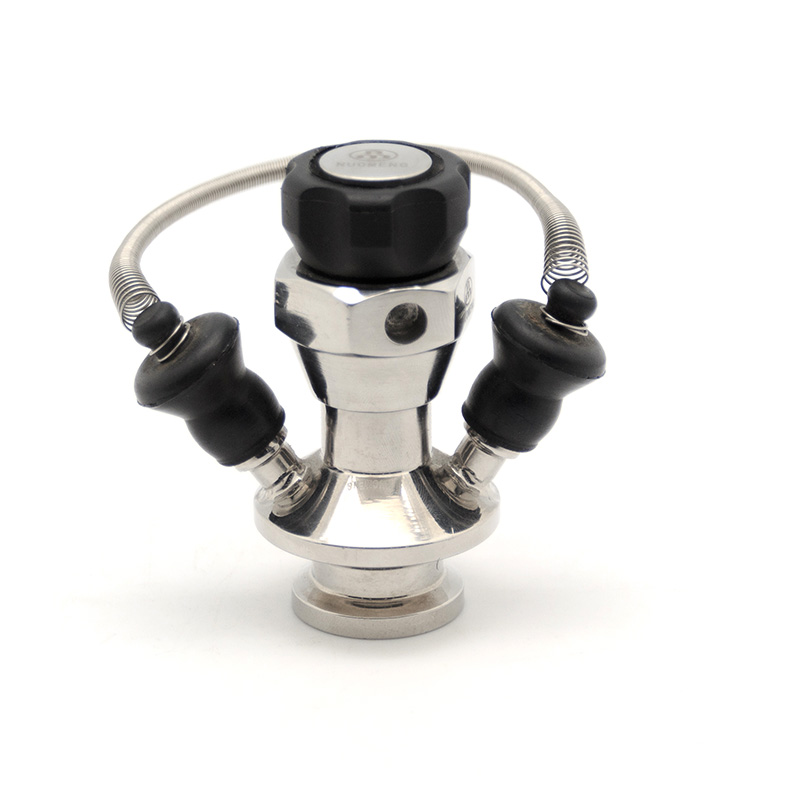

InquireVSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with a...

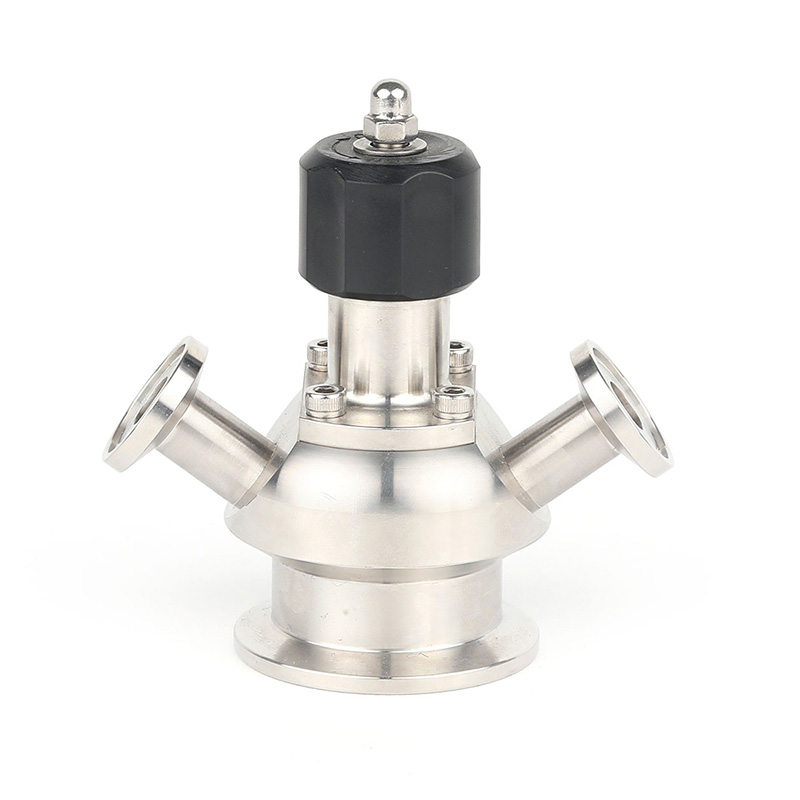

InquireVSC series Aseptic Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be ...
InquireOn July 20th, our 8th anniversary group building event. Gratitude for eight years, building the future together, and creating brilliance again.

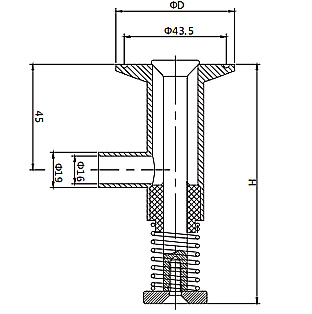

Size Flange OD Tube IDTube OD Inch mm 1/2"0.984250.370 9.40.500 12.70 3/4"0.984250.620 15.750.750 19.05 1"1.98450.50.870 22.11.000 25.40 11/2"1.98450.51.370 34.81.500 38.10 2"2.516641.870 47.5
