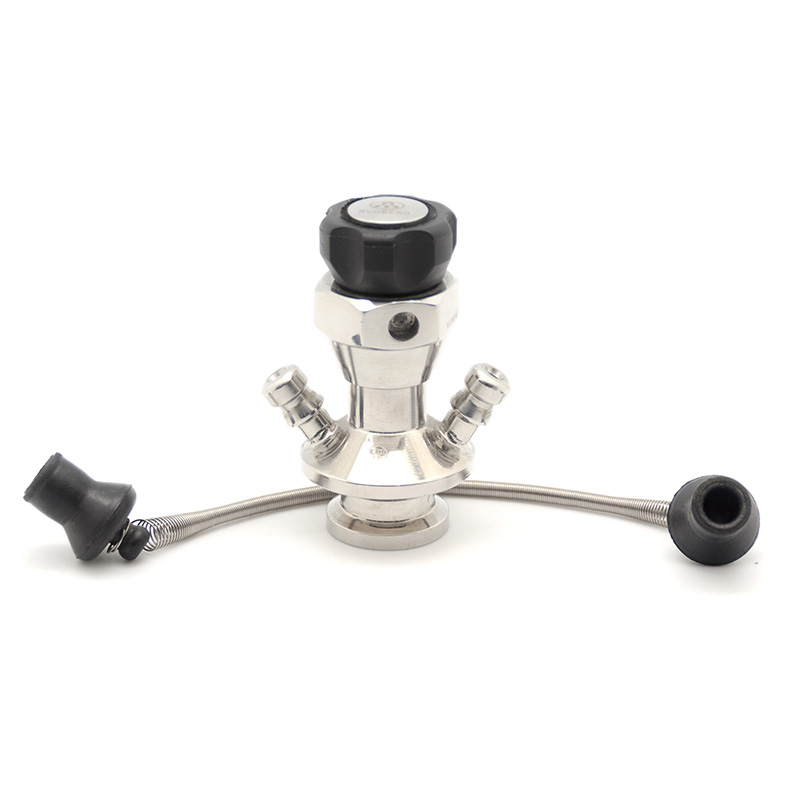

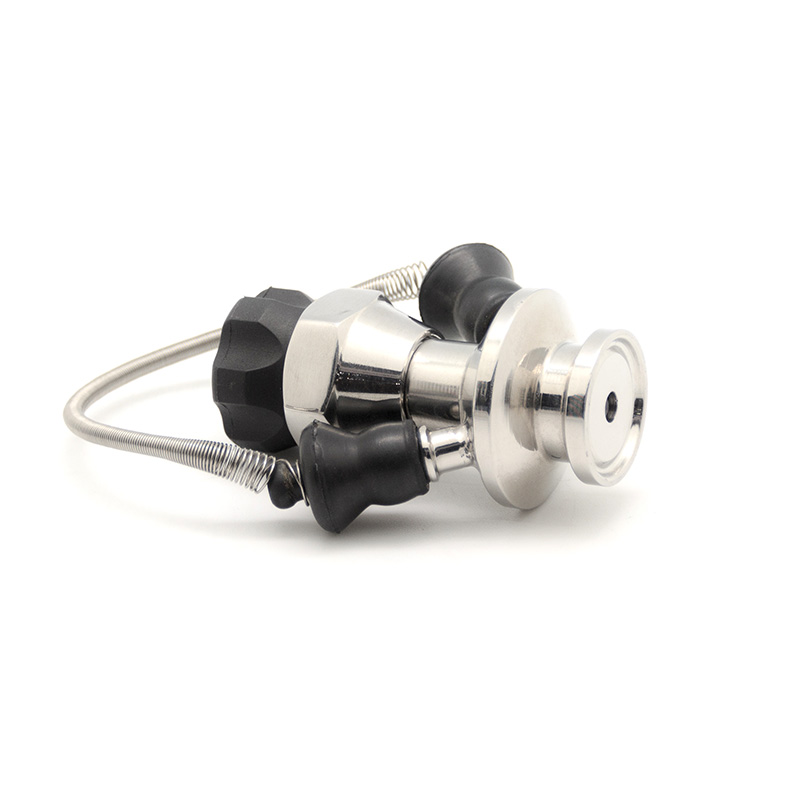

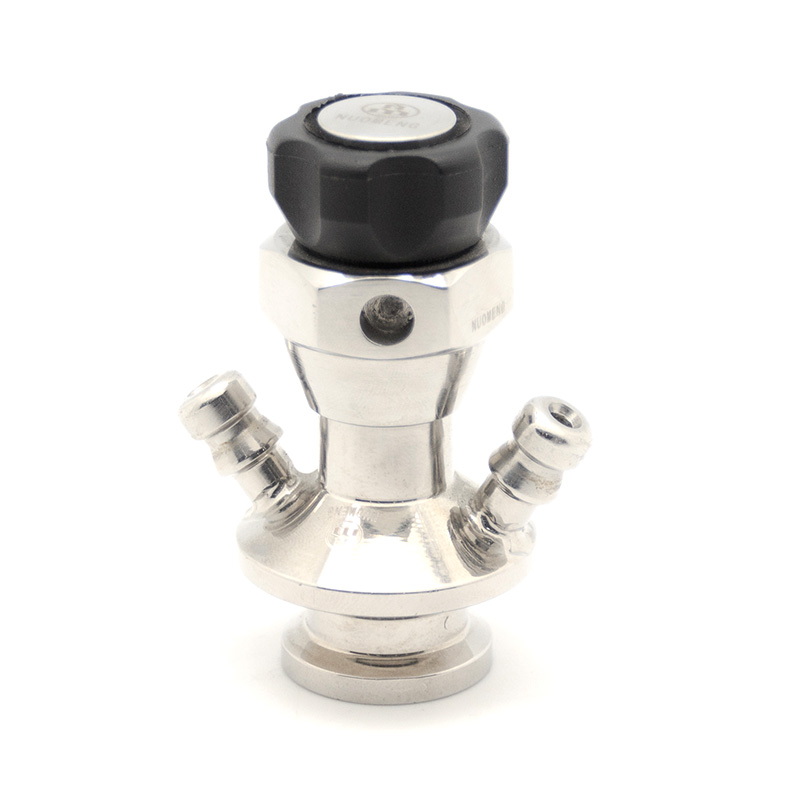

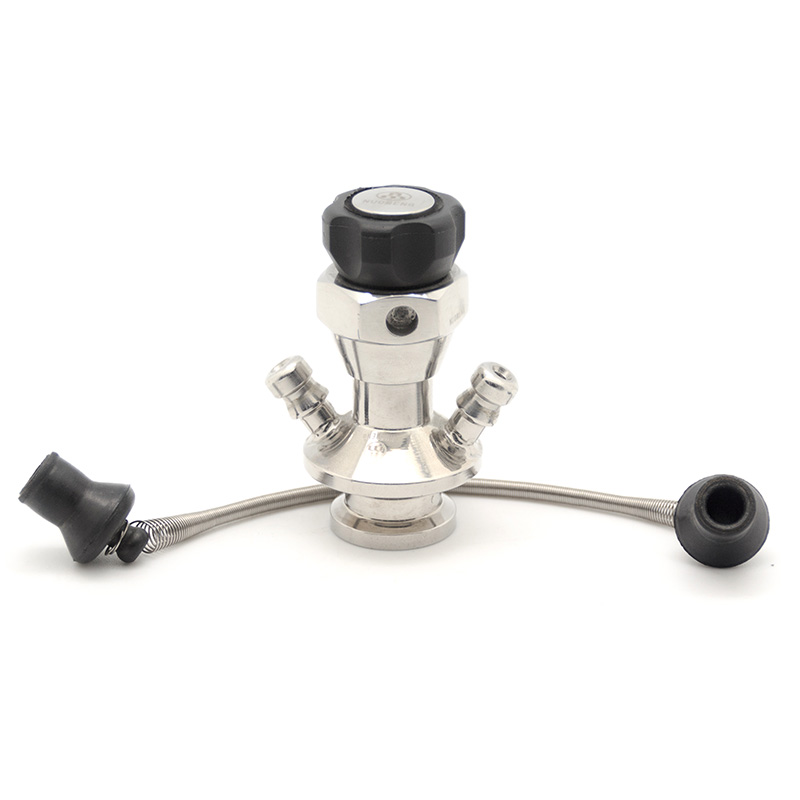

VSA Aseptic Sampling Valve

VSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter.

Inquire Now PDF Datasheet

Application

VSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter.

Such as Unprocessed Milk,Medical solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more.

Material

Body: AISI-304 or AISI-316L

Head: AISI-304 or AISI-316L

Seal: EPDM or PTFE

Valve seat and gasket  comply with FDA 21CFR177.2600

Standard Design

Available Size: 1/2" or 1"

End connection: triclamp or weld

Technical Specification

Max. pressure: 10bar (145psi)

Temperature range: EPDM 32 ~ 266°F (0 ~ 130°C)

Temperature range: PTFE 32 ~ 302°F (0 ~ 150°C)

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
