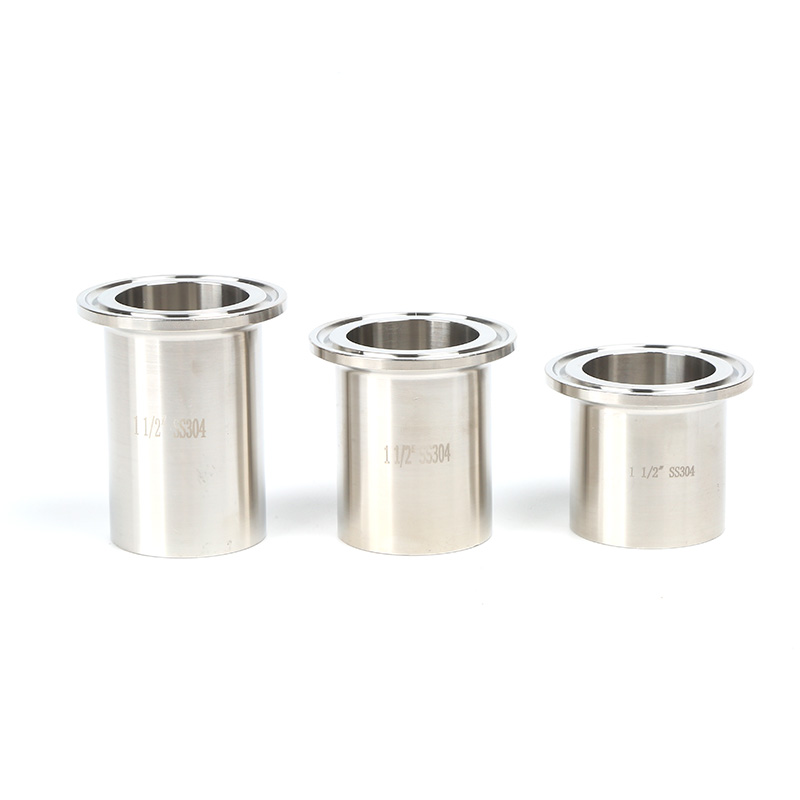

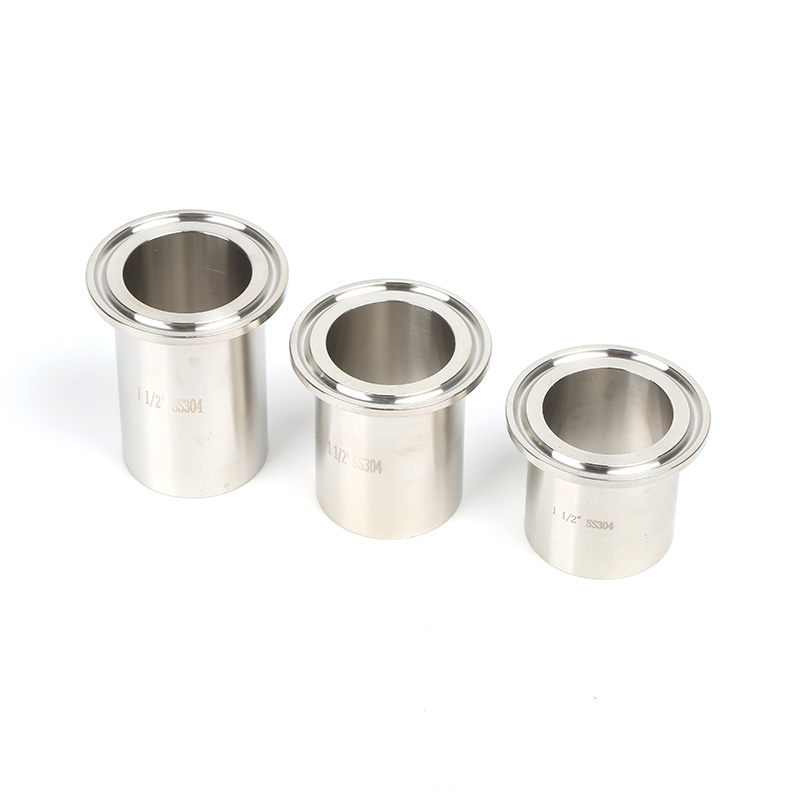

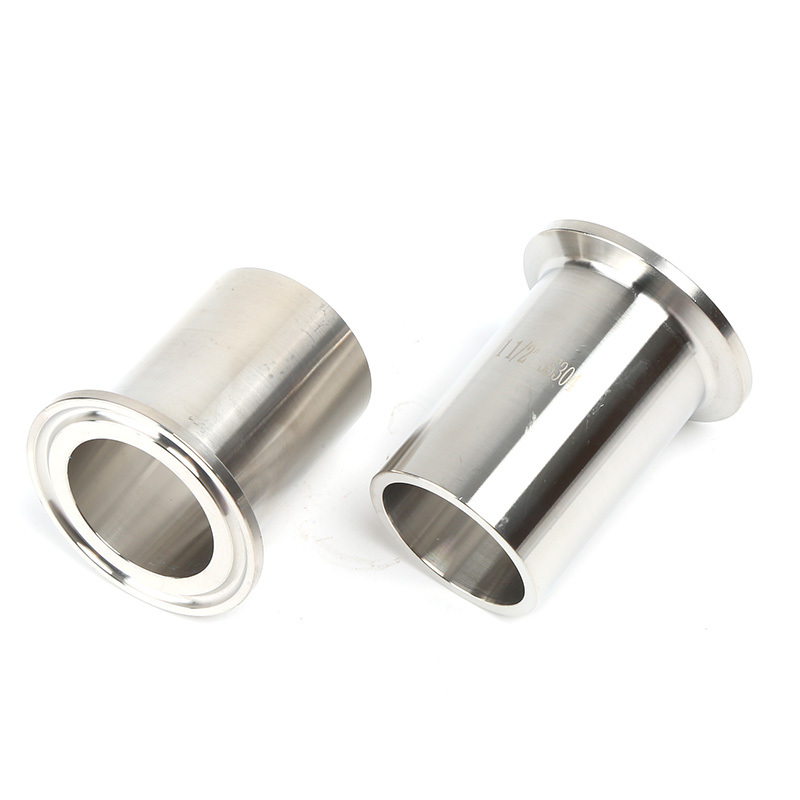

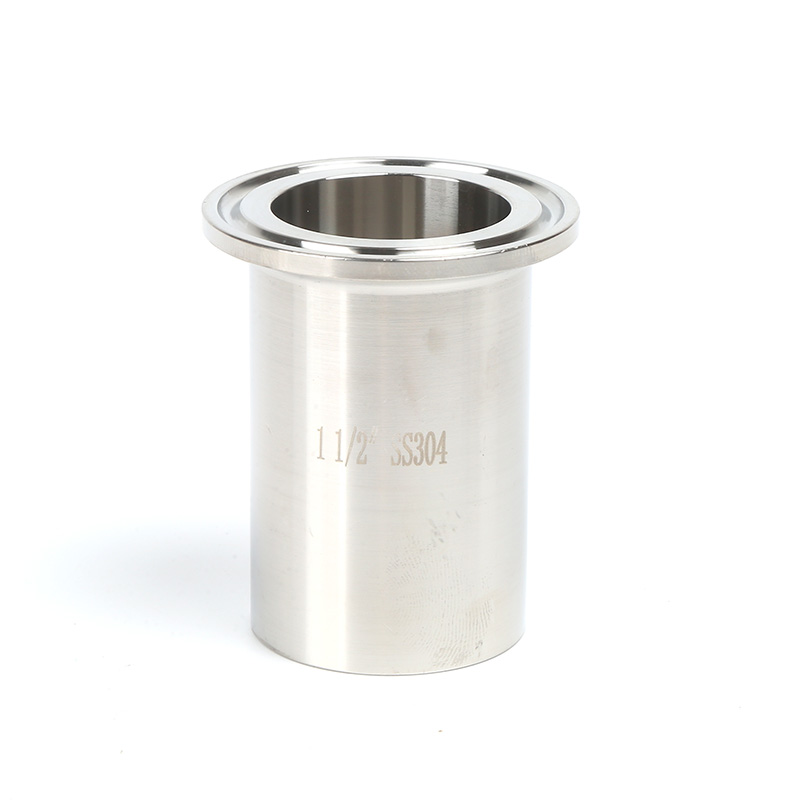

Tank Ferrule (Heavy Duty) 14MPW SS304 SS316L Stainless Steel Sanitary Tri Clamp/Weld Customized CNC Pipe Fitting

Name: Tank Ferrule (Heavy Duty) 14MPW SS304 SS316L Stainless Steel Sanitary Tri Clamp/Weld Customized CNC Pipe Fitting
Brand: QIMING
SKU: 01239
Rating: 4.9 (670 reviews)

Model No.:FLW04

SKU:FLW04

Size.:

Material:

Inquire PDF Datasheet

Description

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200

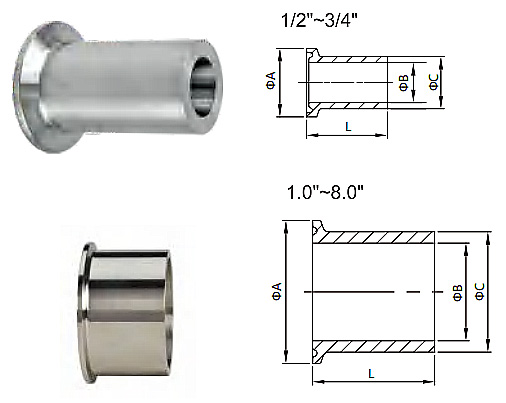

Detailed specifications on the drawing label

Tank Ferrule (Heavy Duty) 14MPW

Model for 304	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
FLW041050	1/2"	25.2	8.15	12.75	38.1	72.6
FLW041075	3/4"	25.2	14.6	19.05	38.1	63.5
FLW041100	1"	50.5	22.1	29.5	41.3	140.6
FLW041150	11/2"	50.5	34.8	42.7	41.3	163.3
FLW041200	2"	64	47.5	55.6	44.5	249.5
FLW041250	21/2"	77.5	60.2	68.8	44.5	322.0
FLW041300	3"	91	72.9	81.8	46.1	421.8
FLW041400	4"	119	97.4	108.2	54	775.6
FLW041600	6"	166.8	166.8	157.2	63.5	1378.9
FLW041800	8"	217.7	197.05	208	63.5	1551.3
