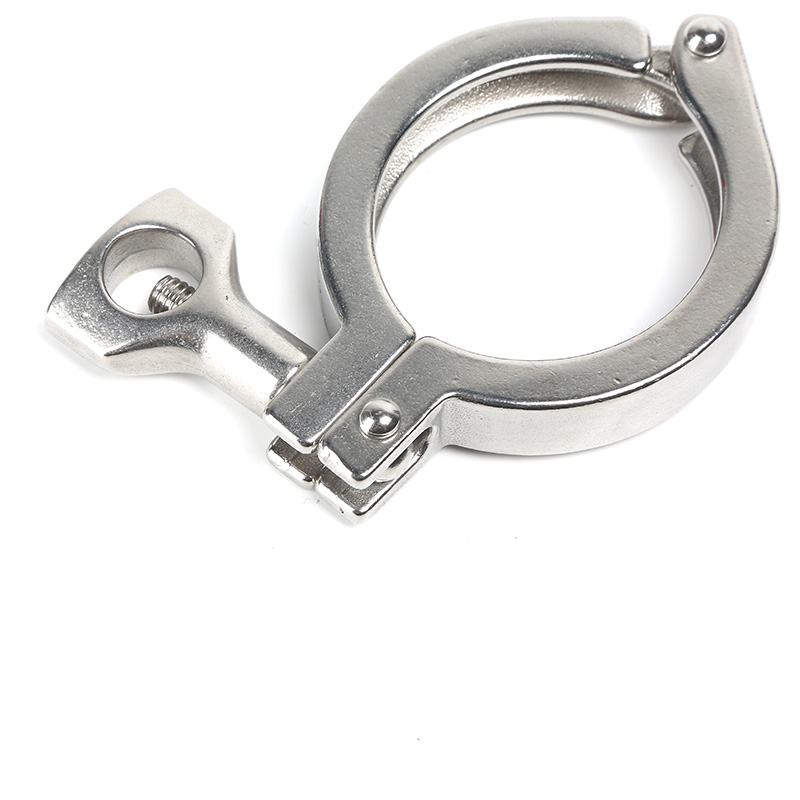

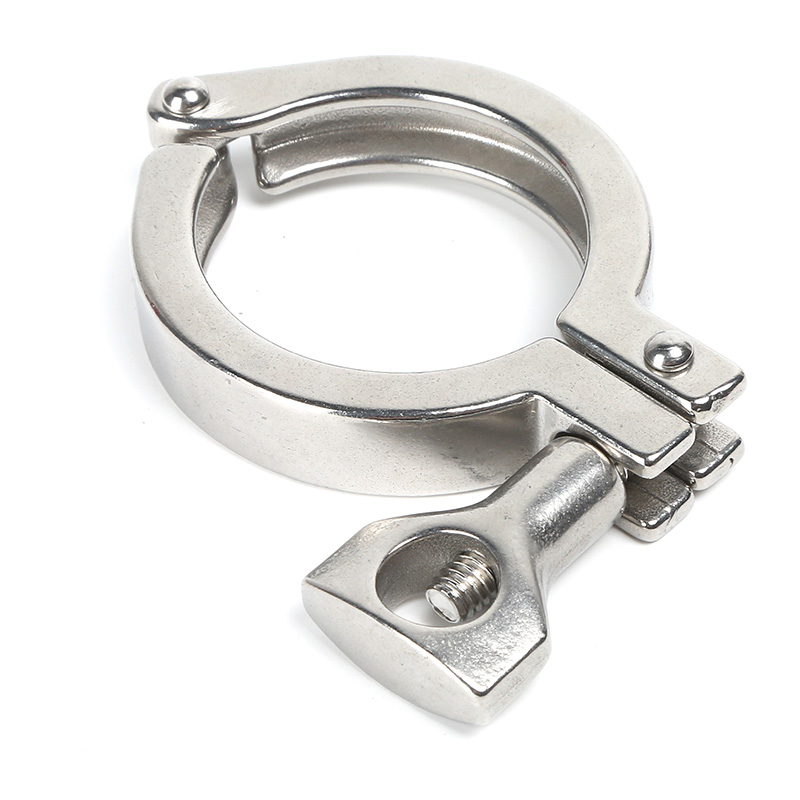

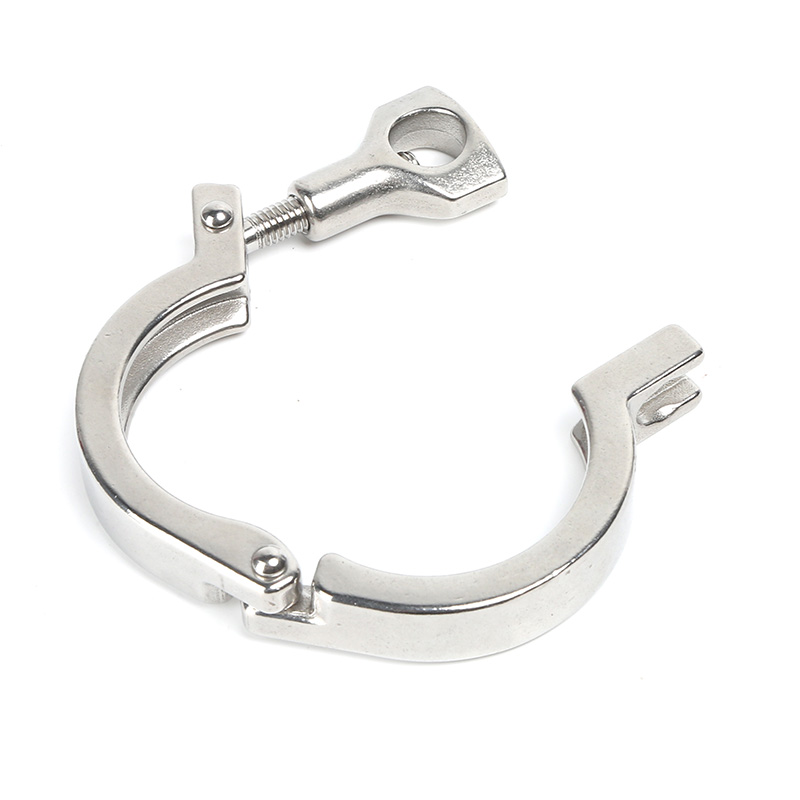

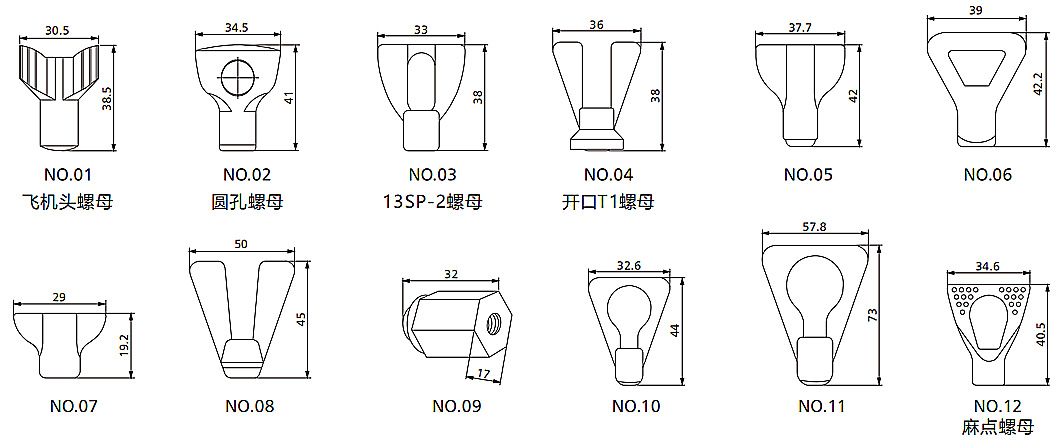

13MHHM Heavy Duty Clamp 3A/DIN32676 SS304 Stainless Steel Sanitary Aircraft Nose/Round Hole Nut Clamp Fitting

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

• Body: AISI-304, 316L

Standard Design

• Size available: 1/2"-8" or DN10-DN200

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

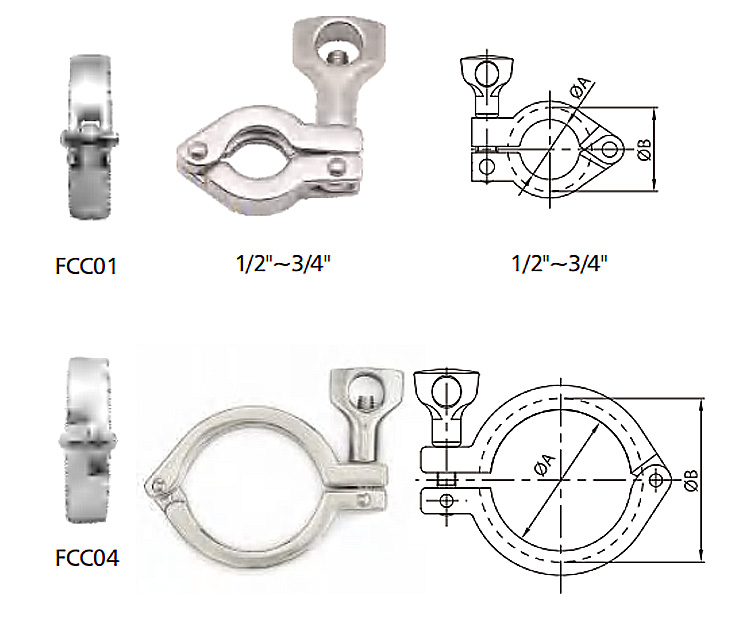

Detailed specifications on the drawing label

13MHHM Heavy Duty Clamp

	Model		Size		A/mm	B/mm	For FerrulE Frange OD	N.W./g
			3A	DIN32676				FCCC01		FCCC04
	FCC011075	FCC041075	1/2"-3/4"	/	21.2	28.2	25.2	146	160
	FCC012020	FCC042020	/	DN10-DN20	27.8	37	34	136	186
	FCC012025	FCC042025	/	/	35.8	43	40	144	N/A
	FCC011150	FCC041150	1"-1.5"	DN25-DN40	44.4	53.6	50.5	168	228
	FCC011200	FCC041200	2"	DN50	57.8	67	64	206	268
	FCC011250	FCC041250	2.5"	/	71.4	80.6	77.5	236	304
	FCC011300	FCC041300	3"	DN65	84	94.2	91	260	334
	FCC011350	FCC041350	3.5"	DN80	99	109.2	106	306	400
	FCC011400	FCC041400	4"	DN100	110	122.2	119	312	468
	FCC011450	FCC041450	4.5"	/	123	133.2	130	N/A	542
	FCC011500	FCC041500	5"	DN125	135.5	148	144.5	N/A	880
	FCC011550	FCC041550	φ140	/	145	159	155	N/A	840
	FCC011600	FCC041600	6"	DN150	155.4	170.4	167	N/A	914
	FCC011625	FCC041625	φ159	/	173	187	183	N/A	960
	FCC011800	FCC041800	8"	DN200	205	220	217.4	N/A	1392
	FCC011850	FCC041850	φ219	/	223	237	233	N/A	1343
	FCC0111000	FCC0411000	10”	DN250	258	272	268	N/A	2695
	FCC0111050	FCC0411050	10.5"	/	276	290	286	N/A	1626
	FCC0111200	FCC0411200	12"	DN300	307	323	319	N/A	2980
