13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp
13IU I-Line Bolted Clamp

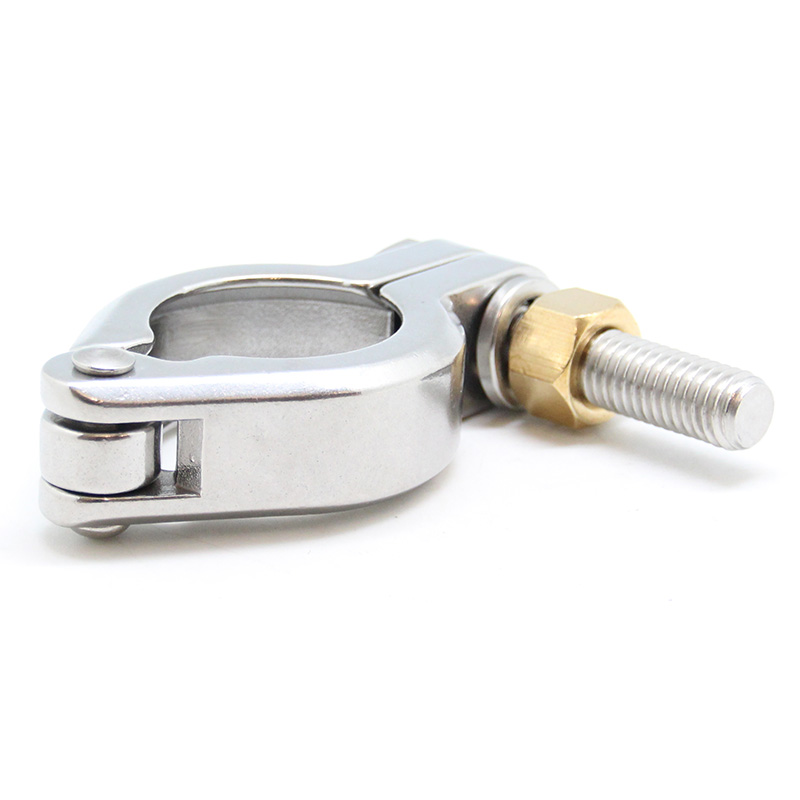

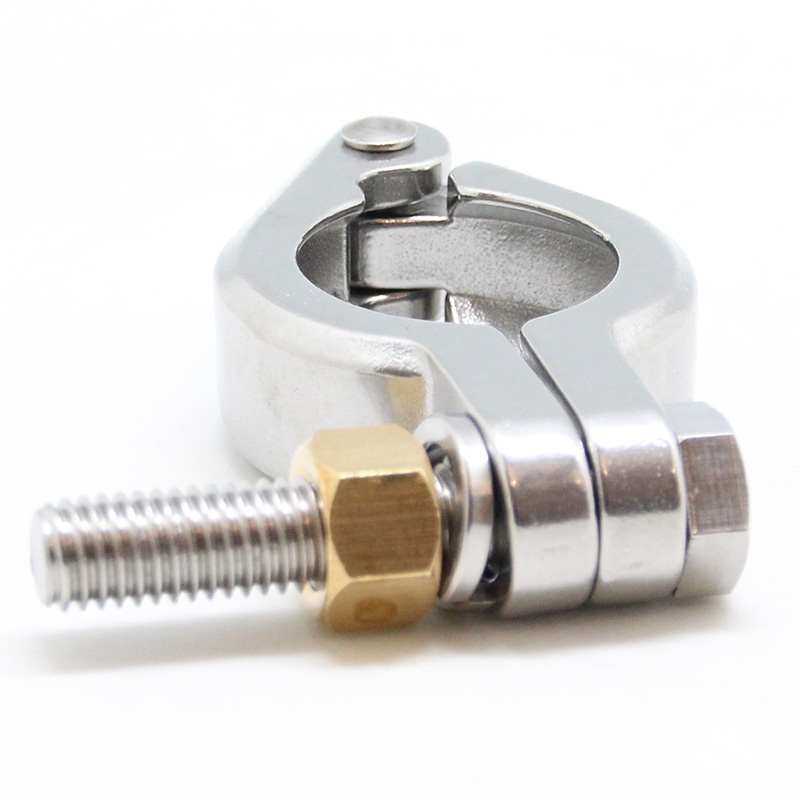

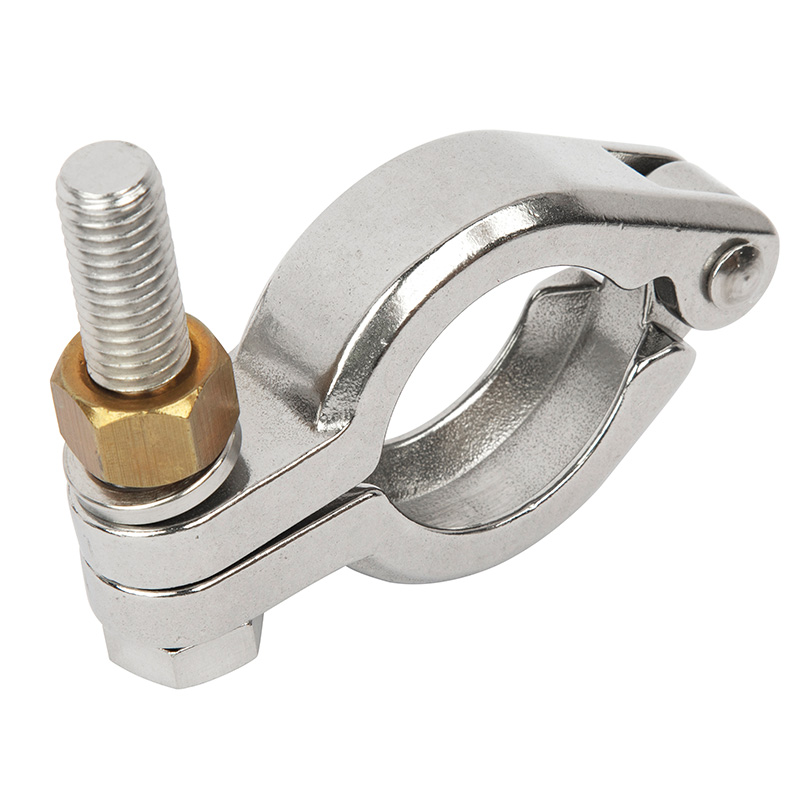

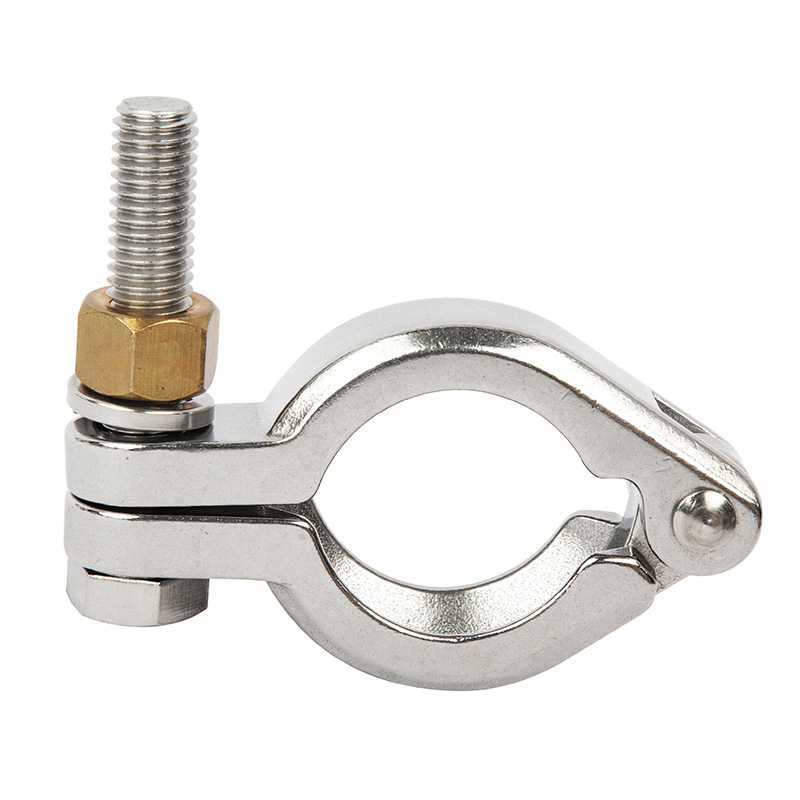

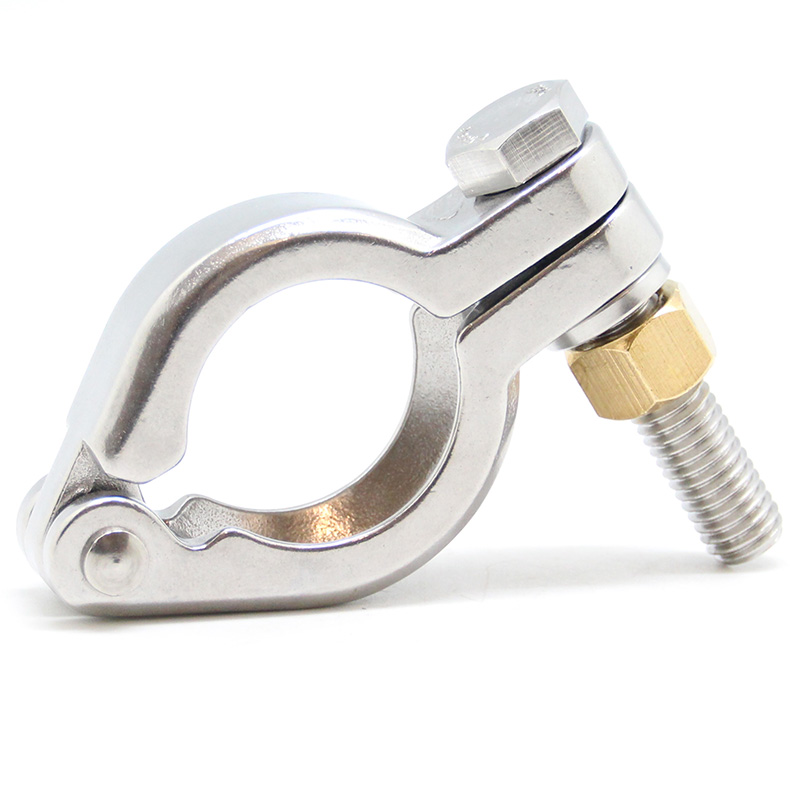

Sanitary 13IU I-Line Bolted Clamp SS304 Stainless Steel 1"-8" High Quality Clamp Fitting

Model No.:FCB01

SKU:FCB01

Size.:
3A 1"-1.5"
  • 3A 1"-1.5"
  • 3A 2"
  • 3A 2 1/2"
  • 3A 3"
  • 3A 4"
  • 3A 6"
  • 3A 8"
Material:
SS304
  • SS304
  • SS316L
Inquire PDF Datasheet

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

Detailed specifications on the drawing label

13IU I-Line Bolted Clamp

Model Size B/mm For FerrulE Frange OD N.W./g
FCB011150 1"-1.5" 54 50.42 362
FCB011200 2" 71.4 67.05 517
FCB011250 2.5" 88.9 84 842
FCB011300 3" 103.2 98.3 978
FCB011400 4" 127 123.7 1425
FCB011600 6" 195.3 190.37 1303
FCB011800 8" 246 241.17 2083
