Name: 13SF Double Pin Clamp Sanitary 3A/DIN32676 High Quality 1/2"-12" Clamp Pipe Fitting DN10-DN300
Brand: QIMING
SKU: 00360
Rating: 4.9 (230 reviews)

13SF Double Pin Clamp Sanitary 3A/DIN32676 High Quality 1/2"-12" Clamp Pipe Fitting DN10-DN300

Model No.:FCD01

SKU:FCD01

Size.:

Material:

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

Body: AISI-304, 316L

Standard Design

Size available: 1/2"-8" or DN10-DN200
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp

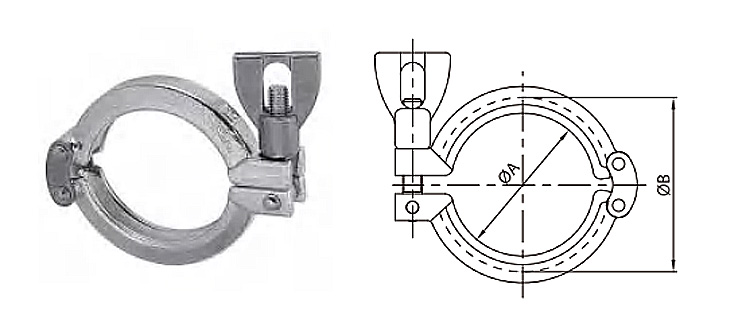

Detailed specifications on the drawing label

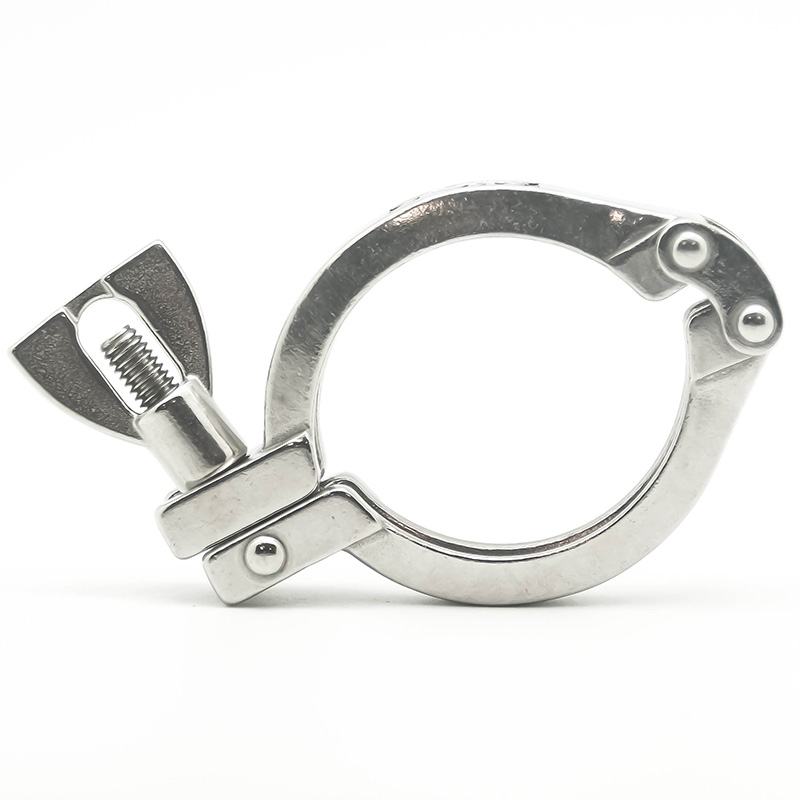

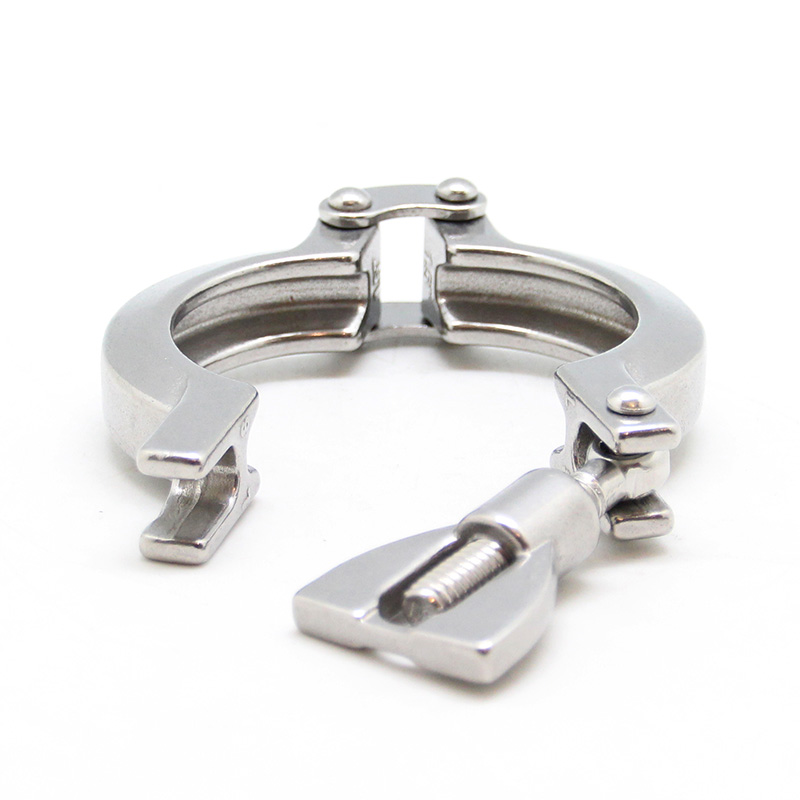

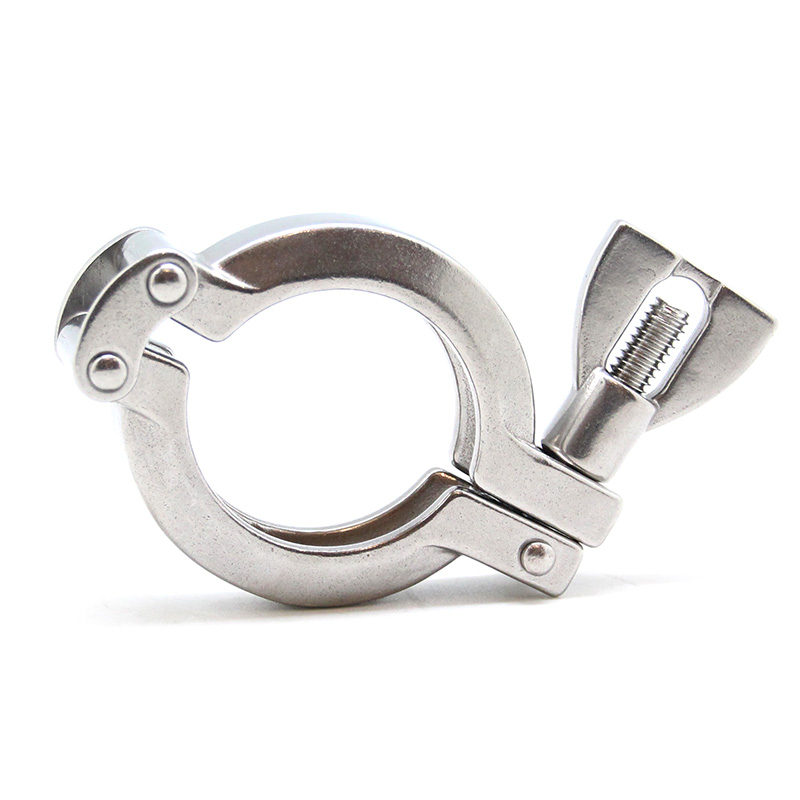

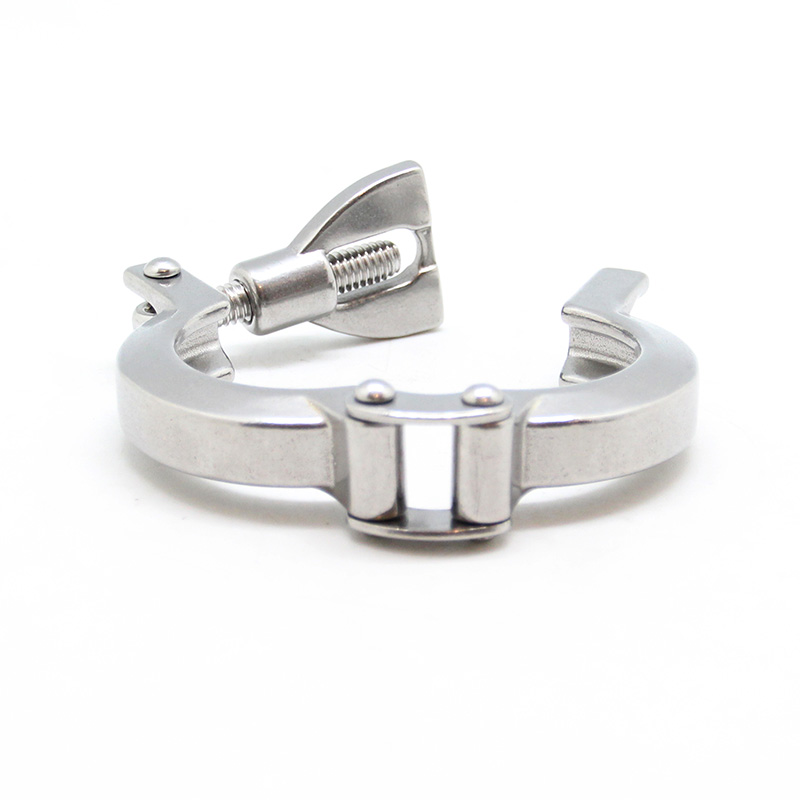

13SF Heavy Duty Double Pin Clamp

Model	Size		A/mm	B/mm	For FerrulE Frange OD	N.W./g
Model	3A	DIN32676	A/mm	B/mm	For FerrulE Frange OD	N.W./g
FCD011075	1/2"-3/4"	/	20	28.34	25.2	140
FCD012020	/	DN10-DN20	27.2	42.9	34	190
FCD011150	1"-1.5"	DN25-DN40	45	58.6	50.5	270
FCD011200	2"	DN50	549	72	64	330
FCD011250	2.5"	/	67	84	77.5	350
FCD011300	3"	DN65	85	98	91	360
FCD011350	3.5"	DN80	102	112.2	106	380
FCD011400	4"	DN100	114	127	119	430
FCD011450	4.5"	/	123	133.2	130	440
FCD011500	5"	DN115	135.5	148	144.5	680
FCD011550	φ140	/	145	159	155	990
FCD011600	6"	DN150	155.4	170.4	167	1010
FCD011625	φ159	/	173	187	183
FCD011800	8"	DN200	206	220	217.4	1340
FCD011850	φ219	/	223	237	233
FCD0111000	10"	DN250	258	272	268	1500
FCD0111200	12"	DN300	307	323	319	2120
