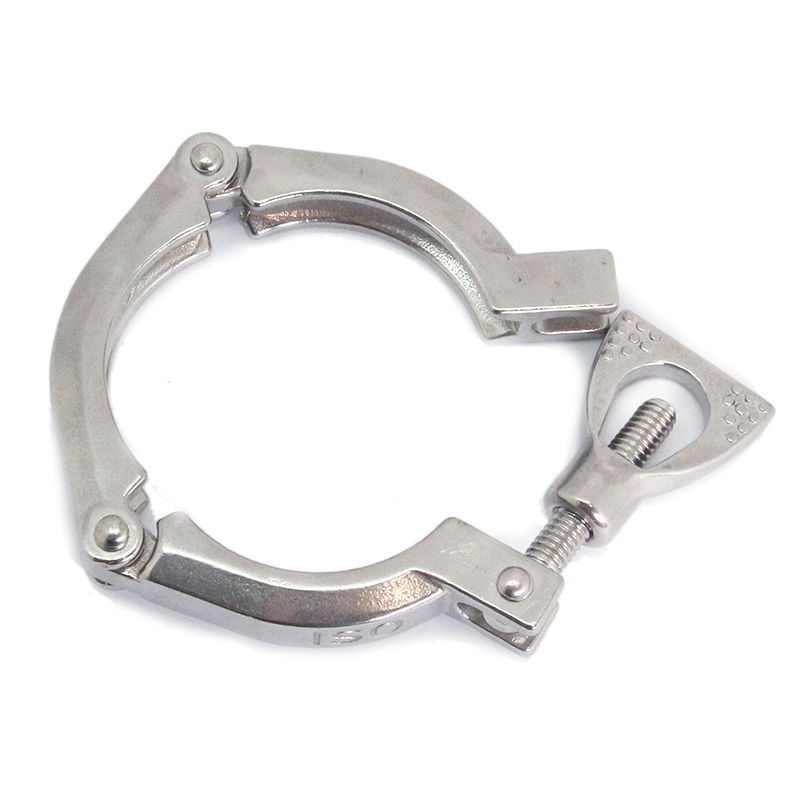

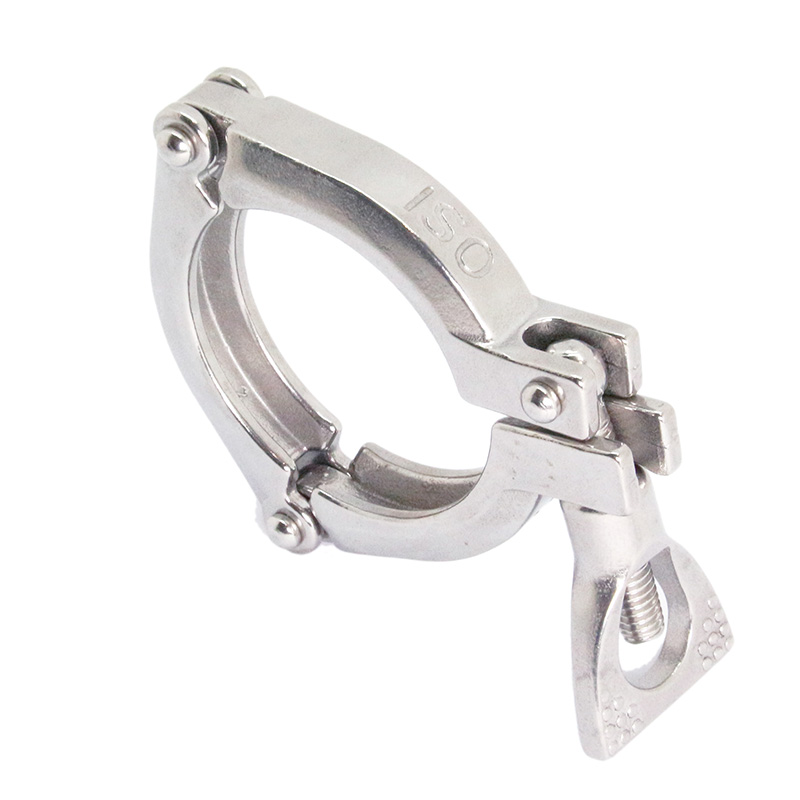

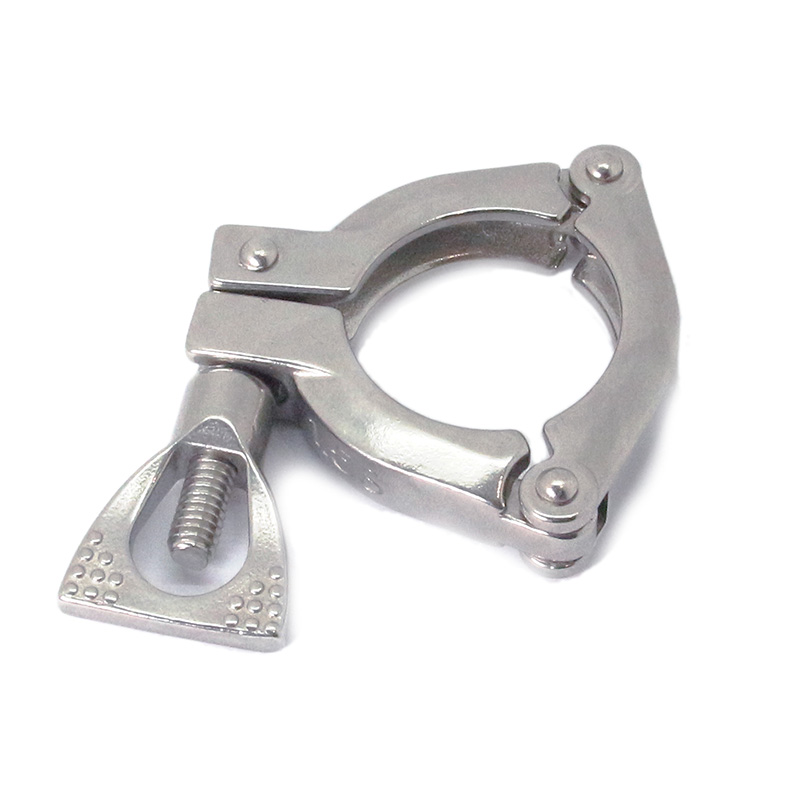

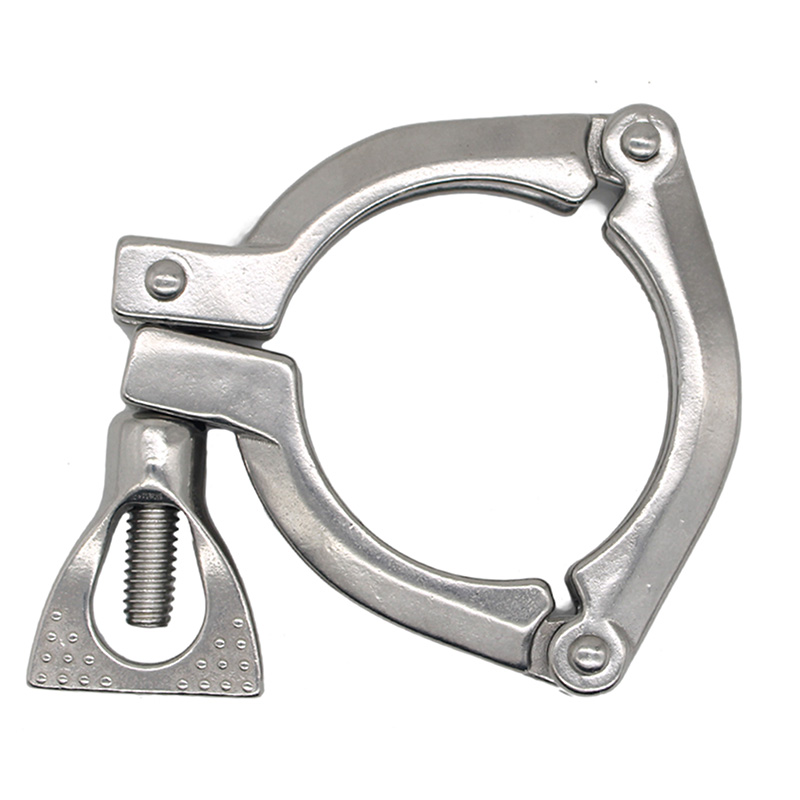

Sanitary 13 ISO-3P Heavy Duty Three Pieces Clamps
Sanitary 13 ISO-3P Heavy Duty Three Pieces Clamps
Sanitary 13 ISO-3P Heavy Duty Three Pieces Clamps
Sanitary 13 ISO-3P Heavy Duty Three Pieces Clamps

Sanitary 13 ISO-3P Heavy Duty Three Pieces Clamps

Model:FCT01

Inquire Now PDF Datasheet

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

Standard Design

  • Size available: 1/2"-8" or DN10-DN200

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

  • End connections: Weld or Tri-clamp

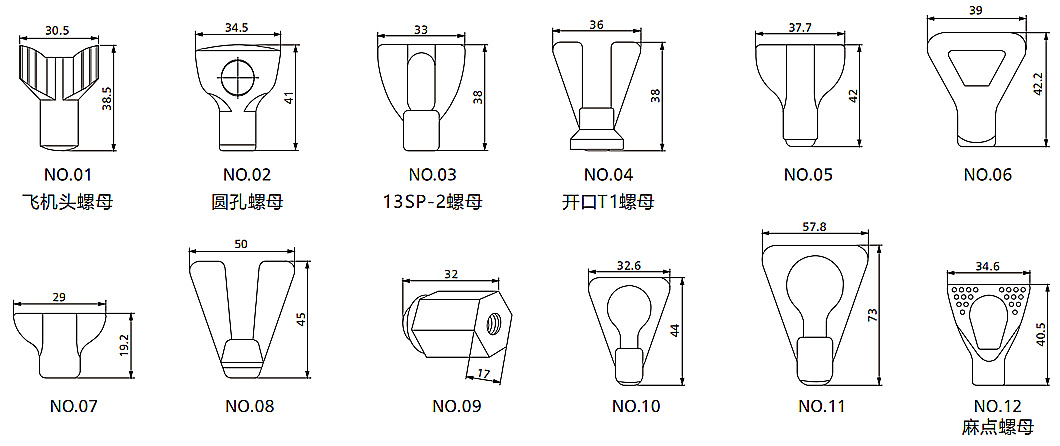

Detailed specifications on the drawing label

13 ISO-3P Heavy Duty Three Pieces Clamp

Model Size B/mm For Ferrule Flange OD N.W./g
3A DIN32676 JIS
FCT011150 1"-1.5" DN25-DN40 / 53 50.5 220
FCT011200 2" DN50 / 67 64 260
FCT011250 2.5" / / 80 77.5 290
FCT011300 3" DN65 / 94 91 330
FCT011350

3.5“

DN80 / 109 106 380
FCT011400 4" DN100 / 122 119 390
FCT011450

4.5"

/ / 158 155 840
FCT011500 5" DN125 / 148 145 533
FCT011550 ⌀140 / / 187 183 1020
FCT025125A / / 125A 188.3 185 1054
FCT011600 6“ DN150 / 170 167 950
FCT011625 ⌀159 / / 187 183 1020
FCT025150A / / 150A 188.3 185 1054
FCT011800 8" DN200 / 221

217.4

1200
FCT011850 ⌀219 / / 237 233 1230
FCT025200A / / 200A 244 240 1332
FCT0111000 10" DN250 / 272 268 2300
FCT0111050 10.5" / / 290 286 2480
FCT025250A / / 250A 300 296 2400
FCT0111200 12" DN300 / 323 319 2750
FCT0111300 13" / / 356 350*5.6 3100
FCT025300A / / 300A 356 350*6.5 2767
FCT0111400 ⌀350 / / 386 380
FCT0111500 ⌀380 / / 406 400
FCT0111600 ⌀400 / / 436 430
FCT0111700 ⌀430 / / 456 450
FCT0111800 ⌀450 / / 486 480
FCT0111900 ⌀480 / / 506 500
FCT0112000 ⌀500 / / 536 530
FCT0112400 ⌀600 / / 638 630
