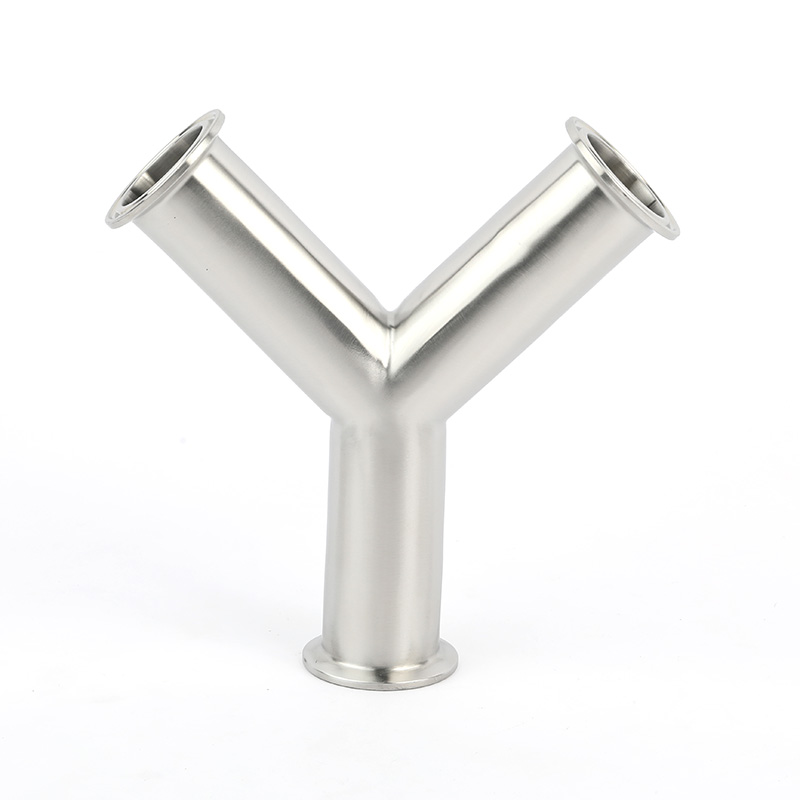

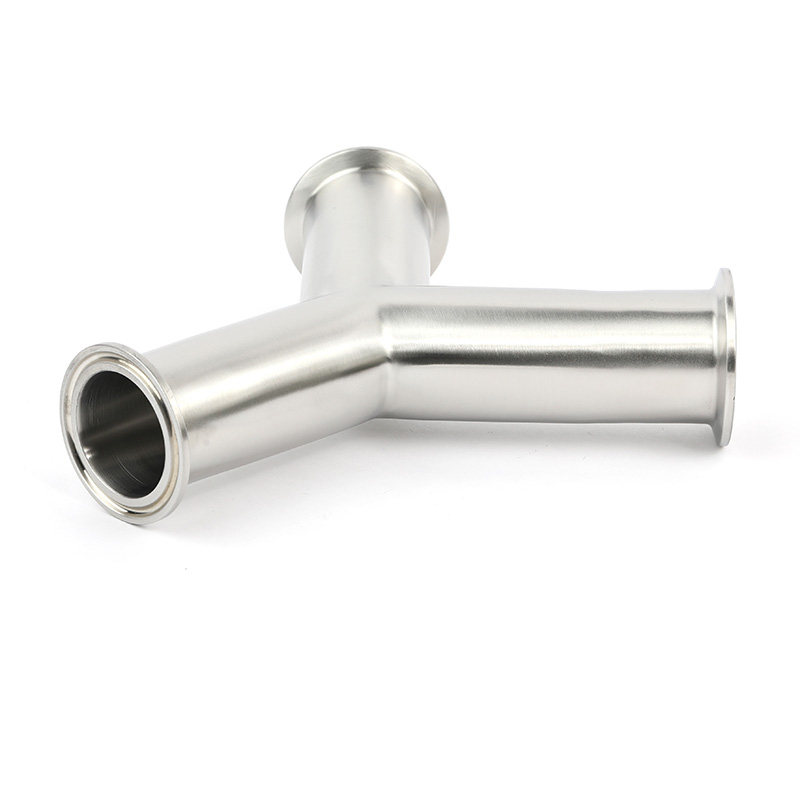

3A Sanitary 28BMP Clamp True Y-type Tee SS304/SS316L Clamp Fittings for Food 3A True Y-type Tee Stainless Steel

Application

Sanitary Clamp Fittings are most popular for easy assembly are breakdown of process lines and equipment. QM Stainless offers clamp fittings in SS304 and SS316L materials in size from 1/2" to 8", with kinds of fittings standards, such as DIN, SMS, ISO/IDF, bS-RJT, DS and others.

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

28BMP Clamp True Y

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FYC011050	1/2"	12.7	60.9	60.9	1.65
	FYC011075	3/4"	19.05	59.6	59.6	1.65
	FYC011100	1"	25.4	63.5	74.6	1.65
	FYC011150	11/2"	38.1	63.5	74.6	1.65
	FYC011200	2"	50.8	79.4	95.3	1.65
	FYC011250	21/2"	63.5	98.3	117.5	1.65
	FYC011300	3"	76.2	114.3	136.5	1.65
	FYC011400	4"	101.6	152.5	152.5	2.11
	FYC011600	6"	152.4	193.1	193.0	2.77

28WB True Y

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FYW011050	1/2"	12.7	48.2	48.2	1.65
	FYW011075	3/4"	19.05	46.9	46.9	1.65
	FYW011100	1"	25.4	50.8	50.8	1.65
	FYW011150	11/2"	38.1	50.8	50.8	1.65
	FYW011200	2"	50.8	66.7	66.7	1.65
	FYW011250	21/2"	63.5	85.6	85.6	1.65
	FYW011300	3"	76.2	101.6	101.6	1.65
	FYW011400	4"	101.6	136.6	136.6	2.11
	FYW011600	6"	152.4	171.6	171.6	2.77
