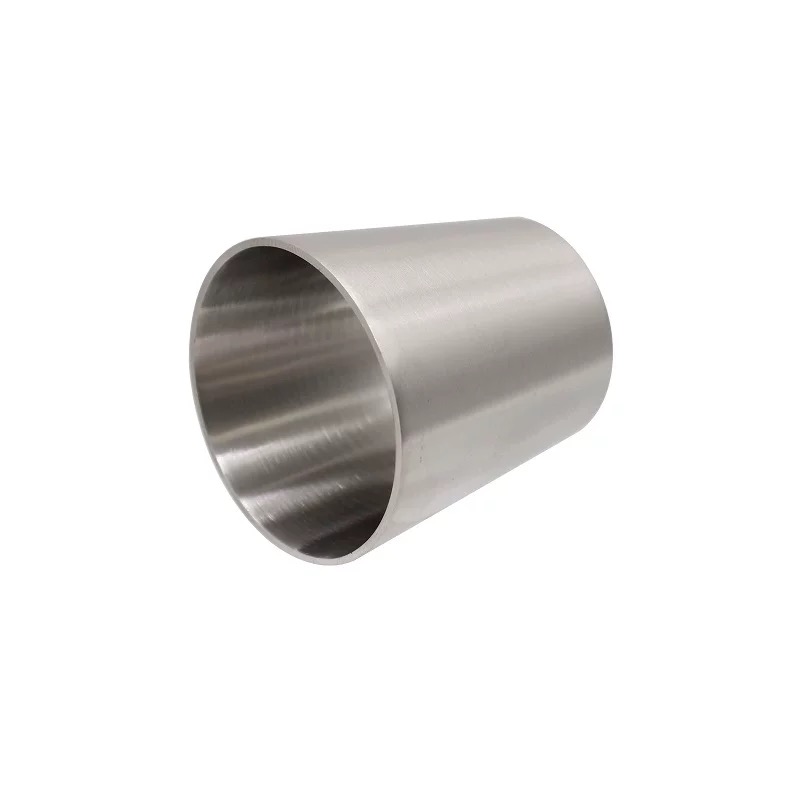

3A Reducer Sanitary Weld Reducer Stainless Steel SS304/SS316L Concentric/Eccentric 3A Fittings

Model No.:FR

SKU:FR

End Connections:

Reducer Type:

Size.:

Materials:

Finishing:

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

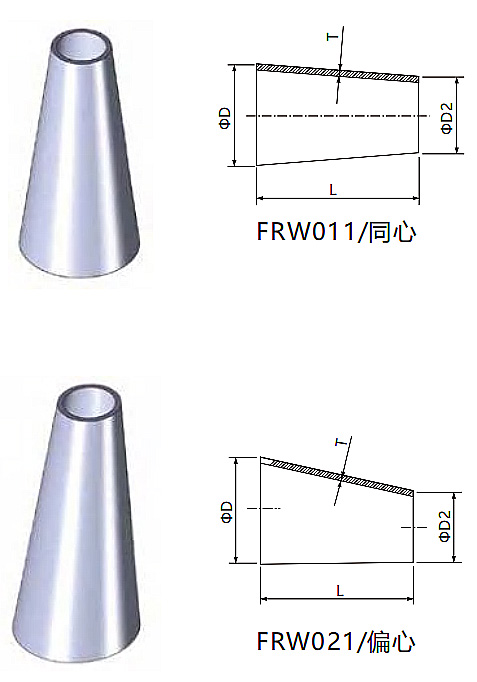

3A Reducer Short

Mode		Size	D/mm	D2/mm	L/mm	T/mm	N.W/g
Concentric	Eccentric	Size	D/mm	D2/mm	L/mm	T/mm	Concentric	Eccentric
FRW011075050	FRW021075050	3/4"x1/2"	19.05	12.7	25.4	1.65x1.65	18
FRW011100150	FRW021100150	1"x1/2"	25.4	12.7	50.8	1.65x1.65	27
FRW011100075	FRW021100075	1"x3/4"	25.4	19.05	25.4	1.65x1.65	23
FRW011150050	FRW021150050	11/2"x1/2"	38.1	12.7	101.6	1.65x1.65	108
FRW011150075	FRW021150075	11/2"x3/4"	38.1	19.05	76.2	1.65x1.65	100
FRW011150100	FRW021150100	11/2"x1"	38.1	25.4	50.8	1.65x1.65	75
FRW011200150	FRW021200150	2"x1/2"	50.8	12.7	152.4	1.65x1.65
FRW011200075	FRW021200075	2"x3/4"	50.8	19.05	127	1.65x1.65
FRW011200100	FRW021200100	2"x1"	50.8	25.4	101.6	1.65x1.65	165
FRW011200150	FRW021200150	2"x11/2"	50.8	38.1	50.8	1.65x1.65	100
FRW011250100	FRW021250100	21/2"x1"	63.5	25.4	152.4	1.65x1.65	300
FRW011250150	FRW021250150	21/2"x11/2"	63.5	38.1	101.6	1.65x1.65	240
FRW011250200	FRW021250200	21/2"x2"	63.5	50.8	50.8	1.65x1.65	130
FRW011300100	FRW021300100	3"x1"	76.2	25.4	203.2	1.65x1.65
FRW011300150	FRW021300150	3"x11/2"	76.2	38.1	152.4	1.65x1.65	390
FRW011300200	FRW021300200	3"x2"	76.2	50.8	101.6	1.65x1.65	290
FRW011300250	FRW021300250	3"x21/2"	76.2	63.5	50.8	1.65x1.65	160
FRW011400100	FRW021400100	4"x1"	101.6	25.4	304.8	2.11x1.65
FRW011400150	FRW021400150	4"x11/2"	101.6	38.1	254	2.11x1.65	840
FRW011400200	FRW021400200	4"x2"	101.6	50.8	203.2	2.11x1.65	725
FRW011400250	FRW021400250	4"x21/2"	101.6	63.5	152	2.11x1.65	610
FRW011400300	FRW021400300	4"x3"	101.6	76.2	101.6	2.11x1.65	455
FRW011600200	FRW021600200	6"X2"	152.4	50.8	139.7	2.77x1.65	680
FRW011600250	FRW021600250	6"X2.5"	152.4	76.2	139.7	2.77x1.65
FRW011600300	FRW021600300	6"x3"	152.4	76.2	139.7	2.77x1.65	725
FRW011600400	FRW021600400	6"x4"	152.4	101.6	139.7	2.77x2.1	560

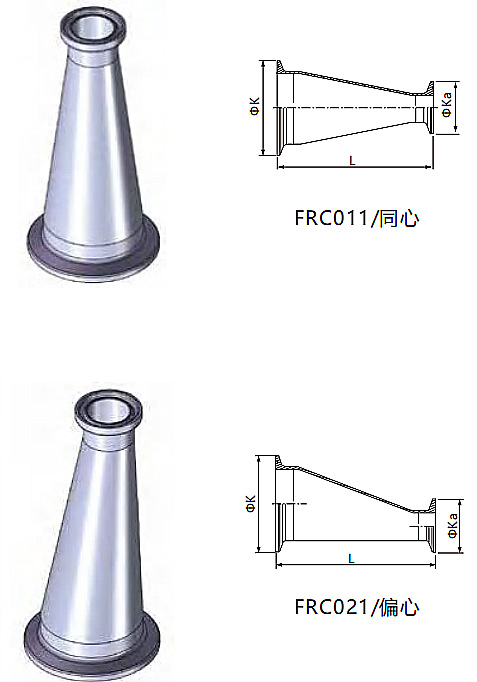

3A Clamp Reducer

Mode		Size	K/mm	K2/mm	L/mm	N.W/g
Concentric	Eccentric	Size	K/mm	K2/mm	L/mm	Concentric	Eccentric
FRC011075050	FRC021075050	3/4"x1/2"	25.2	25.2	50.8	45
FRC011100150	FRC021100150	1"x1/2"	50.5	25.2	76.2	105
FRC011100075	FRC021100075	1"x3/4"	50.5	25.2	50.8	108
FRC011150050	FRC021150050	11/2"x1/2"	50.5	25.2	127	163
FRC011150075	FRC021150075	11/2"x3/4"	50.5	25.2	101.6	163
FRC011150100	FRC021150100	11/2"x1"	50.5	25.2	76.2	190
FRC011200150	FRC021200150	2"x1/2"	64	25.2	177.8
FRC011200075	FRC021200075	2"x3/4"	64	25.2	152.4
FRC011200100	FRC021200100	2"x1"	64	50.5	127	320
FRC011200150	FRC021200150	2"x11/2"	64	50.5	76.2	180
FRC011250100	FRC021250100	21/2"x1"	77.5	50.5	177.8	430
FRC011250150	FRC021250150	21/2"x11/2"	77.5	50.5	127	360
FRC011250200	FRC021250200	21/2"x2"	77.5	64	76.2	250
FRC011300100	FRC021300100	3"x1"	91	50.5	228.6
FRC011300150	FRC021300150	3"x11/2"	91	50.5	277.8	515
FRC011300200	FRC021300200	3"x2"	91	64	127	460
FRC011300250	FRC021300250	3"x21/2"	91	77.5	76.2	340
FRC011400100	FRC021400100	4"x1"	119	50.5	333.4
FRC011400150	FRC021400150	4"x11/2"	119	50.5	282.6	1200
FRC011400200	FRC021400200	4"x2"	119	64	231.8	1100
FRC011400250	FRC021400250	4"x21/2"	119	77.5	181	920
FRC011400300	FRC021400300	4"x3"	119	91	130.2	780
FRC011600200	FRC021600200	6"X2"	167	64	173.9
FRC011600250	FRC021600250	6"X2.5"	167	77.5	173.9
FRC011600300	FRC021600300	6"x3"	167	91	173.9	1250
FRC011600400	FRC021600400	6"x4"	167	119	177.1	1180
