Sanitary Clamp Fittings are the most popular fittings because of the easy assembly. QM Stainless offers clamp fittings in SS304 and SS316L materials in size from 1/2" to 8", with kinds of fittings standards, such as DIN, SMS, ISO/IDF, bS-RJT, DS and others.
Body Materials: AISI 304 or AISI 316L
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
Size available: 1/2"-8" or DN10-DN200

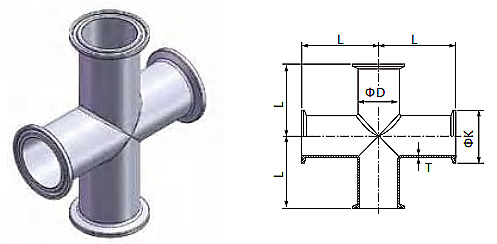

9WP Clamp Cross
 |
Model No | Size | D/mm | K/mm | L/mm | T/mm | N.W/g. |
| FXC021050 | 1/2" | 12.7 | 25.2 | 60.3 | 1.65 | 200 | |
| FXC021075 | 3/4" | 19.05 | 25.2 | 60.3 | 1.65 | 200 | |
| FXC021100 | 1" | 25.4 | 50.5 | 60.3 | 1.65 | 415 | |
| FXC021150 | 11/2" | 38.1 | 50.5 | 69.9 | 1.65 | 435 | |
| FXC021200 | 2" | 50.8 | 64 | 88.9 | 1.65 | 700 | |
| FXC021250 | 21/2" | 63.5 | 77.5 | 88.9 | 1.65 | 815 | |
| FXC021300 | 3" | 76.2 | 91 | 95.3 | 1.65 | 1100 | |
| FXC021400 | 4" | 101.6 | 119 | 114.3 | 2.11 | 1880 | |
| FXC021600 | 6" | 152.4 | 167 | 164.4 | 2.77 |
2WWWW Cross Short
 |
Model No | Size | D/mm | L/mm | T/mm | N.W/g. |
| FXW011050 | 1/2" | 12.7 | 19.05 | 1.65 | ||
| FXW011075 | 3/4" | 19.05 | 28.5 | 1.65 | ||
| FXW011100 | 1" | 25.4 | 38.1 | 1.65 | ||
| FXW011150 | 11/2" | 38.1 | 57.2 | 1.65 | ||
| FXW011200 | 2" | 50.8 | 76.2 | 1.65 | ||
| FXW011250 | 21/2" | 63.5 | 95.3 | 1.65 | ||
| FXW011300 | 3" | 76.2 | 114.3 | 1.65 | ||
| FXW011400 | 4" | 101.6 | 152.4 | 2.11 | ||
| FXW011600 | 6" | 152.4 | 228.6 | 2.77 |
2WL Cross Short
 |
Model No | Size | D/mm | L/mm | T/mm | N.W/g. |
| FXW021050 | 1/2" | 12.7 | 47.6 | 1.65 | 68 | |
| FXW021075 | 3/4" | 19.05 | 47.6 | 1.65 | 127 | |
| FXW021100 | 1" | 25.4 | 47.6 | 1.65 | 150 | |
| FXW021150 | 11/2" | 38.1 | 57.2 | 1.65 | 270 | |
| FXW021200 | 2" | 50.8 | 76.2 | 1.65 | 470 | |
| FXW021250 | 21/2" | 63.5 | 76.2 | 1.65 | 535 | |
| FXW021300 | 3" | 76.2 | 82.6 | 1.65 | 700 | |
| FXW021400 | 4" | 101.6 | 98.4 | 2.11 | 1300 | |
| FXW021600 | 6" | 152.4 | 142.9 | 2.77 |
