3A 2WCL/2S/2WK/2KS/2WU Elbow Sanitary Weld Elbow Stainless Steel SS304/SS316L 45° Elbow/90° Elbow/180° Elbow 3A Fittings

Model No.:FE

SKU:FE

End Connections:

Elbow Type:

Size.:

Materials:

Finishing:

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

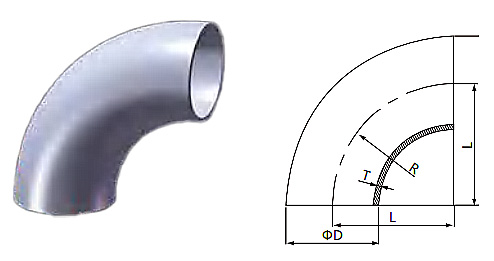

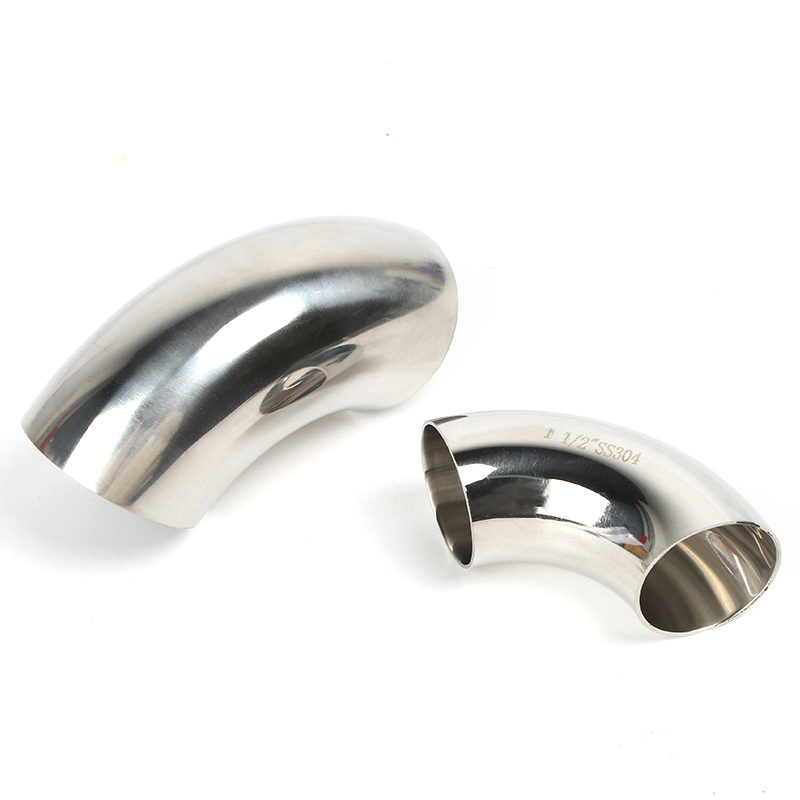

2WCL 90° Elbow Short Tangent

Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
FEW011050	1/2"	12.7	19.05	19.05	1.65	12
FEW011075	3/4"	19.05	28.5	28.5	1.65	32
FEW011100	1"	25.4	38.1	38.1	1.65	60
FEW011125	11/4"	31.8	47.7	47.7	1.65	120
FEW011150	11/2"	38.1	57.2	57.2	1.65	130
FEW011200	2"	50.8	76.2	76.2	1.65	220
FEW011250	21/2"	63.5	95.3	95.3	1.65	340
FEW011300	3"	76.2	114.3	114.3	1.65	530
FEW011400	4"	101.6	152.4	152.4	2.11	1200
FEW011600	6"	152.4	228.6	228.6	2.77	3650
FEW011800	8"	203.2	304.8	304.8	3.05	6450
FEW0111000	10"	254	381	381	3.05
FEW0111200	12"	304.8	457.2	457.2	3.05

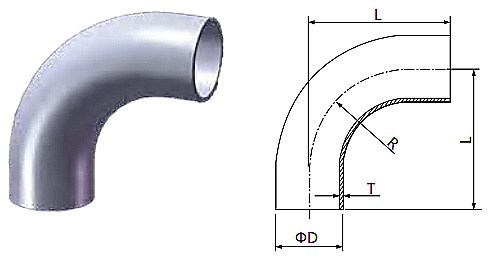

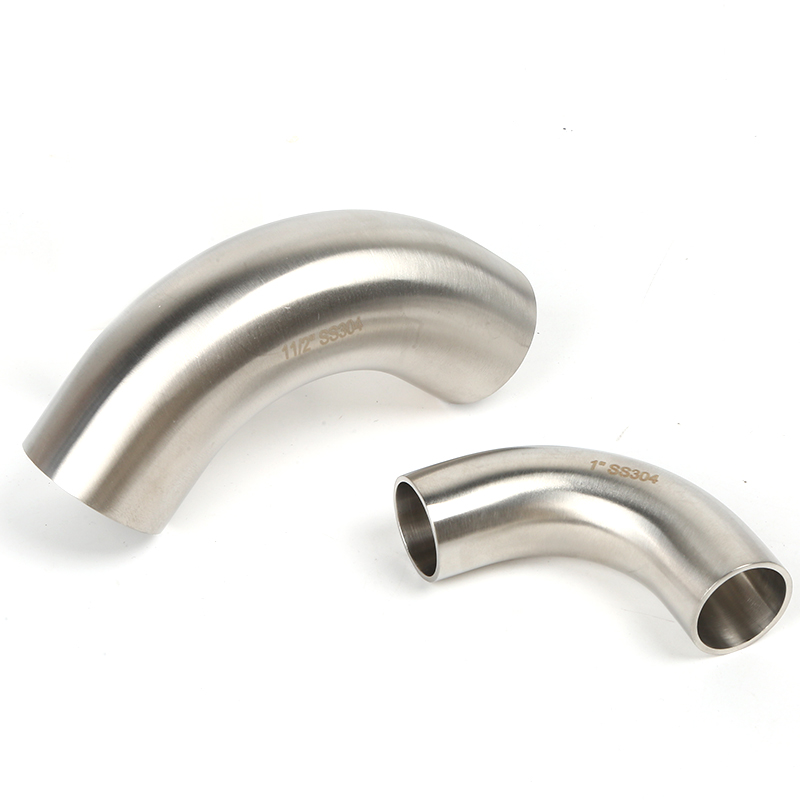

2S 90° Elbow

Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
FEW021050	1/2"	12.7	38.1/76.2	19.05	1.65	/46
FEW021075	3/4"	19.05	38.1/76.2	28.5	1.65	37/
FEW021100	1"	25.4	52.4	38.1	1.65	85
FEW021125	11/4"	31.8	64	47.7	1.65	145
FEW021150	11/2"	38.1	74.6	57.2	1.65	173
FEW021200	2"	50.8	103.2	76.2	1.65	320
FEW021250	21/2"	63.5	131.8	95.3	1.65	575
FEW021300	3"	76.2	160.3	114.3	1.65	840
FEW021400	4"	101.6	211.1	152.4	2.11	1900
FEW021600	6"	152.4	291.2	228.6	2.77
FEW021800	8"	203.2	368.3	304.8	3.05
FEW0211000	10"	254	457.2	381	3.05
FEW0211200	12"	304.8	533.4	457.2	3.05

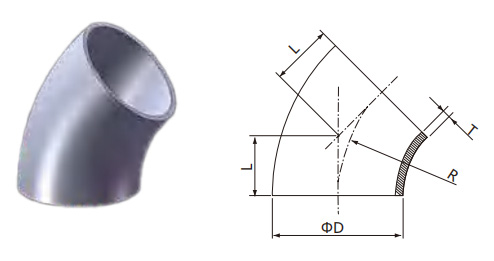

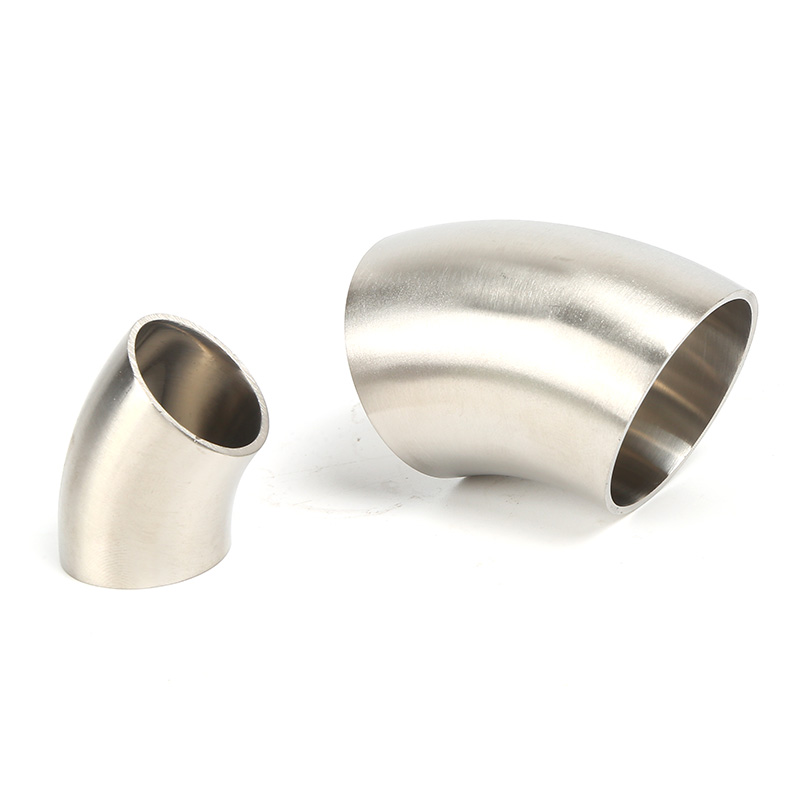

2WK 45° Elbow Short Tangent

Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
FEW031050	1/2"	12.7	7.9	19.05	1.65
FEW031075	3/4"	19.05	11.8	28.5	1.65
FEW031100	1"	25.4	15.8	38.1	1.65
FEW031125	11/4"	31.8	19.8	47.7	1.65
FEW031150	11/2"	38.1	23.8	57.2	1.65
FEW031200	2"	50.8	31.8	76.2	1.65
FEW031250	21/2"	63.5	39.7	95.3	1.65
FEW031300	3"	76.2	47.6	114.3	1.65
FEW031400	4"	101.6	63.5	152.4	2.11
FEW031600	6"	152.4	94.7	228.6	2.77
FEW031800	8"	203.2	126.25	304.8	3.05
FEW0311000	10"	254	157.82	381	3.05
FEW0311200	12"	304.8	189.38	457.2	3.05

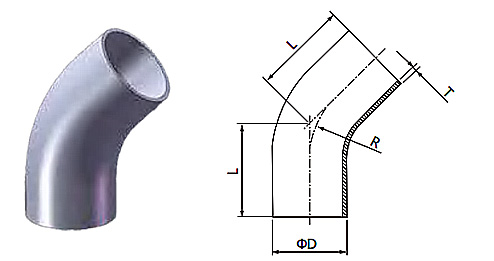

2WS 45° Elbow

Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
FEW041050	1/2"	12.7	19.3	19.05	1.65
FEW041075	3/4"	19.05	19.3	28.5	1.65
FEW041100	1"	25.4	30.1	38.1	1.65	45
FEW041125	11/4"	31.8	41.3	47.7	1.65
FEW041150	11/2"	38.1	41.3	57.2	1.65	116
FEW041200	2"	50.8	58.8	76.2	1.65	237
FEW041250	21/2"	63.5	76.2	95.3	1.65	393
FEW041300	3"	76.2	93.7	114.3	1.65	569
FEW041400	4"	101.6	122.2	152.4	2.11	1133
FEW041600	6"	152.4	158.8	228.6	2.77
FEW041800	8"	203.2	189.75	304.8	3.05
FEW0411000	10"	254	234	381	3.05
FEW0411200	12"	304.8	265.5	457.2	3.05

2WU 180° Elbow

Model No	Size	D/mm	L/mm	R/mm	T/mm	N.W/g.
FEW051100	1"	25.4	76.2	38.1	1.65
FEW051150	11/2"	38.1	114.3	57.2	1.65
FEW051200	2"	50.8	152.4	76.2	1.65
FEW051250	21/2"	63.5	190.5	95.3	1.65
FEW051300	3"	76.2	228.6	114.3	1.65
FEW051400	4"	101.6	304.8	152.4	2.1

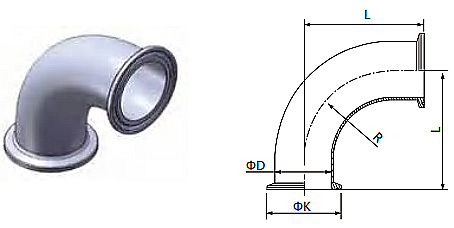

2MP 90° Clamp Elbow

Model No	Size	D/mm	K/mm	L/mm	R/mm	N.W/g.
FEW011050	1/2"	12.7	25.2	31.8	19.05	50
FEW011075	3/4"	19.05	25.2	41.3	28.5	65
FEW011100	1"	25.4	50.5	50.8	38.1	190
FEW011125	11/4"	31.8	50.5	60.4	47.7	200
FEW011150	11/2"	38.1	50.5	69.9	57.2	225
FEW011200	2"	50.8	64	88.9	76.2	363
FEW011250	21/2"	63.5	77.5	108	95.3	545
FEW011300	3"	76.2	91	127	114.3	744
FEW011400	4"	101.6	119	168.3	152.4	1588
FEW011600	6"	152.4	167	250.8	228.6	4685
FEW011800	8"	203.2	217	327	304.8	8935

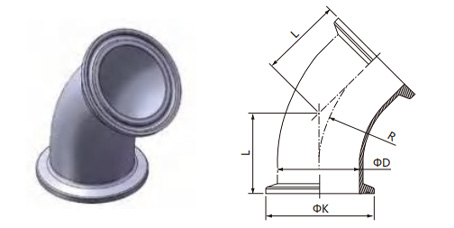

2KMP 45° Elbow

Model No	Size	D/mm	K/mm	L/mm	R/mm	N.W/g.
FEW031050	1/2"	12.7	25.2	20.6	19.05	90
FEW031075	3/4"	19.05	25.2	25.4	28.5	95
FEW031100	1"	25.4	50.5	28.5	38.1	160
FEW031125	11/4"	31.8	50.5	32.5	47.7
FEW031150	11/2"	38.1	50.5	36.5	57.2	136
FEW031200	2"	50.8	64	44.5	76.2	227
FEW031250	21/2"	63.5	77.5	52.4	95.3	336
FEW031300	3"	76.2	91	60.3	114.3	463
FEW031400	4"	101.6	119	79.3	152.4	1020
FEW031600	6"	152.4	167	116.9	228.6	2750
FEW031800	8"	203.2	217	148.45	304.8	4040

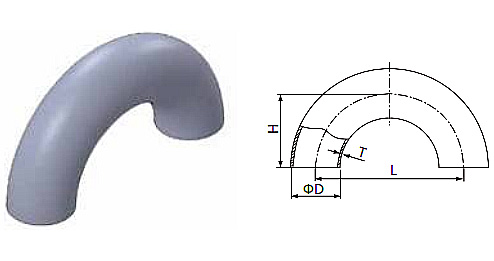

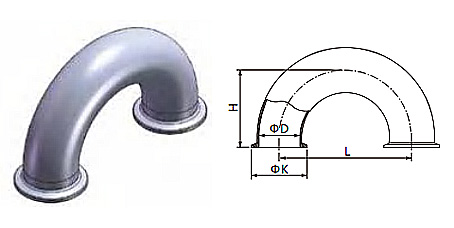

2WU 180° U Elbow

Model No	Size	D/mm	L/mm	H/mm	T/mm	N.W/g.
FEW051100	1"	25.4	76.2	38.1	1.65
FEW051150	11/2"	38.1	114.3	57.2	1.65
FEW051200	2"	50.8	152.4	76.2	1.65
FEW051250	21/2"	63.5	190.5	95.3	1.65
FEW051300	3"	76.2	228.6	114.3	1.65
FEW051400	4"	101.6	304.8	152.4	2.1
