3A 7WWW/7WWWL Tee Sanitary Weld Tee SS304/SS316L 7WWO/7WO Equal Tee Short/Long without Straight End 3A Tube Fittings

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

7WWW Tee Short

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FTW011050	1/2"	12.7	19.05	1.65	40
	FTW011075	3/4"	19.05	28.6	1.65	50
	FTW011100	1"	25.4	28.6	1.65	80
	FTW011150	11/2"	38.1	42	1.65	100
	FTW011200	2"	50.8	52.3	1.65	240
	FTW011250	21/2"	63.5	59.5	1.65	330
	FTW011300	3"	76.2	65.9	1.65	450
	FTW011400	4"	101.6	87.3	2.11	1000
	FTW011500	5"	127	127	2.77
	FTW011600	6"	152.4	127	2.77

7WWWL Tee Long

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FTW021050	1/2"	12.7	47.6	1.65	59
	FTW021075	3/4"	19.05	47.6	1.65	80
	FTW021100	1"	25.4	47.6	1.65	113
	FTW021150	11/2"	38.1	57.2	1.65	205
	FTW021200	2"	50.8	76.2	1.65	360
	FTW021250	21/2"	63.5	76.2	1.65	450
	FTW021300	3"	76.2	82.6	1.65	565
	FTW021400	4"	101.6	98.4	2.11	1000
	FTW021500	5"	127	142.9	2.77
	FTW021600	6"	152.4	142.9	2.77
	FTW021800	8	203.2	177.8	3.05
	FTW0211000	10	254	215.9	3.05
	FTW0211200	12"	304.8	254	30.5

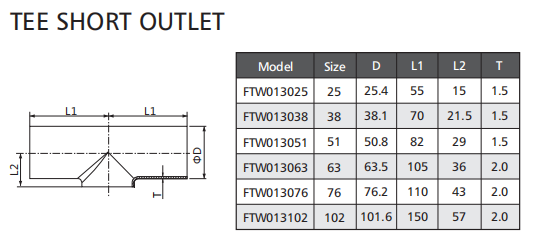

7WWO Short Tee Without Straight End

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FTW031100	1"	25.4	57.2	16	1.65
	FTW031150	11/2"	38.1	84	22	1.65
	FTW031200	2"	50.8	104.6	29	1.65
	FTW031250	21/2"	63.5	119	35	1.65
	FTW031300	3"	76.2	131.8	41	1.65
	FTW031400	4"	101.6	174.6	54	2.11

7WO Long Tee Without Straight End

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FTW041050	1/2"	12.7	95.2	9.35	1.65
	FTW041075	3/4"	19.05	95.2	12.5	1.65
	FTW041100	1"	25.4	95.2	16	1.65
	FTW041150	11/2"	38.1	114.4	22	1.65
	FTW041200	2"	50.8	152.4	29	1.65
	FTW041250	21/2"	63.5	152.4	35	1.65
	FTW041300	3"	76.2	165.2	41	1.65
	FTW041400	4"	101.6	196.8	54	2.11

7MP Clamp Tee

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FTC021050	1/2"	12.7	25.2	60.3	145
	FTC021075	3/4"	19.05	25.2	60.3	145
	FTC021100	1"	25.4	50.5	60.3	305
	FTC021125	11/4"	31.8	50.5	60.4	308
	FTC021150	11/2"	38.1	50.5	69.9	310
	FTC021200	2"	50.8	64	88.9	510
	FTC021250	21/2"	63.5	77.5	88.9	725
	FTC021300	3"	76.2	91	95.3	845
	FTC021400	4"	101.6	119	114.3	1770
	FTC021500	5"	127	167	149.2	4470
	FTC021600	6"	152.4	167	165.1	4550
	FTC021600	8"	203.2	217	200	4570

3A Long Clamp Tee With Short Outlet

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FTC041100	1"	25.4	120.6	28.7	1.65
	FTC041150	11/2"	38.1	139.8	34.7	1.65
	FTC041200	2"	50.8	177.8	41.7	1.65
	FTC041250	21/2"	63.5	177.8	47.7	1.65
	FTC041300	3"	76.2	190.6	53.7	1.65
	FTC041400	4"	101.6	228.6	69.9	2.1
