AS 90 Degree Weld Elbow SS304 SS316L High Quality Sanitary AS Welding Pipe Fitting Stainless Steel 45Degree Elbows

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

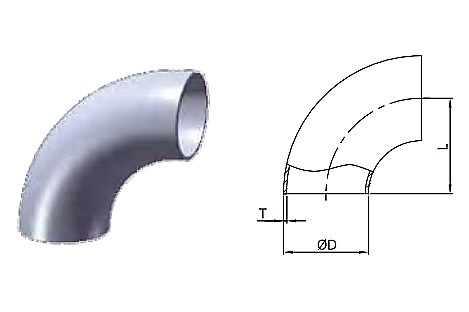

AS 90° Elbow

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FEW018050	1/2"	12.7	19.1	1.6
	FEW018075	3/4"	19.05	28.6	1.6
	FEW018100	1"	25.4	38.1	1.6
	FEW018125	11/4"	31.8	47.7	1.6
	FEW018150	1.5"	38.1	57.2	1.6
	FEW018200	2"	50.8	76.2	1.6
	FEW018250	2.5"	63.5	95	1.6
	FEW018300	3"	76.2	114.3	1.6
	FEW018400	4"	101.6	152.4	2
	FEW018600	6"	152.4	228.6	2.8

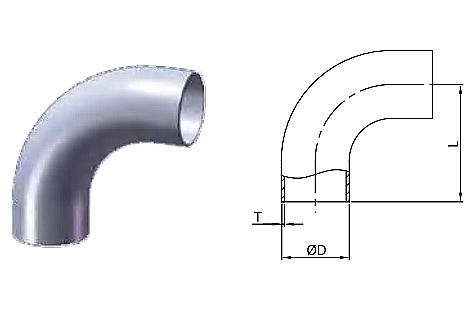

AS 90° Elbow Long

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FEW028050	1/2"	12.7	49.1	1.6
	FEW028075	3/4"	19.05	58.6	1.6
	FEW028100	1"	25.4	68.1	1.6
	FEW028125	11/4"	31.8	77.7	1.6
	FEW028150	1.5"	38.1	87	1.6
	FEW028200	2"	50.8	106.2	1.6
	FEW028250	2.5"	63.5	125	1.6
	FEW028300	3"	76.2	144.2	1.6
	FEW028400	4"	101.6	182.4	2

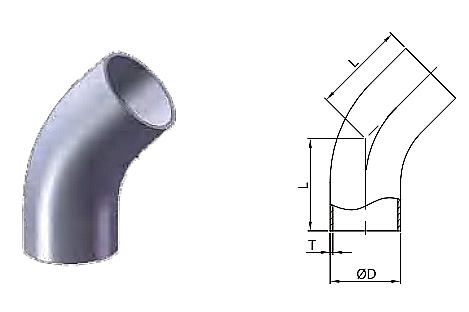

AS 45° Elbow Long

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FEW048050	1/2"	12.7	37.9	1.6
	FEW048075	3/4"	19.05	41.8	1.6
	FEW048100	1"	25.4	45.8	1.6
	FEW048125	11/4"	31.8	49.7	1.6
	FEW048150	1.5"	38.1	53.7	1.6
	FEW048200	2"	50.8	61.6	1.6
	FEW048250	2.5"	63.5	69.5	1.6
	FEW048300	3"	76.2	77.3	1.6
	FEW048400	4"	101.6	92.8	2
