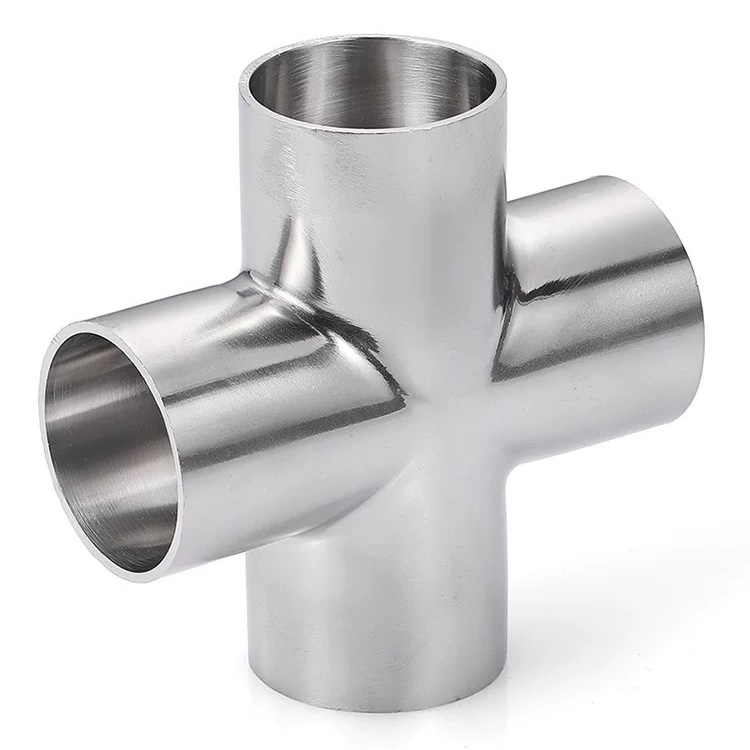

3A 9WWW/9WL Cross Sanitary Weld Cross Stainless Steel SS304/SS316L Long/Short Cross 3A Fittings

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

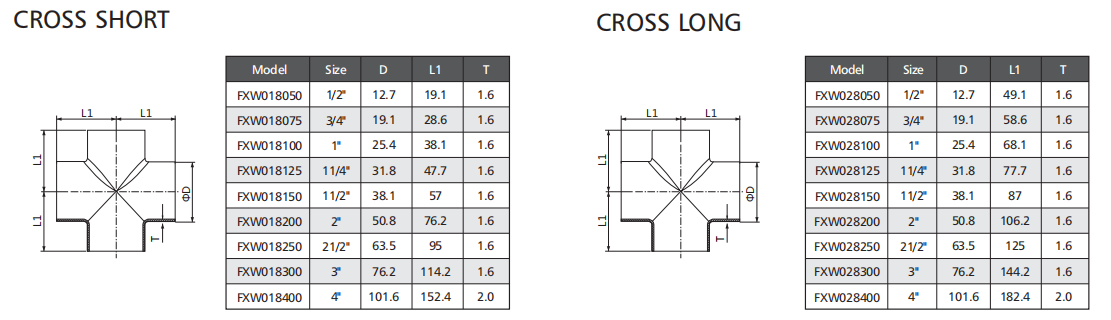

2WWWW Cross Short

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FXW011050	1/2"	12.7	19.05	1.65
	FXW011075	3/4"	19.05	28.5	1.65
	FXW011100	1"	25.4	38.1	1.65
	FXW011150	11/2"	38.1	57.2	1.65
	FXW011200	2"	50.8	76.2	1.65
	FXW011250	21/2"	63.5	95.3	1.65
	FXW011300	3"	76.2	114.3	1.65
	FXW011400	4"	101.6	152.4	2.11
	FXW011600	6"	152.4	228.6	2.77

2WL Cross Short

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FXW021050	1/2"	12.7	47.6	1.65	68
	FXW021075	3/4"	19.05	47.6	1.65	127
	FXW021100	1"	25.4	47.6	1.65	150
	FXW021150	11/2"	38.1	57.2	1.65	270
	FXW021200	2"	50.8	76.2	1.65	470
	FXW021250	21/2"	63.5	76.2	1.65	535
	FXW021300	3"	76.2	82.6	1.65	700
	FXW021400	4"	101.6	98.4	2.11	1300
	FXW021600	6"	152.4	142.9	2.77

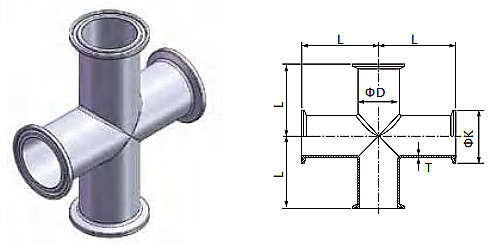

9WP Clamp Cross

	Model No	Size	D/mm	K/mm	L/mm	T/mm	N.W/g.
	FXC021050	1/2"	12.7	25.2	60.3	1.65	200
	FXC021075	3/4"	19.05	25.2	60.3	1.65	200
	FXC021100	1"	25.4	50.5	60.3	1.65	415
	FXC021150	11/2"	38.1	50.5	69.9	1.65	435
	FXC021200	2"	50.8	64	88.9	1.65	700
	FXC021250	21/2"	63.5	77.5	88.9	1.65	815
	FXC021300	3"	76.2	91	95.3	1.65	1100
	FXC021400	4"	101.6	119	114.3	2.11	1880
	FXC021600	6"	152.4	167	164.4	2.77
