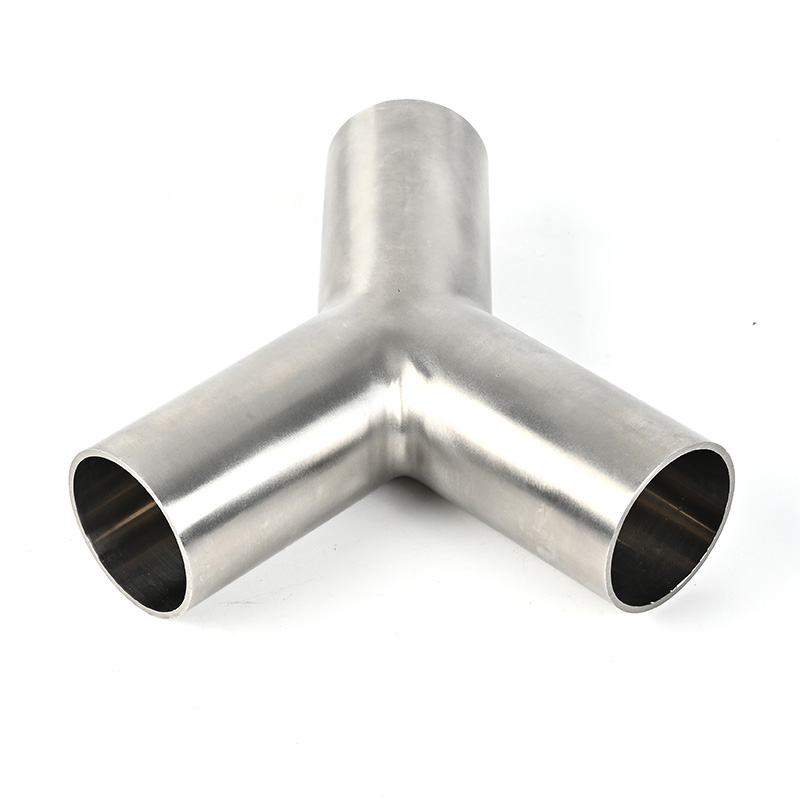

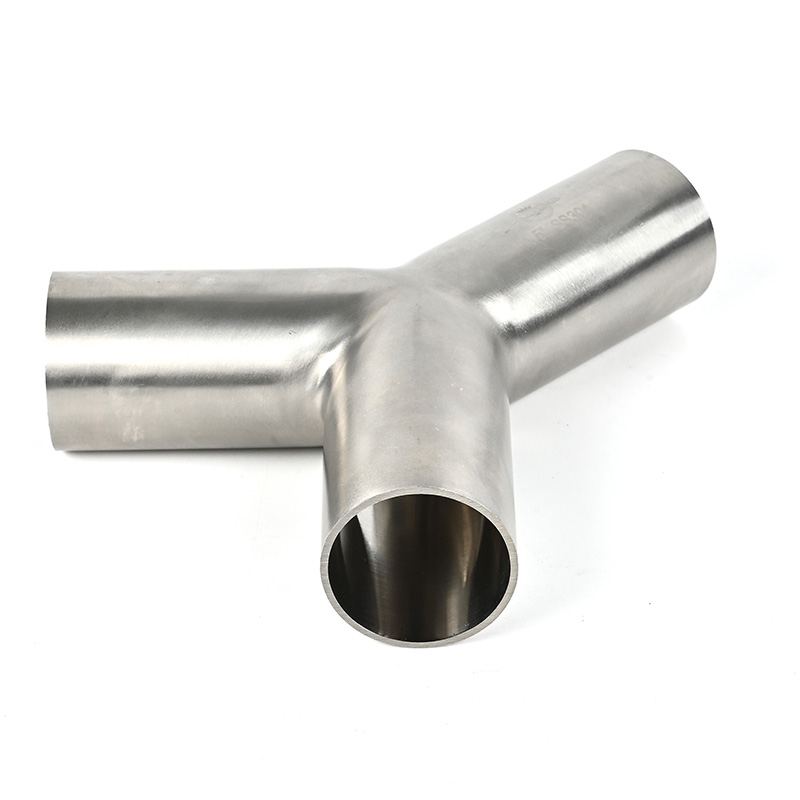

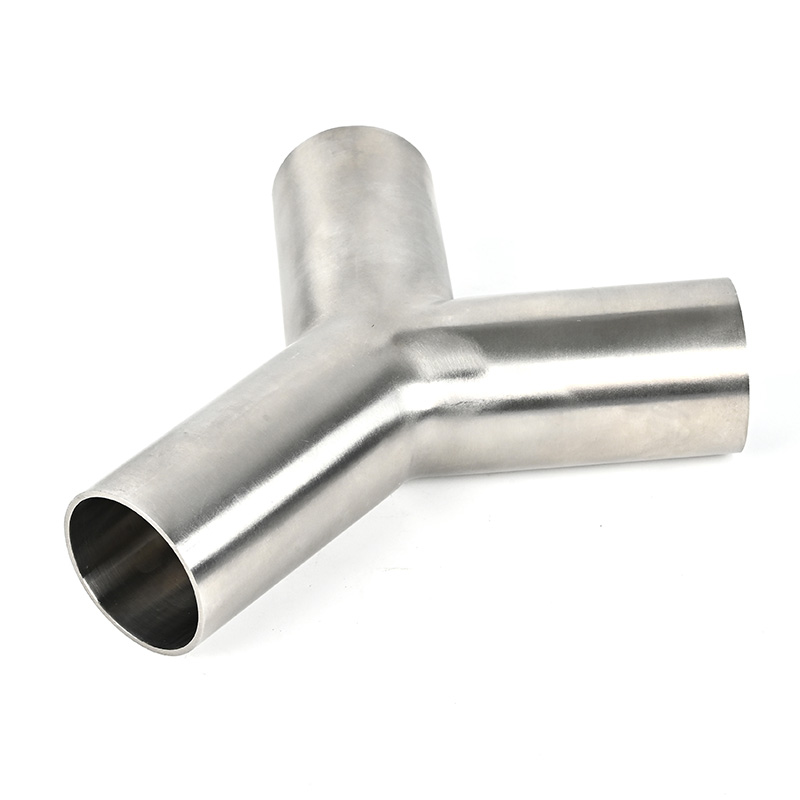

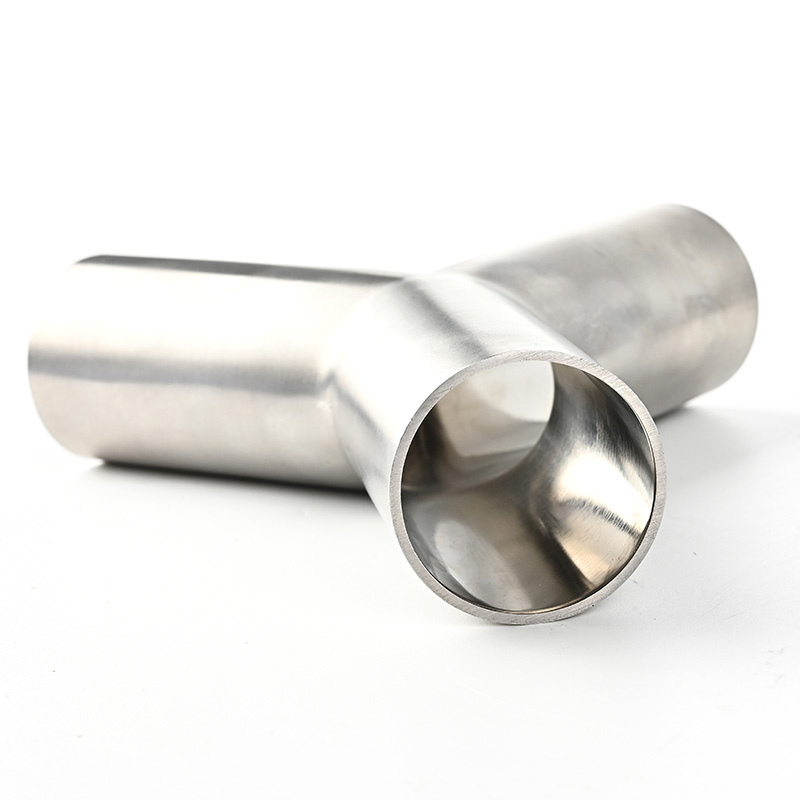

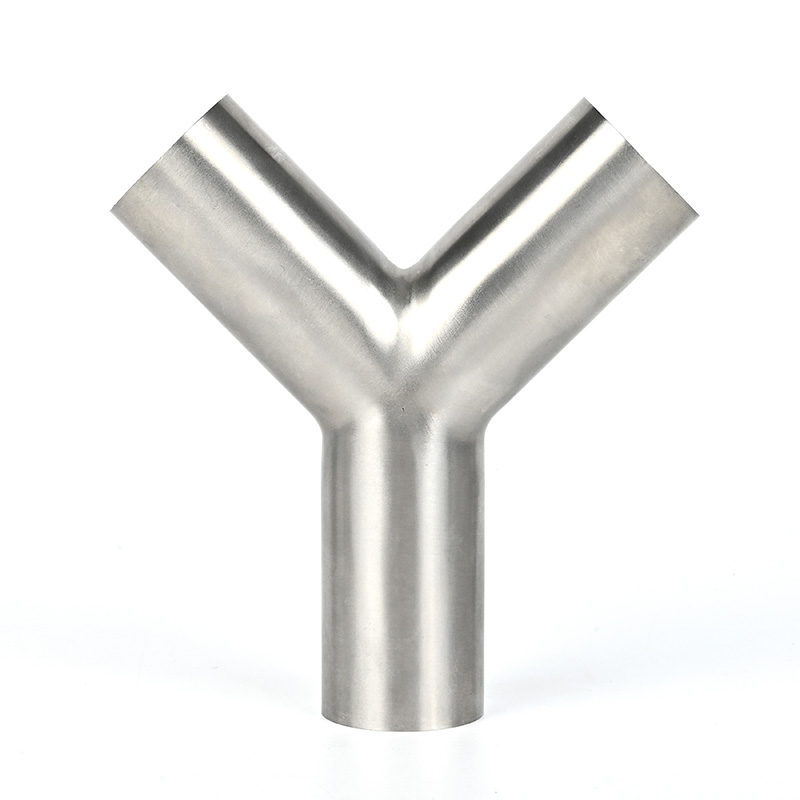

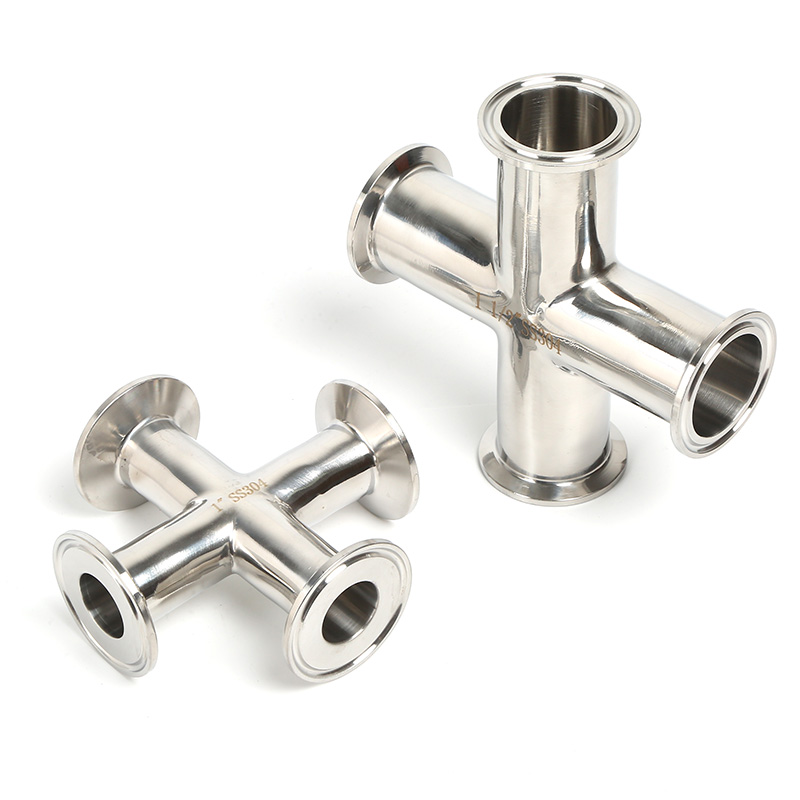

3A 28WB True Y Sanitary Weld Y-type Tee Stainless Steel SS304/SS316L True Y-Type Cross 3A Fittings

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

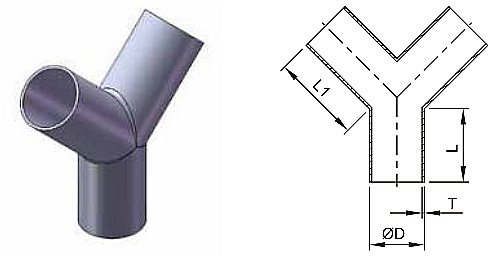

28WB True Y

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FYW011050	1/2"	12.7	48.2	48.2	1.65
	FYW011075	3/4"	19.05	46.9	46.9	1.65
	FYW011100	1"	25.4	50.8	50.8	1.65
	FYW011150	11/2"	38.1	50.8	50.8	1.65
	FYW011200	2"	50.8	66.7	66.7	1.65
	FYW011250	21/2"	63.5	85.6	85.6	1.65
	FYW011300	3"	76.2	101.6	101.6	1.65
	FYW011400	4"	101.6	136.6	136.6	2.11
	FYW011600	6"	152.4	171.6	171.6	2.77

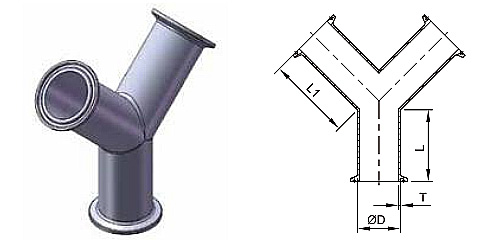

28BMP Clamp True Y

	Model No	Size	D/mm	L/mm	L1/mm	T/mm	N.W/g.
	FYC011050	1/2"	12.7	60.9	60.9	1.65
	FYC011075	3/4"	19.05	59.6	59.6	1.65
	FYC011100	1"	25.4	63.5	74.6	1.65
	FYC011150	11/2"	38.1	63.5	74.6	1.65
	FYC011200	2"	50.8	79.4	95.3	1.65
	FYC011250	21/2"	63.5	98.3	117.5	1.65
	FYC011300	3"	76.2	114.3	136.5	1.65
	FYC011400	4"	101.6	152.5	152.5	2.11
	FYC011600	6"	152.4	193.1	193.0	2.77
