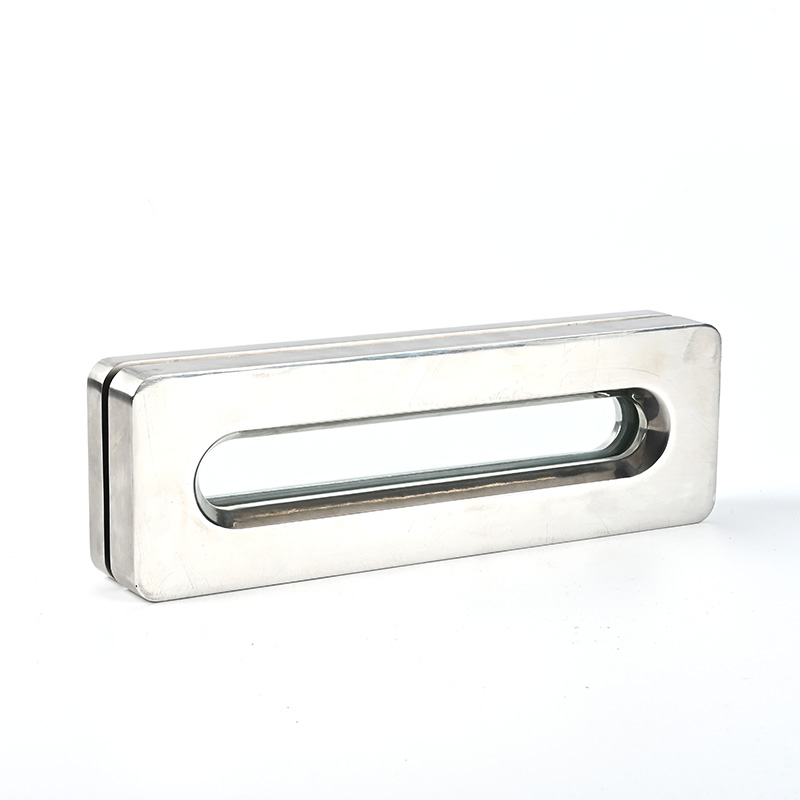

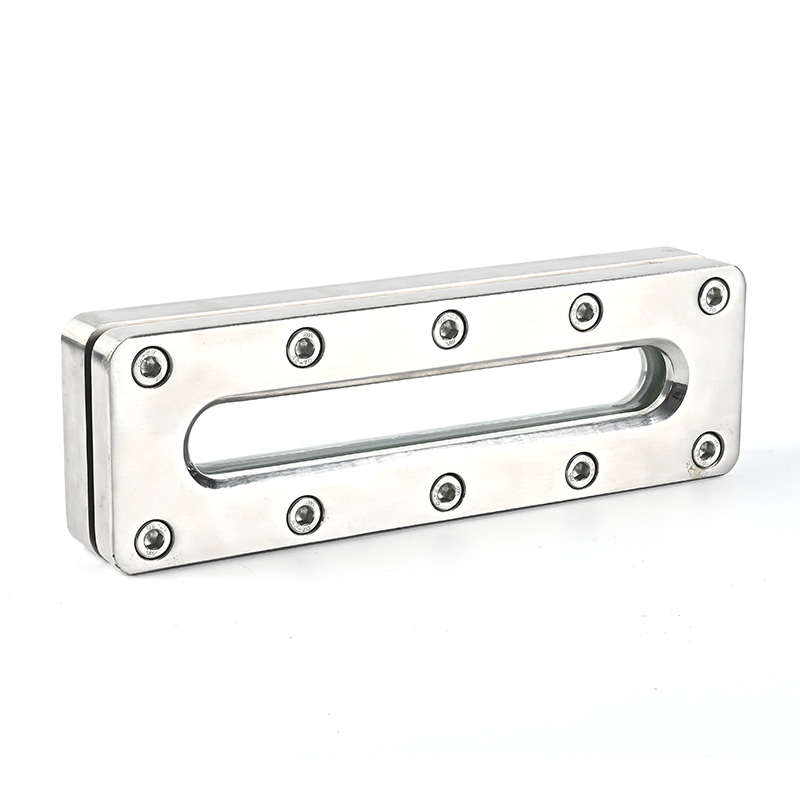

Sanitary Rectangular Sight Glass Wide Range Of Sizes Low Profile Stainless Steel Clean-Line Design With Counter-Sunk Bolts SS304/SS316L

Application

To show surface of a liquid, for insertion into attachment to tanks, vessels and silos. The base frame is welded onto or into the vessel wall. Then the sightglass plate together with two seals is firmly bolted down
by the cover frame and a set of fastening bolts.

Operating Conditions

Design Pressure: 6 Bar
Design Temperature: -10 °C to 120 °C(Silicon)

Material

Base Frame: SS304/SS316L
Cover Frame: SS304
Glass: Toughened Soda-lime Glass
Gasket: Silicon per FDA 177.2600
Fastening bolts: SS304

Design And Features

• Wide range of sizes
• High Pressure versions up to 25 Bar
• Low profile, clean-line design with counter-sunk bolts
• Radius base flange available for flush fit with vessel interior

Surface Finishing

Satin or Mirror Polishing

Option

• Gasket Material available: EPDM, FPM, PTFE
• Glass Material available: Toughened Borosilicate
• Radius base flange

Mounting Instruction

After welding please examinate if sealing aera is plane.
Otherwise re-machining is necessary.

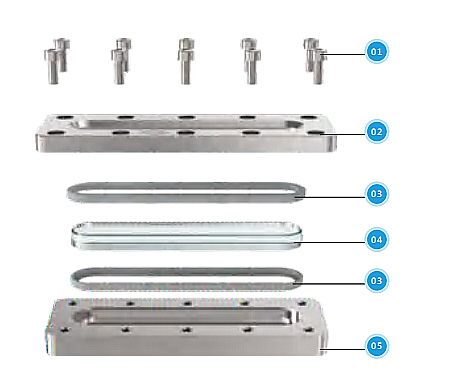

Item

Description

Material

1

Fastening Bolts

SS304

2

Cover Frame

SS304/SS316L

3

Gasket

Silicon

4

Glass

Soda-lime Glass

5

Base Frame

SS304/SS316L

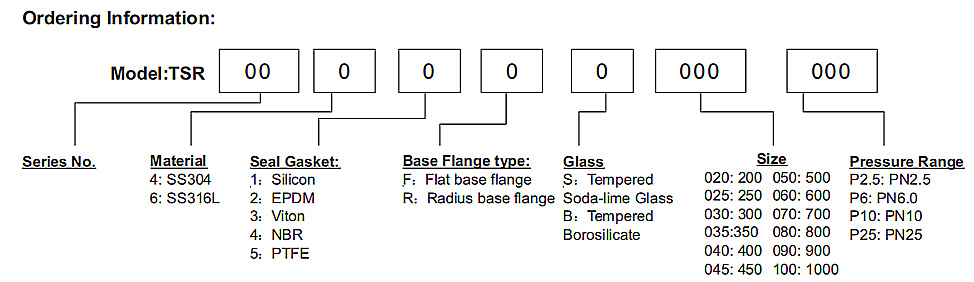

Model No										Size						L				Glass																													Bolts
																				Qty								L1						s								b							Qty x Size
TSR0141FS020P6										200						200				1								140						15								36.5							8 x M8
TSR0141FS025P6										250						250				1								190						15								36.5							10 x M8
TSR0141FS030P6										300						300				1								240						15								36.5							12 x M8
TSR0141FS035P6										350						350				1								290						15								36.5							12 x M8
TSR0141FS040P6										400						400				1								360						15								36.5							14 x M8
TSR0141FS045P6										450						450				1								390						15								36.5							16 x M8
TSR0141FS050P6										500						500				2								2x190						15								36.5							20 x M8
TSR0141FS060P6										600						600				2								2x240						15								36.5							24 x M8
TSR0141FS070P6										700						700				2								2x290						15								36.5							24 x M8
TSR0141FS080P6										800						800				2								2x360						15								36.5							28 x M8
TSR0141FS090P6										900						900				3								3x240						15								36.5							36 x M8
TSR0141FS100P6										1000						1000				4								4x190						15								36.5							40 x M8
