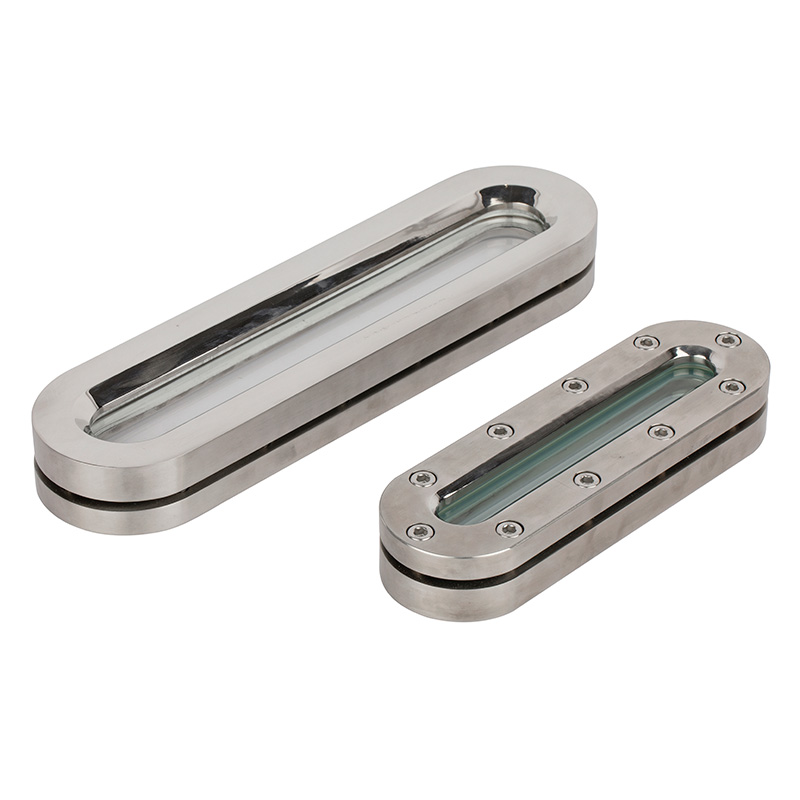

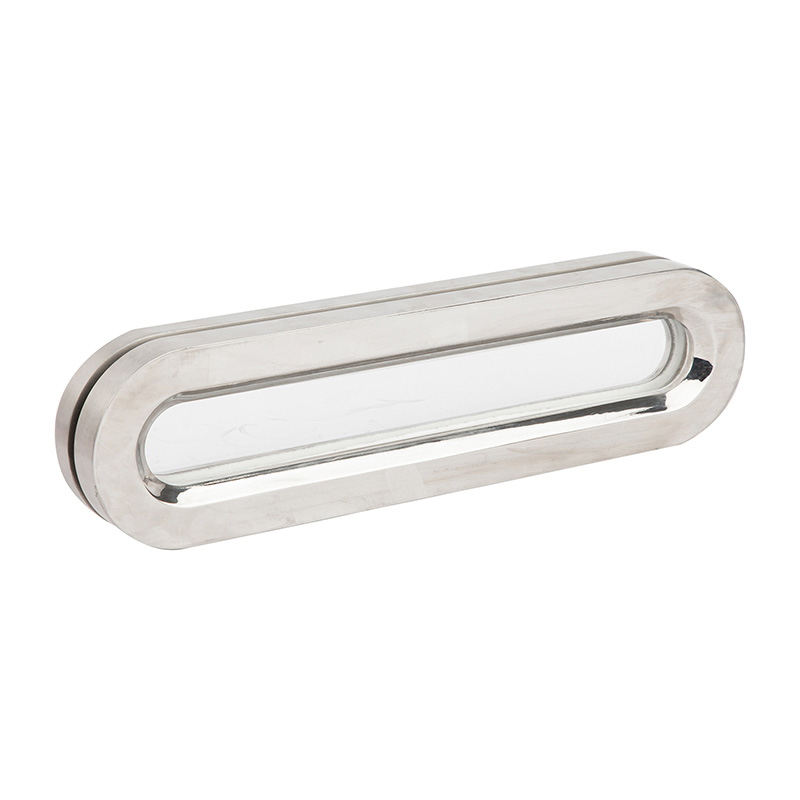

SS304 SS316L Elongated Ellipse Sight Glass Tank Components Fitting Stainless Steel Level Indicator Sanitary Obround Sight Glass

Application

To show surface of a liquid, for insertion into attachment totanks, vessels and silos.The base frame is welded onto or into the vessel wall. Then the sightglass plate together with two seals is firmly bolted down
by the cover frame and a set of fastening bolts

Materials

• Base Frame:         SS304/SS316L

• Cover Frame:       SS304

• Glass:                  Toughened Soda-lime Glass

• Gasket:                Silicon per FDA 177.2600

• Fastening bolts:   SS304

Design And Features

   · Wide range of sizes
   · High Pressure versions up to 25 Bar
   · Low profile, clean-line design with counter-sunk bolts
   · Radius base flange available for flush fit with vessel interior

Operating Conditions

• Operating Conditions:  Up to 25 Bar

• Design Temperature:    -10 °C  to 120 °C(Silicon)

Option

• Gasket Material available: EPDM, FPM, PTFE

• Glass Material available: Toughened Borosilicate

• Radius base flange

Surface Finishing

Satin or Mirror Polishing

Mounting Instruction

After welding please examinate if sealing aera is plane.
Otherwise re-machining is necessary.

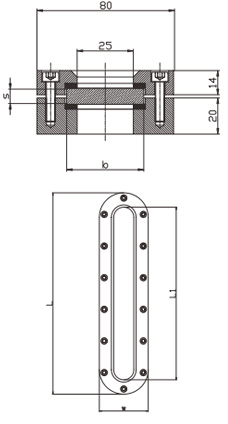

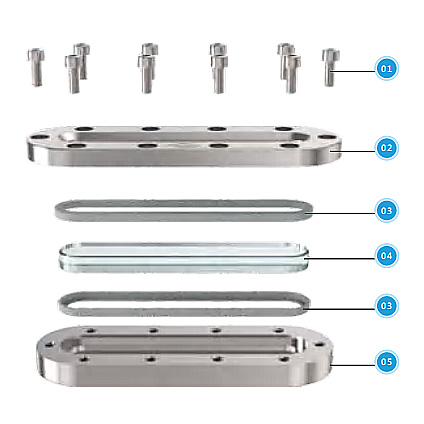

Item		Description												Material													Model No					Size					Glass																Bolts
1		Fastening Bolts												SS304																							L					L1			s				b				Qty x Size
2		Cover Frame												SS304/SS316L													TSE0141FS020PN6					200					200					145			15				36.5				8 x M8
3		Gasket												Silicon													TSE0141FS025PN6					250					250					195			15				36.5				10 x M8
4		Glass												Soda-lime Glass													TSE0141FS030PN6					300					300					245			15				36.5				12 x M8
5		Base Frame												SS304/SS316L
																											TSE0141FS035PN6					350					350					295			15				36.5				14 x M8
																											TSE0141FS040PN6					400					400					345			15				36.5				16 x M8
																											TSE0141FS045PN6					450					450					395			15				36.5				18 x M8
																											TSE0141FS050PN6					500					500					445			15				36.5				20 x M8
