Clamp Flat Sight Glass Fast Installation Stainless Steel Sight Glass Large Viewing Area SS304/SS316L Sanitary Weld For Pipe According Tank Fitting

Application

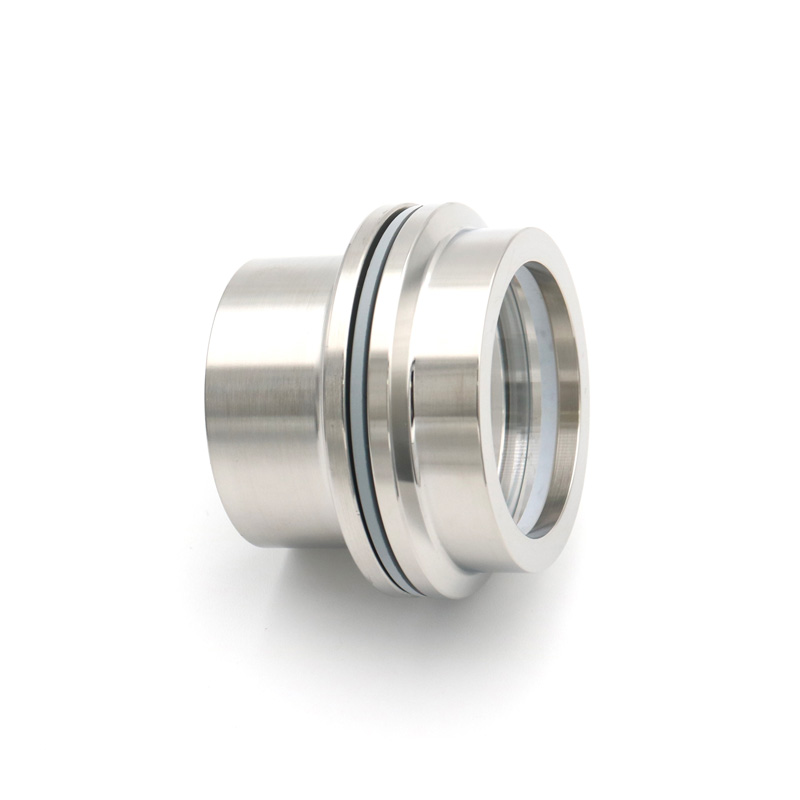

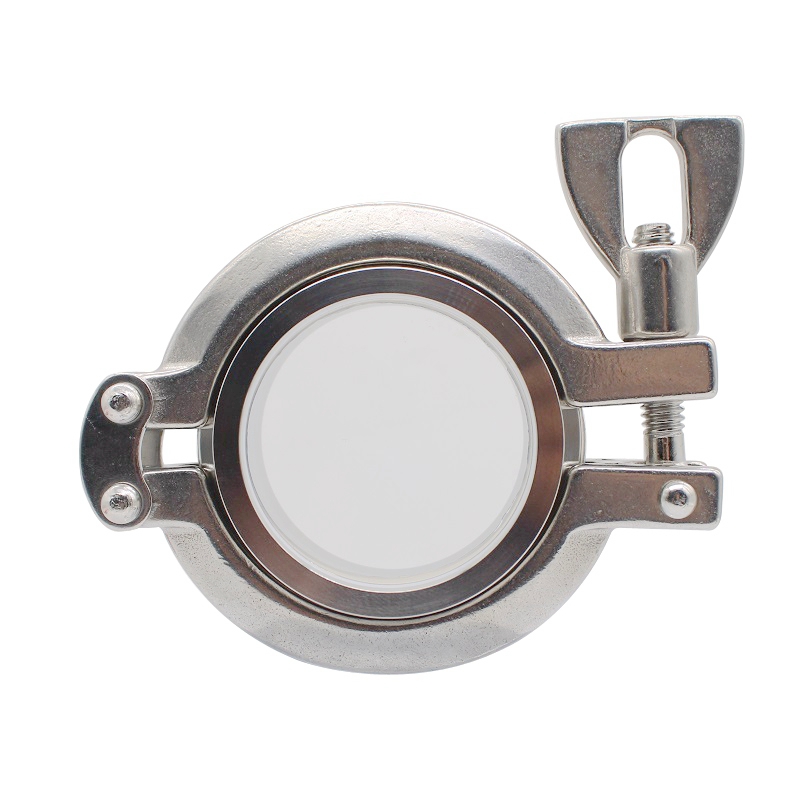

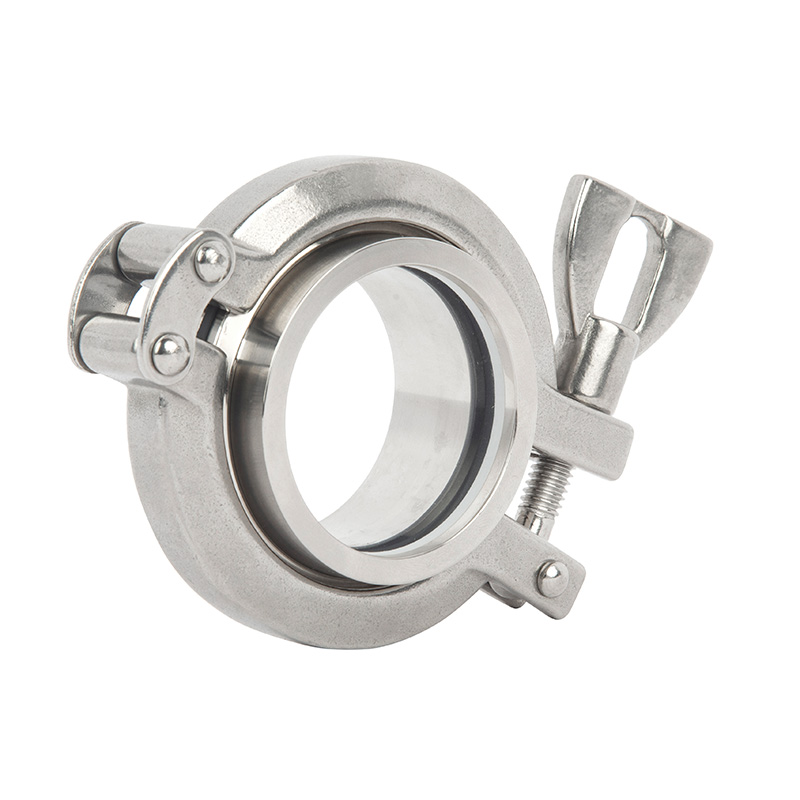

TSL01 clamp flat sight glass consists of a glass attached by means of a clamp. Sight glasses are fitted to tanks to inspect the product, level, course of the process, etc.

They are widely used in the food-processing, cosmetics, pharmaceutical and fin chemicals industries.

FEATURES

• Fast and simple installation and maintenance
• Suitable for food processing and sterile applications
• Extremely compact construction with large viewing area
• No product entrapment
• Various types of welding ferrules
• LED light options available
• Wiper options available

MATERIAL

Cap: SS304/SS316L
Ferrule: SS304/SS316L
Clamp: SS304
Glass: Borosilicate
Clamp Gasket: FPM per PDA 177.2600
Flat sided seal: PTFE

Operating Conditions

Design Pressure:        up to 6 bar

Design Temperature: -10°C to 120°C

Option

Clamp gaskets material available on request EPDM , VMQ, PTFE

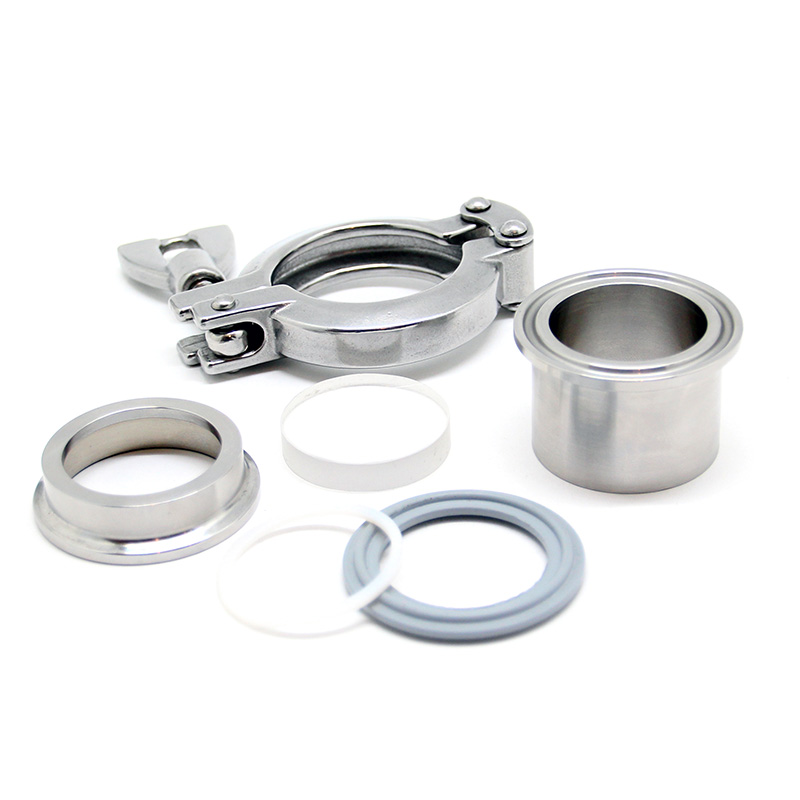

Item

Description

Material

1

Cap

SS304/SS316L

2

Flat sided seal

PTFE

3

Glass

Borosilicate

4

Clamp Gasket

FPM

5

Ferrule

SS304/SS316L

6

Clamp

SS304

Weld For Pipe According to 3A

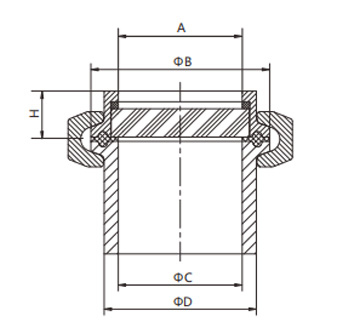

	Model No						Size					C							D					A					B					H
	TSL01W43B1100						1"					22.1							25.4					23					50.5					23.5
	TSL01W43B1150						1.5"					34.8							38.1					25.5					50.5					23.5
	TSL01W43B1200						2"					47.5							50.8					38					64					23.5
	TSL01W43B1250						2.5"					60.2							63.5					51.5					77.5					23.5
	TSL01W43B1300						3"					72.9							76.2					63.5					91					23.5
	TSL01W43B1400						4"					97.4							101.6					88					119					23.5
	TSL01W43B1600						6"					146.9							152.4					142.5					167					23.5

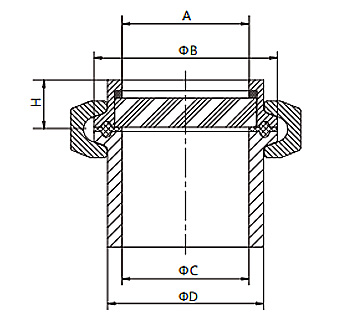

Weld For Pipe According to DIN11850

	Model No						Size					C							D					A					B					H
	TSL01W43B2025						DN25					26							29					23					50.5					23.5
	TSL01W43B2032						DN32					32							35					25					50.5					23.5
	TSL01W43B2040						DN40					38							41					25.5					50.5					23.5
	TSL01W43B2050						DN50					50							53					38					64					23.5
	TSL01W43B2065						DN65					66							70					63.5					91					23.5
	TSL01W43B2080						DN80					81							85					72					106					23.5
	TSL01W43B2100						DN100					100							104					90.5					119					23.5
	TSL01W43B2125						DN125					125							129					117.5					144.5					23.5
