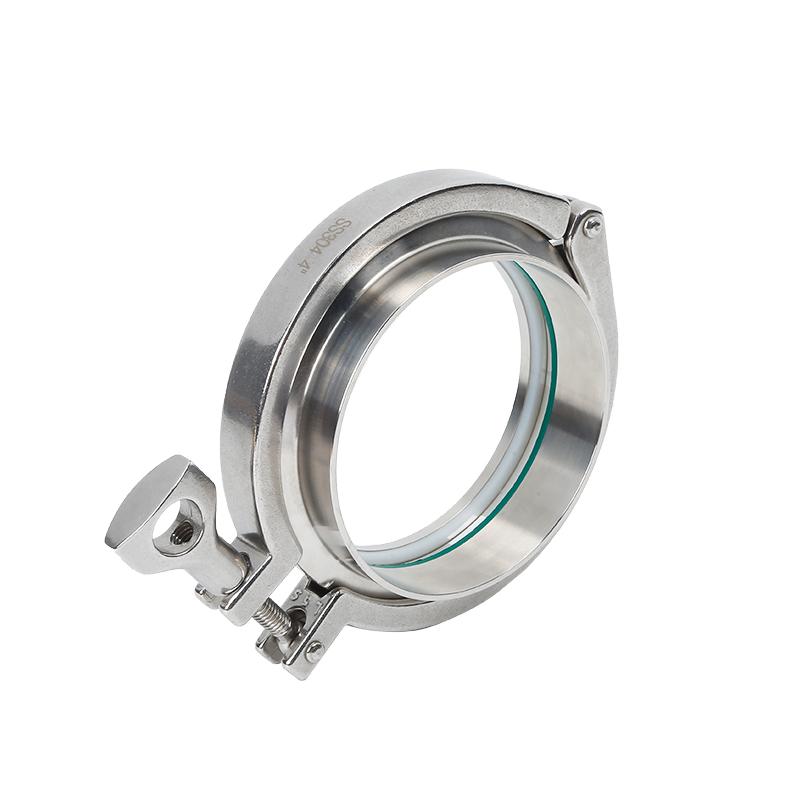

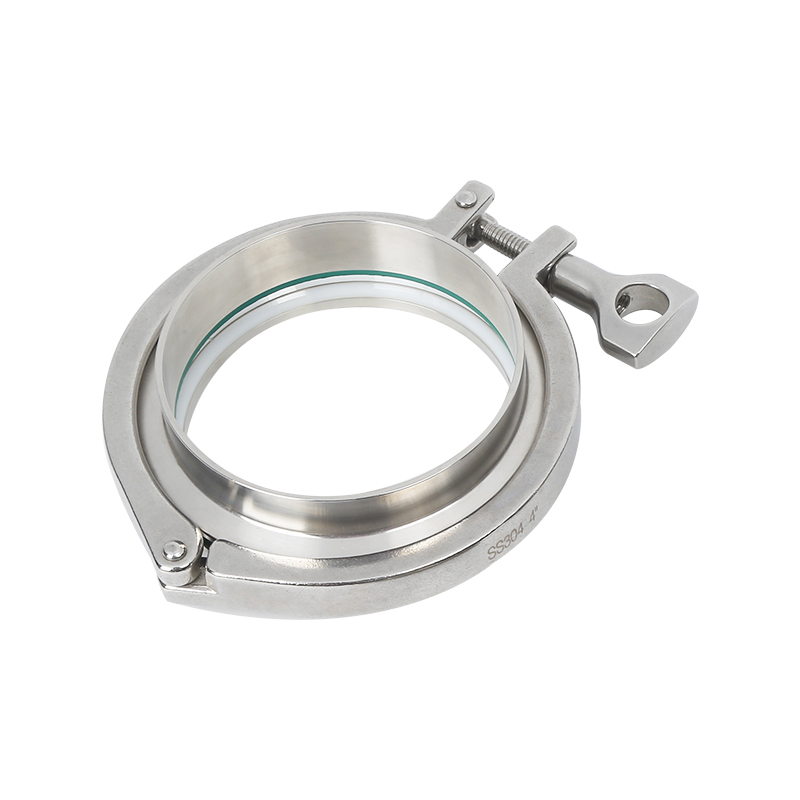

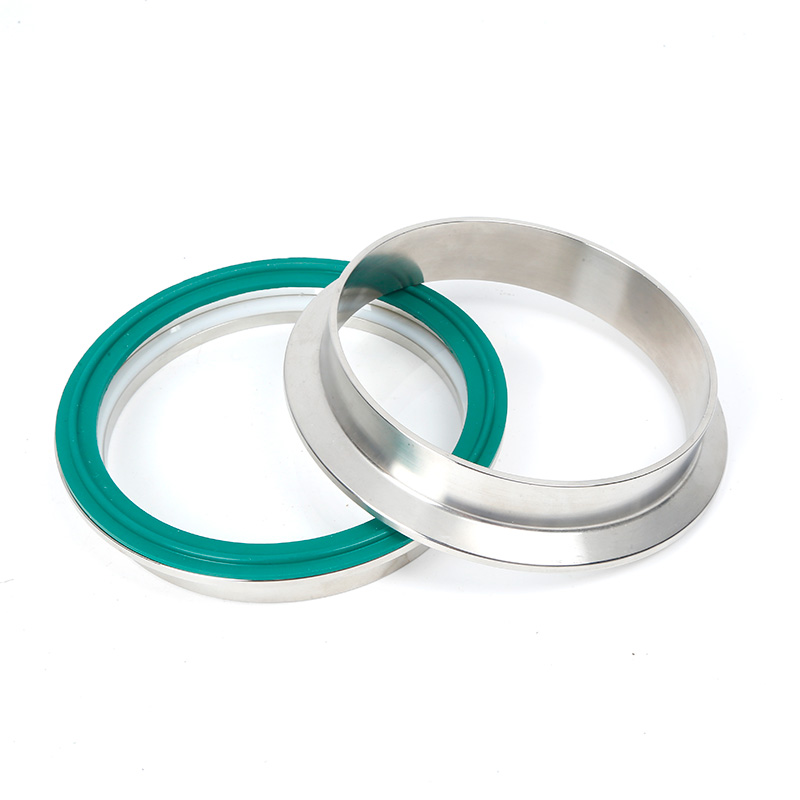

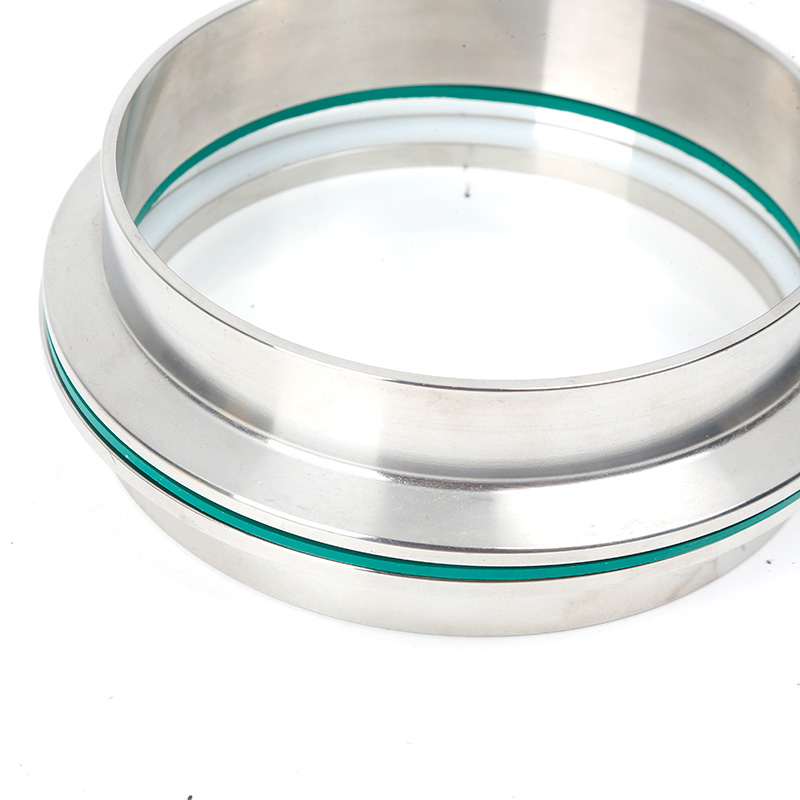

SS304 Ferrule Tri Clamp Sight Glass Kits Stainless Steel Pipe Fittings Tri Clamp Sanitary Weld Ferrule+Gasket+Clamp Fitting

Application

TSL01 clamp flat sight glass consists of a glass attached by means of a clamp. Sight glasses are fitted to tanks to inspect the product, level, course of the process, etc.

They are widely used in the food-processing, cosmetics, pharmaceutical and fin chemicals industries.

FEATURES

• Fast and simple installation and maintenance
• Suitable for food processing and sterile applications
• Extremely compact construction with large viewing area
• No product entrapment
• Various types of welding ferrules
• LED light options available
• Wiper options available

MATERIAL

Cap: SS304/SS316L
Ferrule: SS304/SS316L
Clamp: SS304
Glass: Borosilicate
Clamp Gasket: FPM per PDA 177.2600
Flat sided seal: PTFE

Operating Conditions

Design Pressure:        up to 6 bar

Design Temperature: -10°C to 120°C

Option

Clamp gaskets material available on request EPDM , VMQ, PTFE

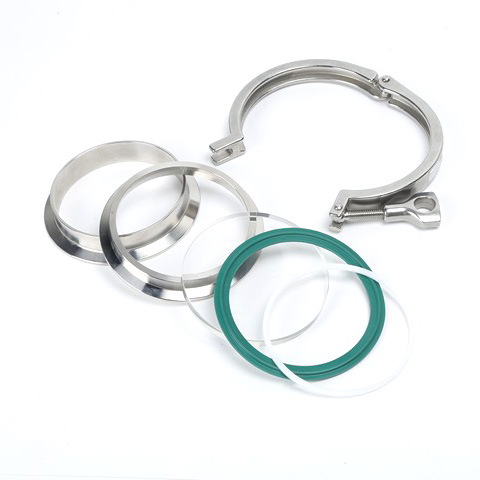

Item

Description

Material

1

Cap

SS304/SS316L

2

Flat sided seal

PTFE

3

Glass

Borosilicate

4

Clamp Gasket

FPM

5

Ferrule

SS304/SS316L

6

Clamp

SS304
