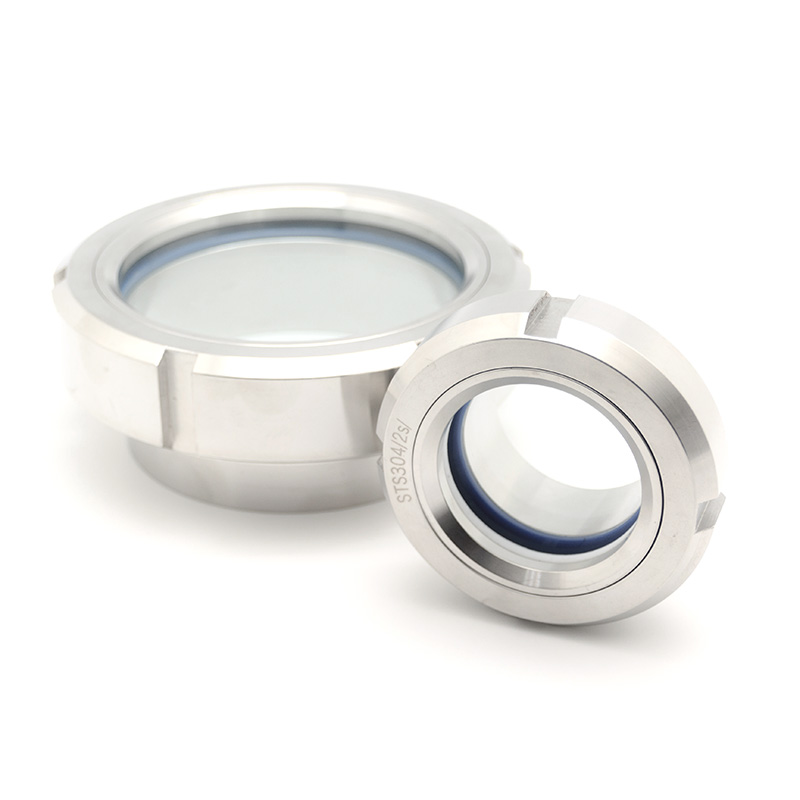

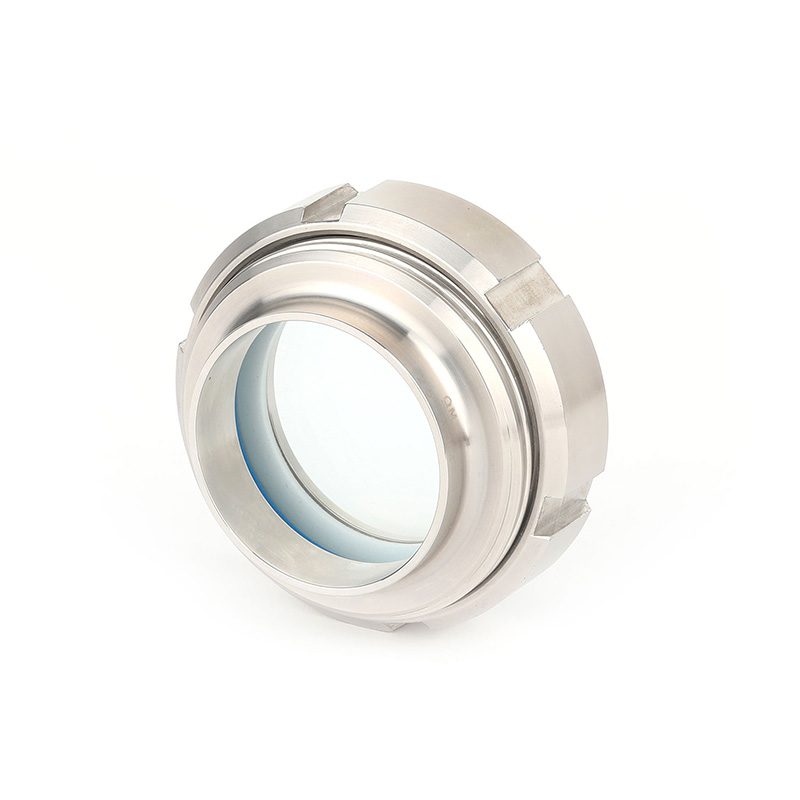

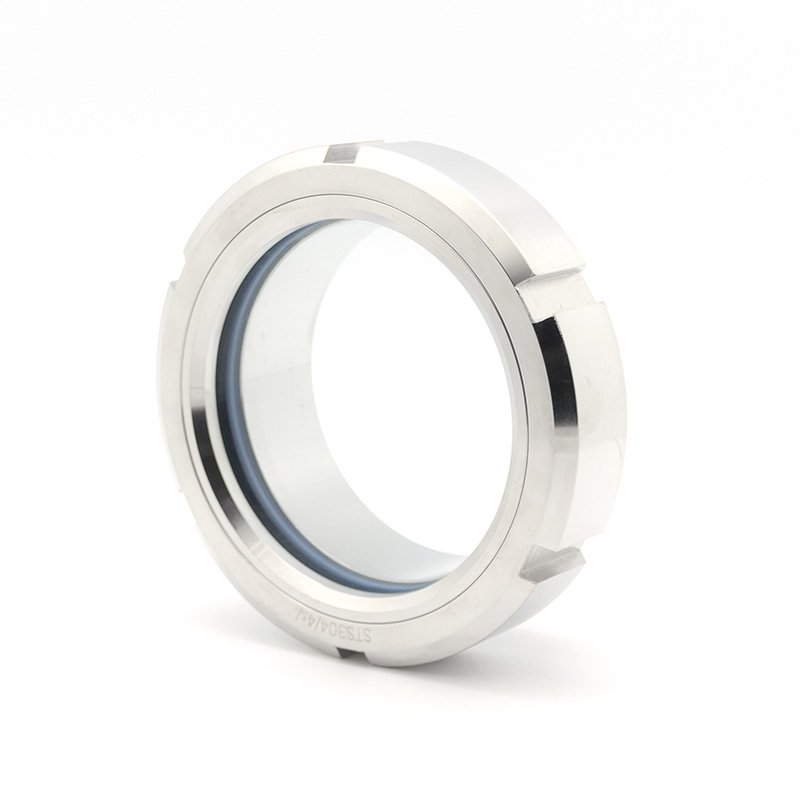

Union Type Sight Glass Product Sanitary Weld Tank Components SS304 SS316L Union Weld Sight Glass Stainless Steel

Application

Union Type sight glasses are welded to container to allow visual observation of product flow.  TSU series sight glasses are widely used in food, beverage, and pharmaceutical industries.

Materials

• Butt weld Male Part:  SS304/SS316L

• Slotted cover nut:      SS304

• Glass:                        Toughened Soda-lime glass

• Gasket Material:        Silicon per FDA 177.2600

Design And Features

• Toughened glass for safety using

• LED light options available

• Wiper options available

Operating Conditions

• Working Pressure:        6Bar

• Working Temperature: -10°C to 120°C

Options

• Light fittings for size over DN65
• Wiper for size over DN65
• Glass Material:  Toughened Borosilicate
• Seal Material:    EPDM, FPM per FDA 177.2600

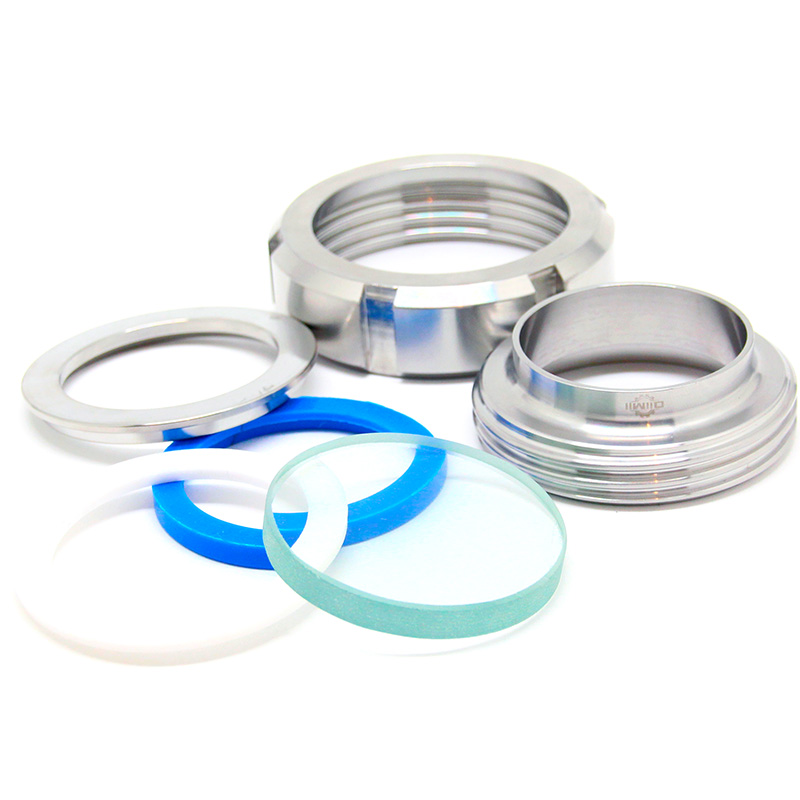

Item

Description

Material

1

Hold-down Ring

SS304

2

Flat Gasket

PTFE

3

Nut

SS304

4

Glass

Tempered Soda-lime glass

5

Gasket

Silicon

6

Female Parts

SS304/SS316L

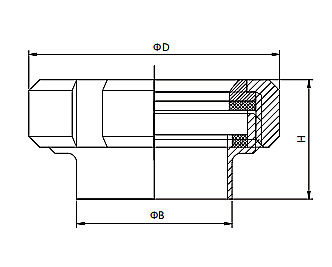

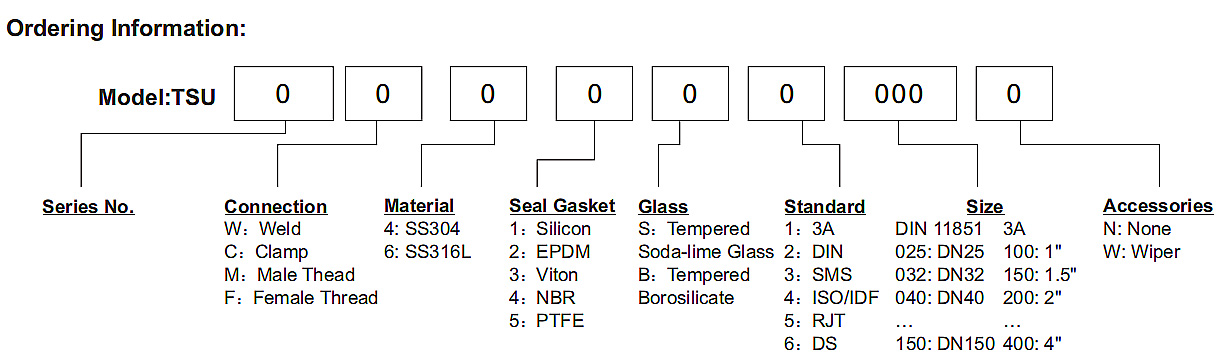

Weld Union Type Sight Glass

	Model No						Size									H								D							B
	TSU01W41S1100N						1"									23								54							25.4
	TSU01W41S1125N						11/4"									27								70							31.8
	TSU01W41S1150N						11/2"									29								72							38.1
	TSU01W41S1200N						2"									29								92							50.8
	TSU01W41S1250N						21/2"									32								97							63.5
	TSU01W41S1300N						3"									31								111							76.2
	TSU01W41S1400N						4"									35								138							101.6
	TSU01W41S2025N						DN25									26								63							28
	TSU01W41S2032N						DN32									28								70							34
	TSU01W41S2040N						DN40									28								78							40
	TSU01W41S2050N						DN50									30								92							52
	TSU01W41S2065N						DN65									31								110							70
	TSU01W41S2080N						DN80									33								125							85
	TSU01W41S2100N						DN100									37								146							104
	TSU01W41S2125N						DN125									38								178							129
	TSU01W41S2150N						DN150									45								210							154

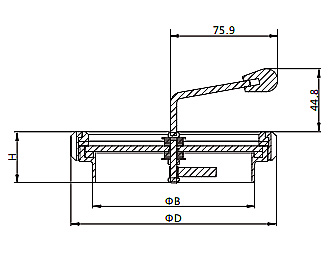

Weld Union Type Sight Glass With Wiper

	Model No						Size									H								D							B
	TSU01W41S2065W						DN65									31								110							70
	TSU01W41S2080W						DN80									33								125							85
	TSU01W41S2100W						DN100									37								146							104
	TSU01W41S2125W						DN125									38								178							129
	TSU01W41S2150W						DN150									45								210							154
