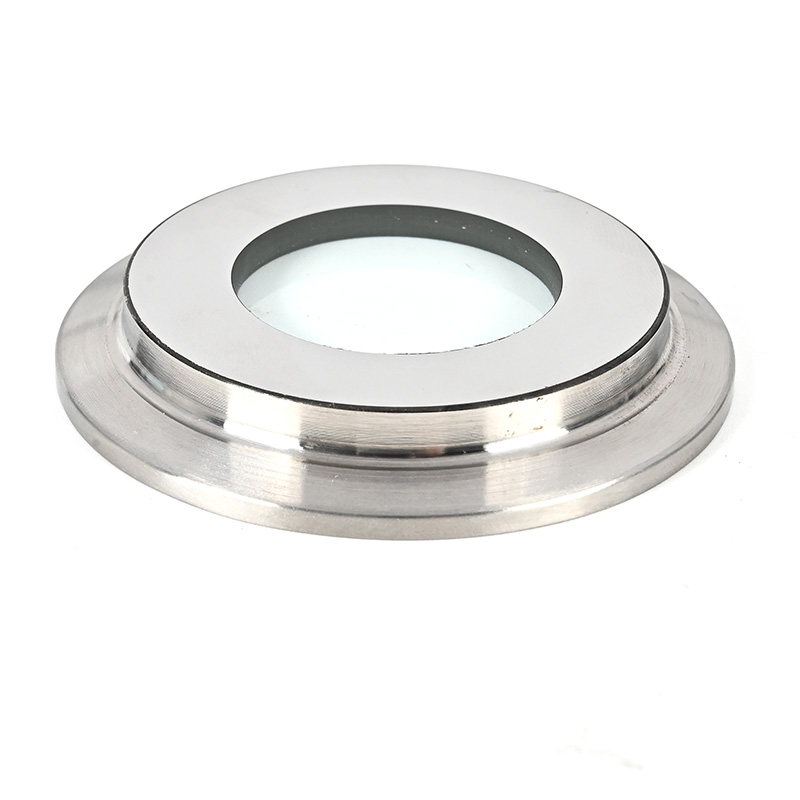

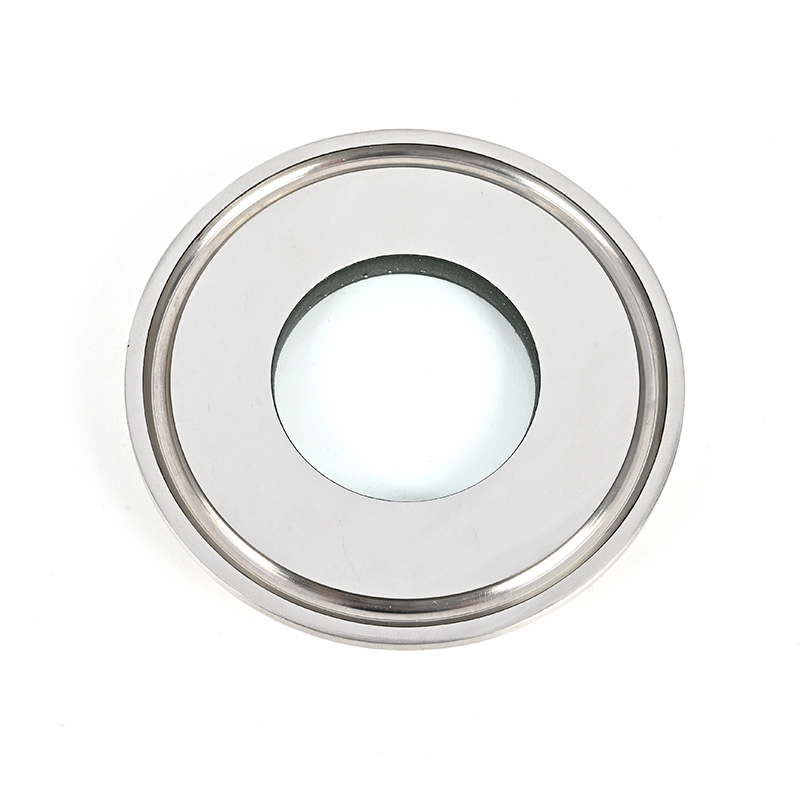

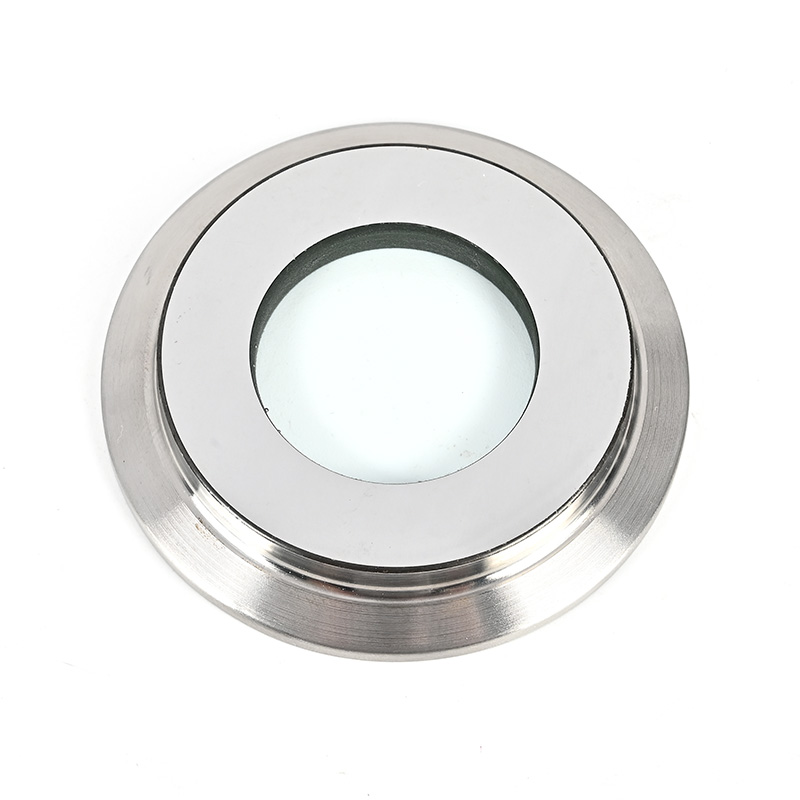

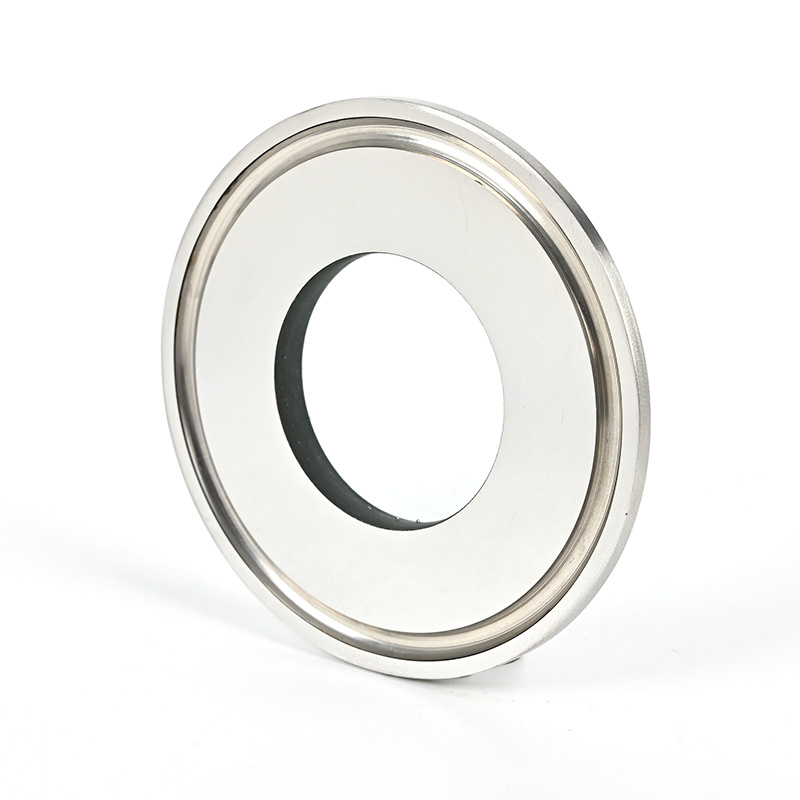

Integrated Sintered Clamp Sight Glass Sanitary SS304 SS316L Tank Fitting Borosilicate Glass Sanitary Stainless Steel Integrated Sight Glass

Application

TSL01 clamp flat sight glass consists of a glass attached by means of a clamp. Sight glasses are fitted to tanks to inspect the product, level, course of the process, etc.

They are widely used in the food-processing, cosmetics, pharmaceutical and fin chemicals industries.

FEATURES

• Fast and simple installation and maintenance
• Suitable for food processing and sterile applications
• Extremely compact construction with large viewing area
• No product entrapment
• Various types of welding ferrules
• LED light options available
• Wiper options available

MATERIAL

Cap: SS304/SS316L
Ferrule: SS304/SS316L
Clamp: SS304
Glass: Borosilicate
Clamp Gasket: FPM per PDA 177.2600
Flat sided seal: PTFE

Operating Conditions

Design Pressure:        up to 6 bar

Design Temperature: -10°C to 120°C

Option

Clamp gaskets material available on request EPDM , VMQ, PTFE
