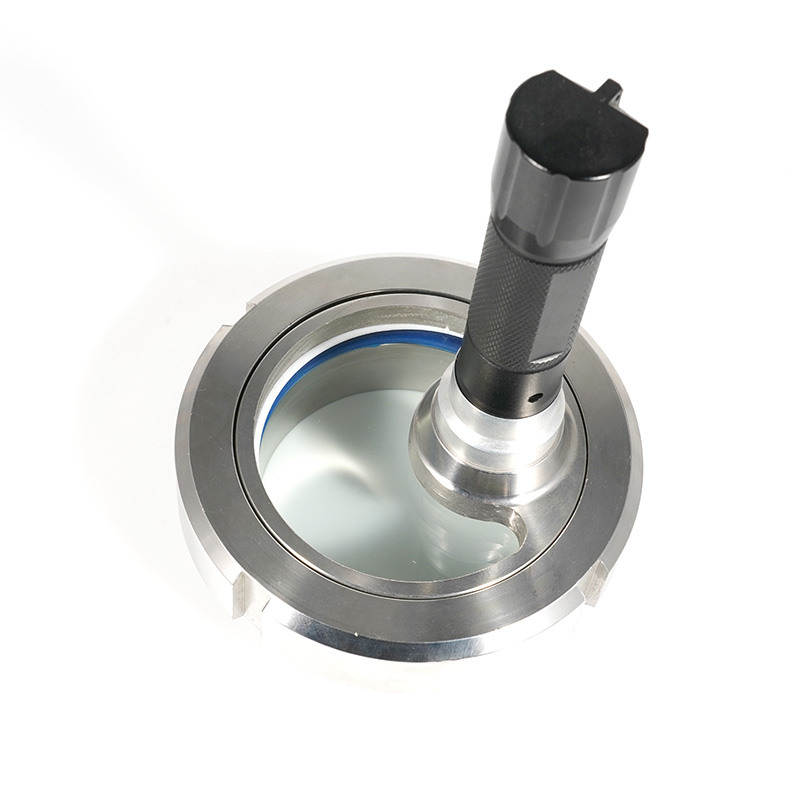

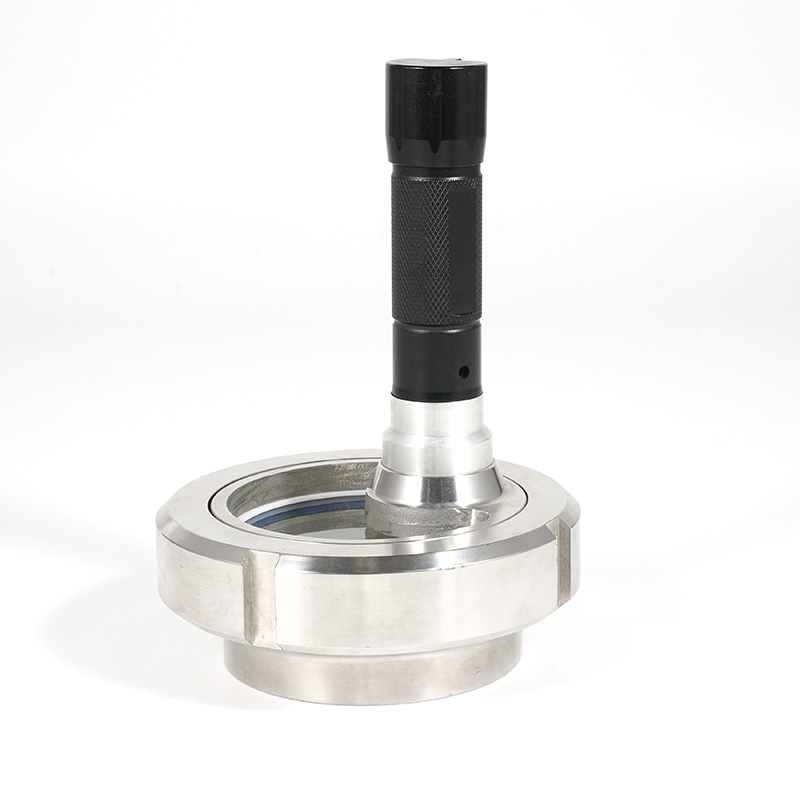

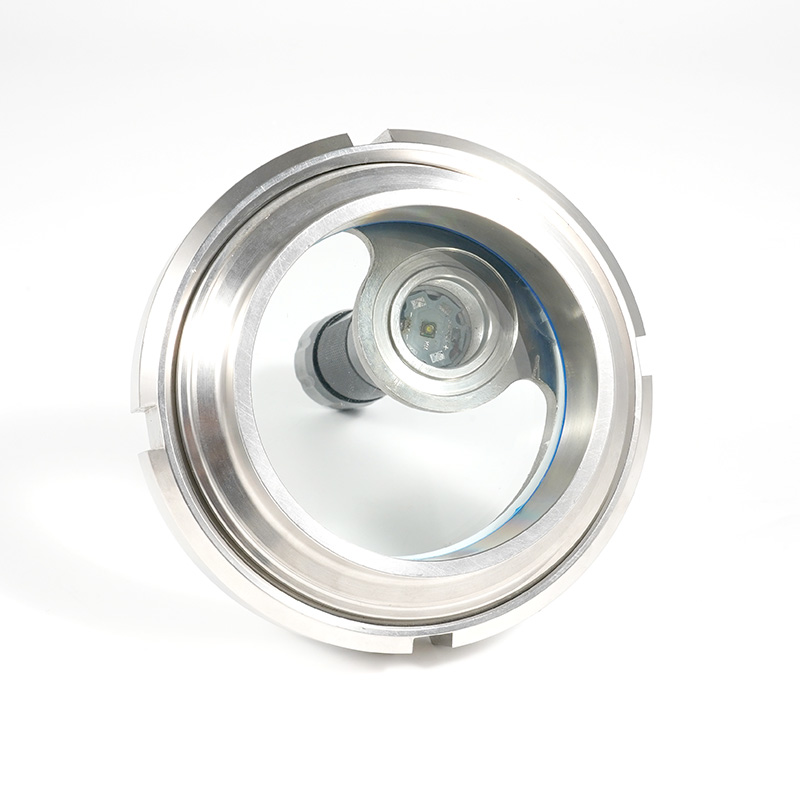

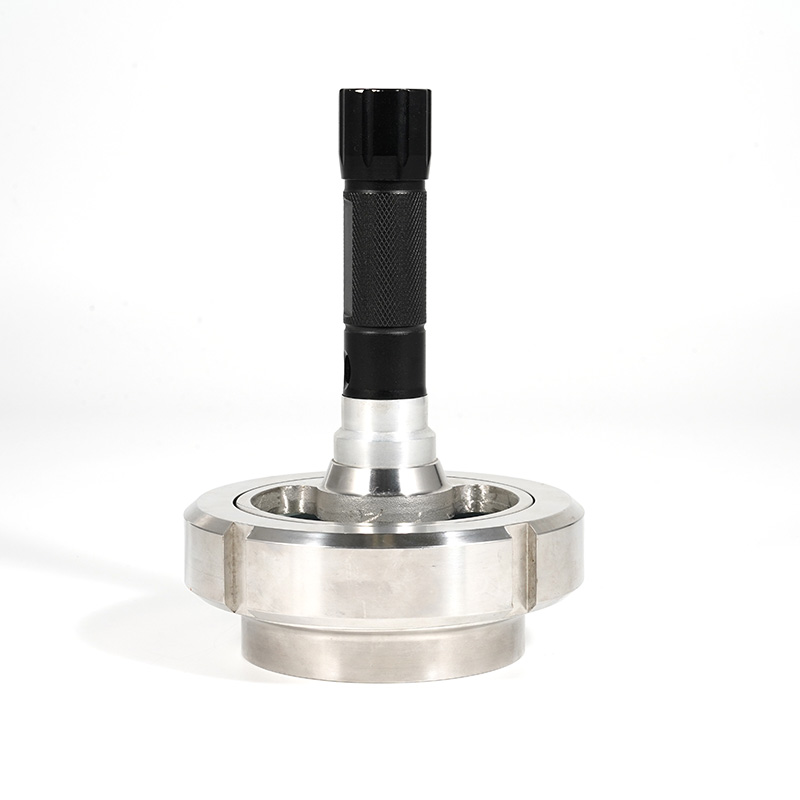

Sanitary Sight Glass with Plastic Wireless Lamp SS304/SS316L Tank Fitting Stainless Steel Union Type Sight Glass With Lamp

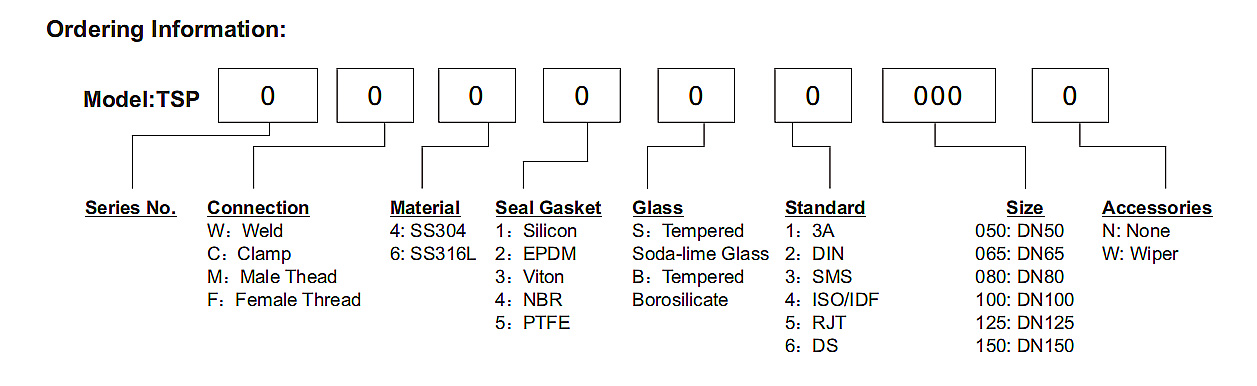

Model No.:TSP

SKU:TSP

TSP Model:
Sight Glass With Lamp
  • Sight Glass With Lamp
  • Sight Glass With Plastic Wireless Lamp
  • Sight Glass With SS Wireless Lamp
End Connections:
Clamp
  • Clamp
  • Weld
  • Female
  • Male
Body Materials:
SS304
  • SS304
  • SS316L
Membrane Materials:
Silicon
  • Silicon
  • EPDM
  • FKM
  • NBR
  • PTFE
Glass:
Tempered Soda-Lime Glass
  • Tempered Soda-Lime Glass
  • Tempered Borosilicate Glass
Size.:
DN50
  • DN50
  • DN65
  • DN80
  • DN100
  • DN125
  • DN150
Accessories:
None
  • None
  • Wiper
Inquire PDF Datasheet

Application

TSP Series sight glass with light indicator is designed for make sure smooth observation even under dark circumstances.

Materials

  • Butt weld Male Part: SS304/SS316L

  • Slotted cover nut:     SS304

  • Glass:                        Toughened Soda-lime glass

  • Gasket Material:       Silicon per FDA 177.2600

Features And Design

  •  Toughened glass for safety using

  • Circular pad flange for welding into or onto vessel wall

  • Size range from DN80 to DN150

  • Wiper options available

Operating Conditions

  • Working Pressure:        6Bar

  • Working Temperature: -10°C to 120°C

Options

Seal Material: EPDM, FPM per FDA 177.2600

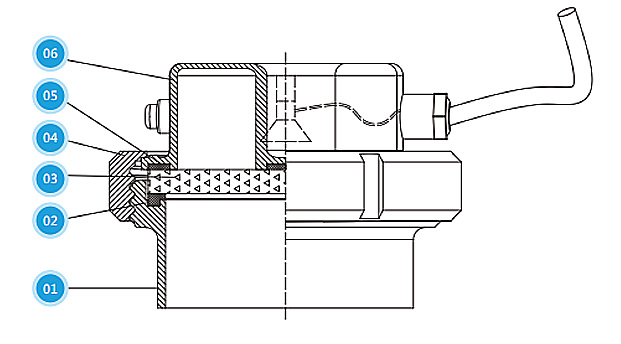

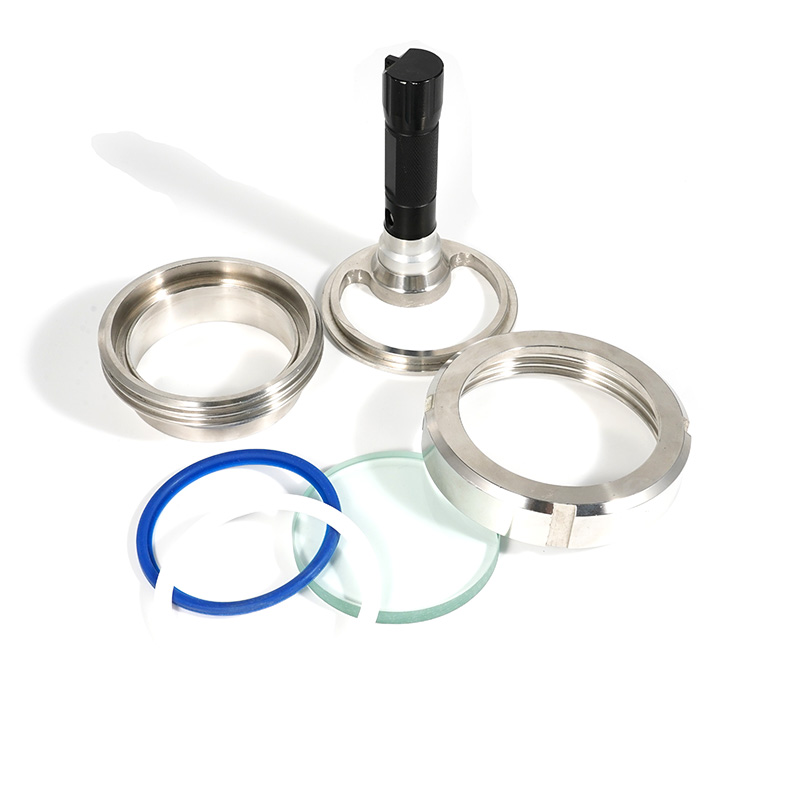

Item Description Material
1  Male Parts SS304/SS316L
2  Seat Gasket Silicon
3  Glass Toughened Soda-lime glass
4  Nut SS304
5  Flat Gasket Silicon
6  Light parts SS304

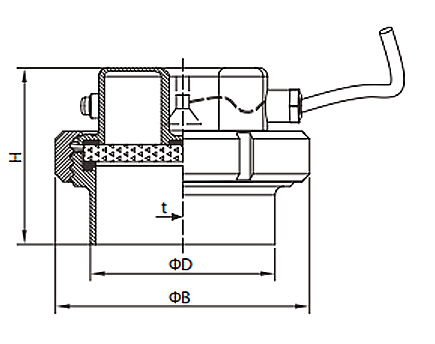

Model No Size H B D t
TSP01W41S2080N DN80 88  125  89  4
TSP01W41S2100N DN100 88  146  108  4
TSP01W41S2125N DN125 96  178  133  4
TSP01W41S2150N DN150 96  219  159  4

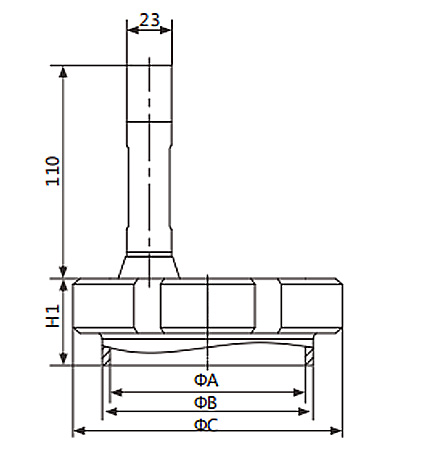

Model No Size H1 A B C
TSP03W41S2050N DN50 35  50  57  87
TSP03W41S2065N DN65 45  65  72  106
TSP03W41S2080N DN80 55  80  89  124
TSP03W41S2100N DN100 63  100  108  145
TSP03W41S2125N DN125 47  125  133  169
TSP03W41S2150N DN150 61  150  159  196
