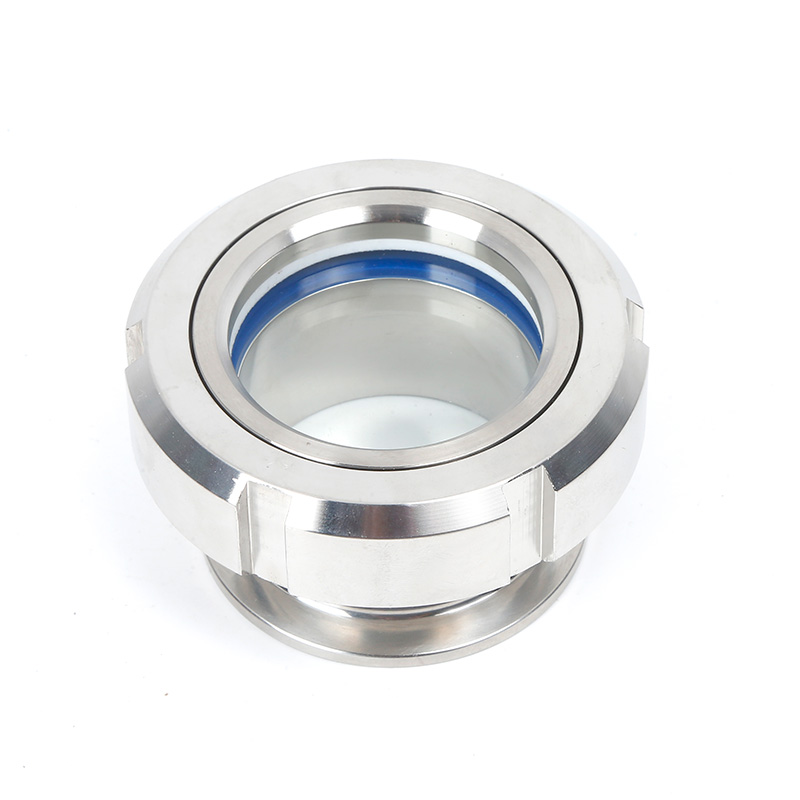

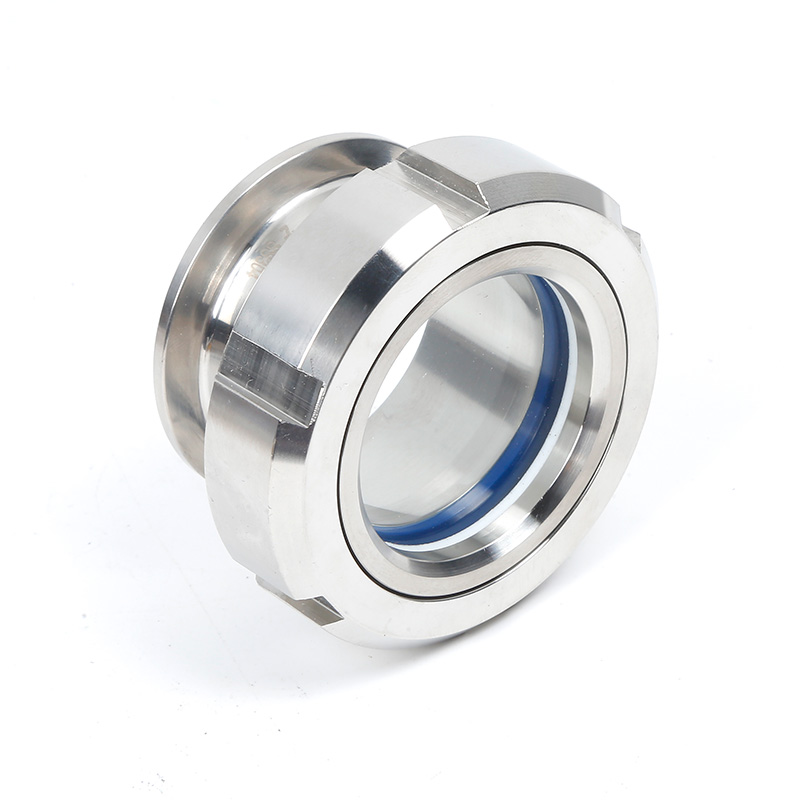

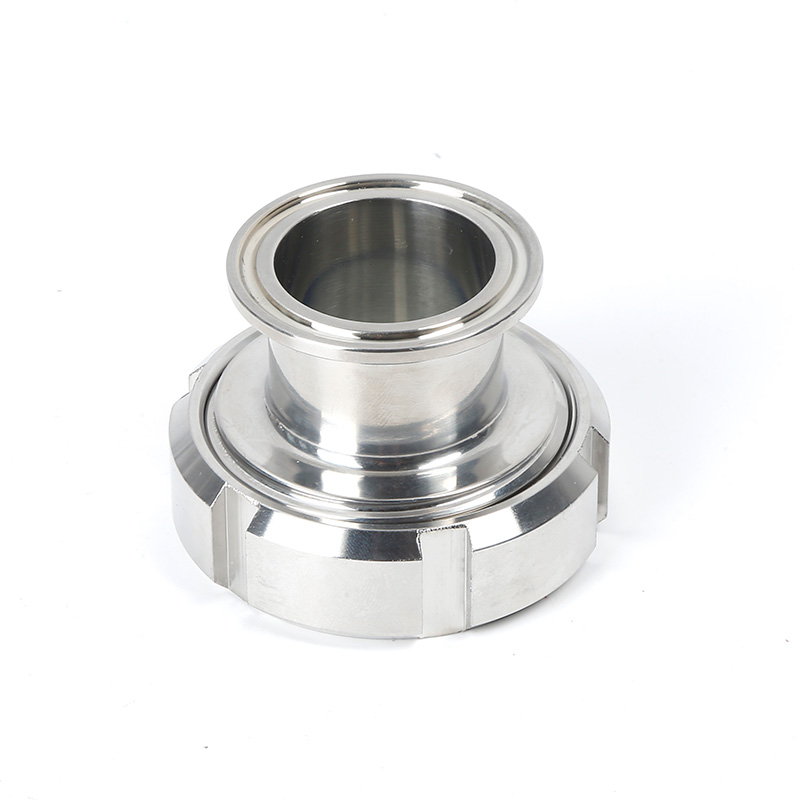

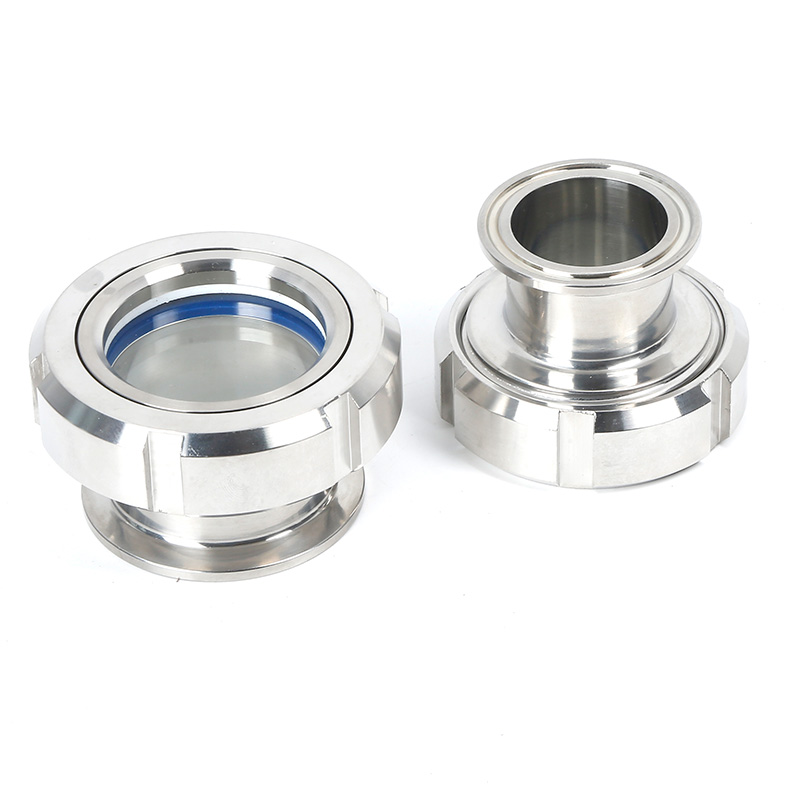

Sanitary Clamp Union Type Sight Glass Product SS304 SS316L Union Tri Clamp Sight Glass Stainless Steel Tank Fitting

Application

Union Type sight glasses are welded to container to allow visual observation of product flow.  TSU series sight glasses are widely used in food, beverage, and pharmaceutical industries.

Materials

• Butt weld Male Part:  SS304/SS316L

• Slotted cover nut:      SS304

• Glass:                        Toughened Soda-lime glass

• Gasket Material:        Silicon per FDA 177.2600

Design And Features

• Toughened glass for safety using

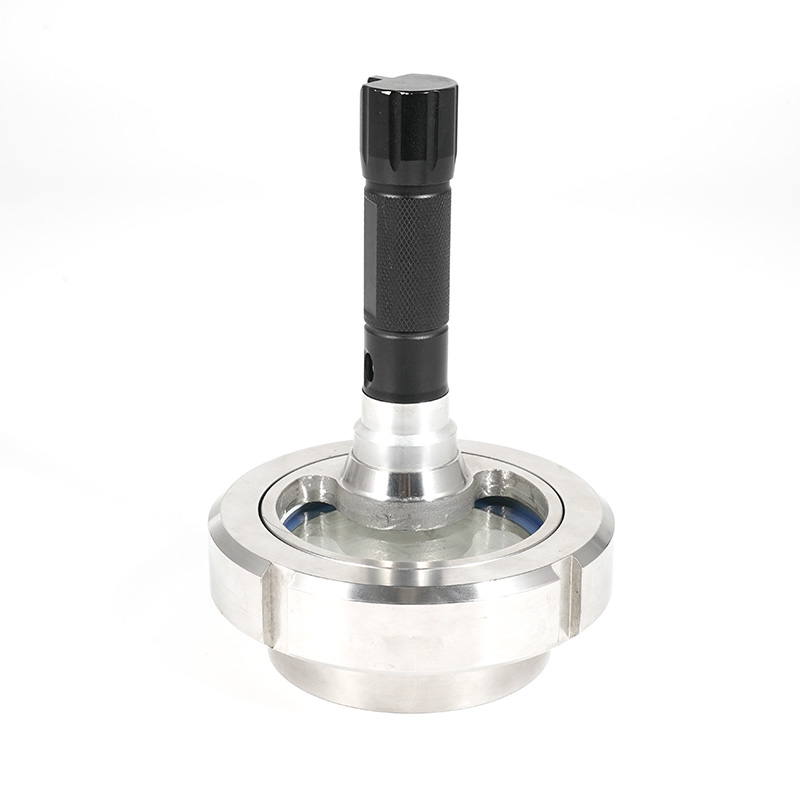

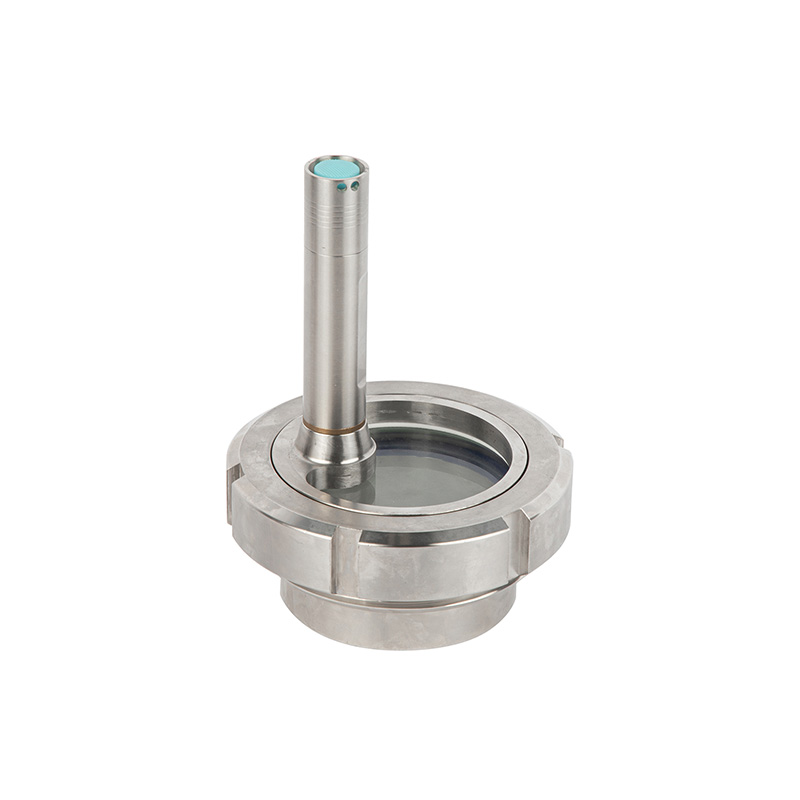

• LED light options available

• Wiper options available

Operating Conditions

• Working Pressure:        6Bar

• Working Temperature: -10°C to 120°C

Options

• Light fittings for size over DN65
• Wiper for size over DN65
• Glass Material:  Toughened Borosilicate
• Seal Material:    EPDM, FPM per FDA 177.2600

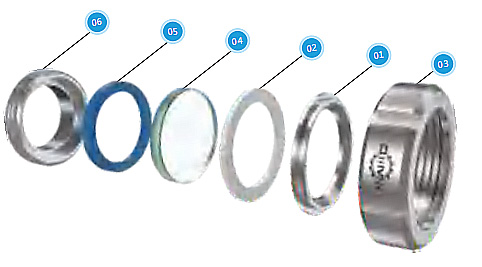

Item

Description

Material

1

Hold-down Ring

SS304

2

Flat Gasket

PTFE

3

Nut

SS304

4

Glass

Tempered Soda-lime glass

5

Gasket

Silicon

6

Female Parts

SS304/SS316L
