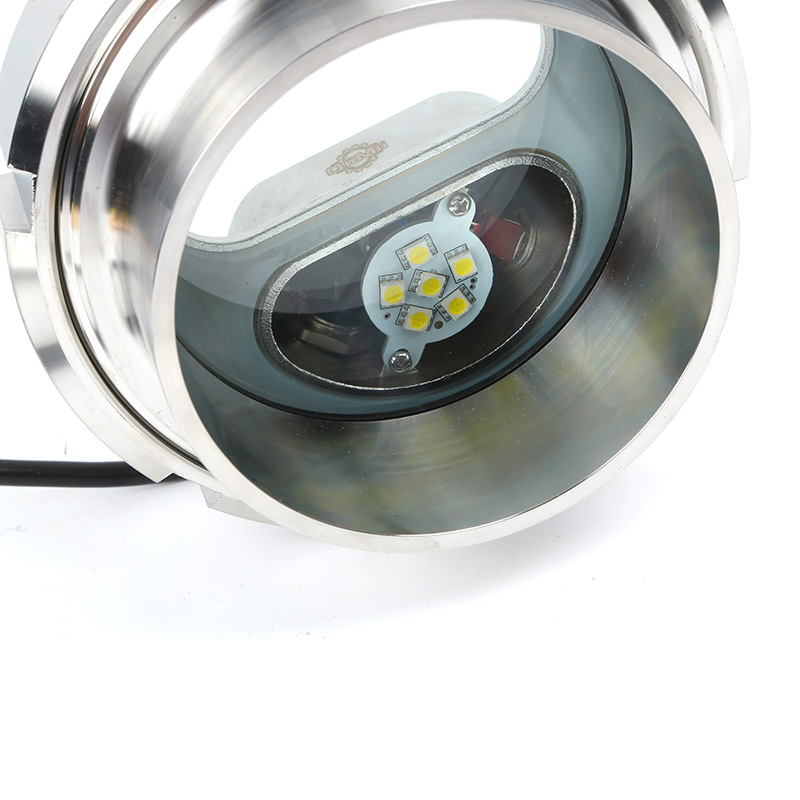

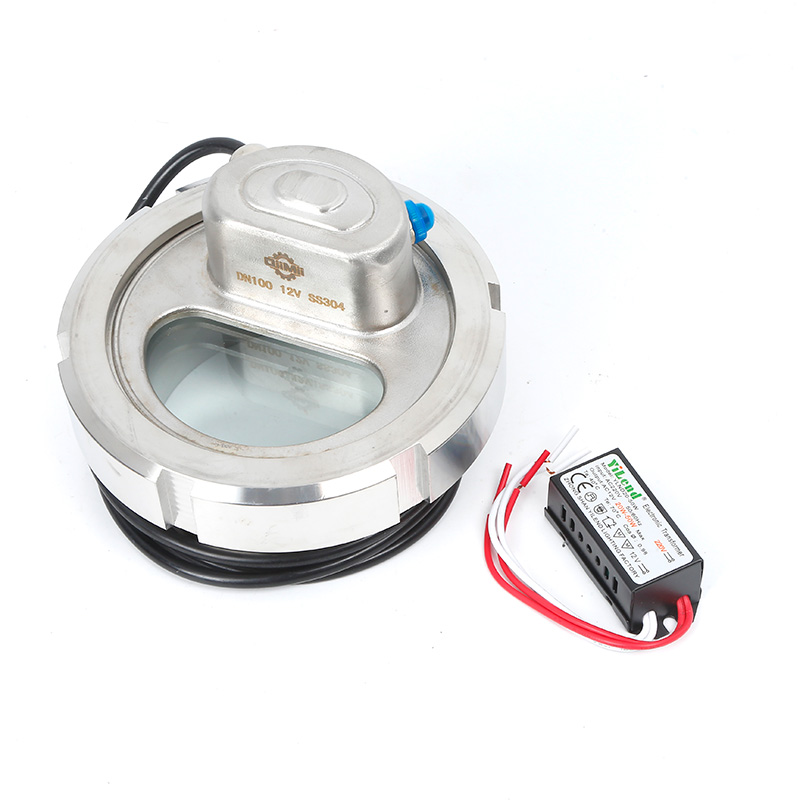

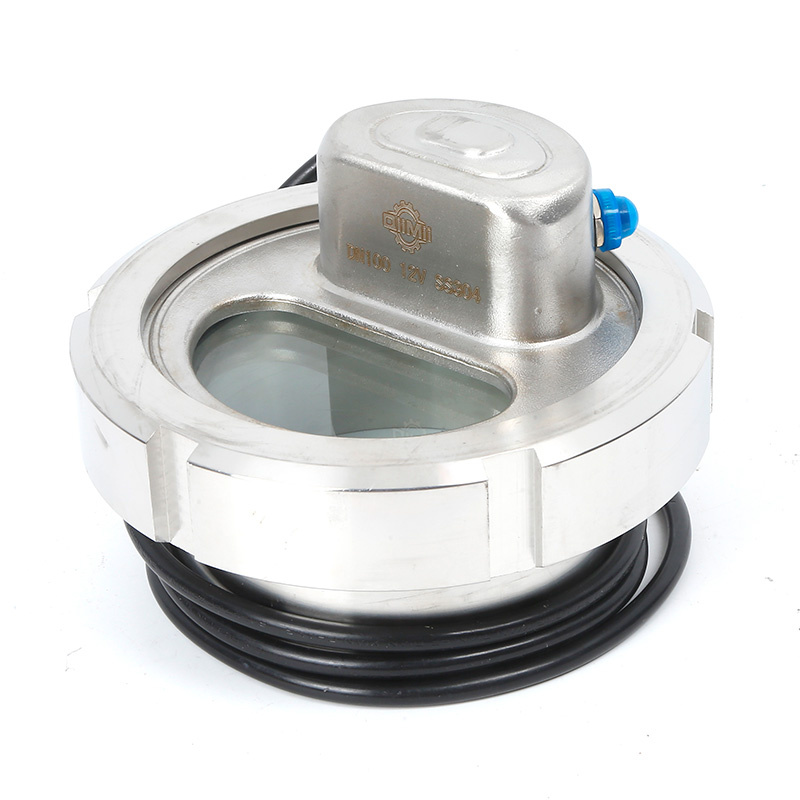

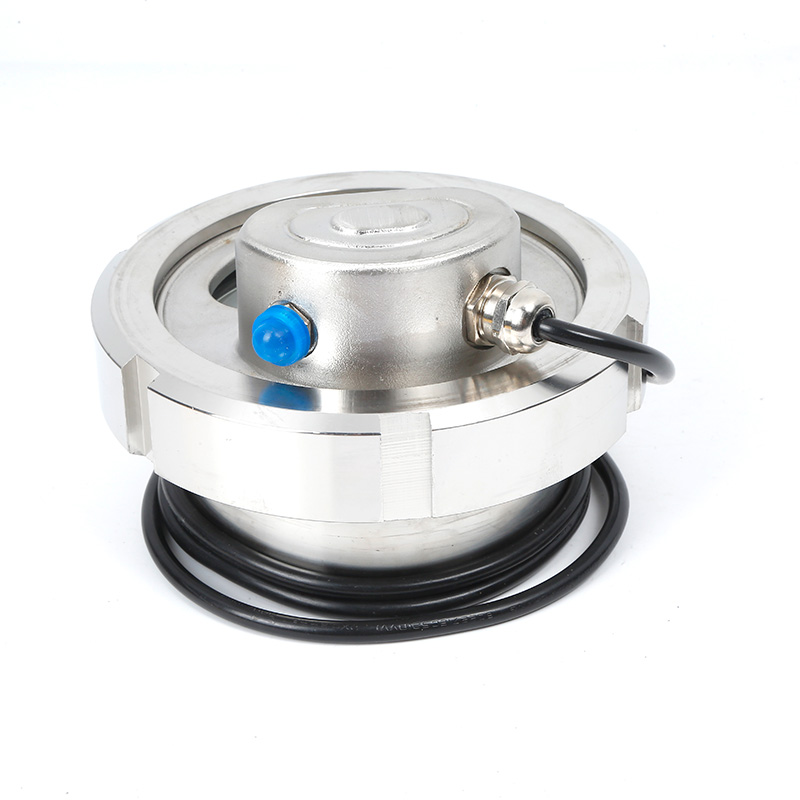

TSP Sight Glass with Light Indicator

Application

TSP Series sight glass with light indicator is designed for make sure smooth observation even under dark circumstances.

Materials

• Body: AISI-304 or AISI-316L

• Tempered glass

• Gasket Material:Silicon, EPDM, FRM

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

• Available in size from DN80-DN150

• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

• End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: CNC machining
