Duplex Tube Filter Perforated Plate Screen/Wedge Wire Screen SS304/SS316L Available With Preparation For Pressure gauge

Application

TFD Hygienic Duplex Filter Assembly consisting of 4pcs butterfly valves VBN and 2pcs Angle type Filters TFA. Stainless Steel 304 or 316L, clamp end connections to ASME BPE. Silicon Seals (-10°C to +120°C) according to FDA 177.2600

Materials

• Housing Material: SS304 or SS316L
• Filter Material: PP, PTFE, Nylon or PE
• Filter Presicion: 0.1-60um(0.22um is the standard)

Standard Design

• Perforated Plate screen standard with Ø 2mm holes, on request available from Ø 0,5 mm to Ø 3 mm.
• Metal screen mesh with100mesh , on request available 80 to 400 meshes
• Wedge Wire Screen options available
• Size available: DN25 (1") to DN100 (4").
• Available in stadard setup
• Available with preparation for pressure gauge

Technical Specification

• Temperature range: -4 ~ 275℉ (-20 ~ 135℃), EPDM

• Working Pressure: 14.5-145Psi (1-10Bar)

Features And Design

•  Perforated Plate screen standard with 0 2mm holes, on request available from φ 0,5 mm to φ 3 mm.
• Metal screen mesh with100mesh , on request available 80 to 400 meshes
• Wedge Wire Screen options available
• Size available: DN25 (1") to DN100 (4").
• Available in stadard setup
• Available with preparation for pressure gauge

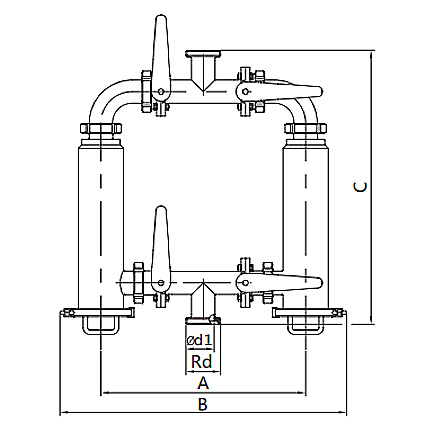

​​​​​​​Clamp Duplex Tube Filiter

	Size	d1	Rd	A	B	C
	1''	22.1	50.5	342.2	381.7	432.9
	1.5''	34.8	50.5	363.4	408.9	471.2
	2''	47.5	64	451.4	510.9	592.2
	2.5''	60.2	77.5	455.4	514.9	657.3
	3''	72.9	91	508.2	573.2	754.1
	4"	97.4	119	583.8	661.3	868.2
