Name: SS304 Stainless Steel Double Bolt Safety Clamp Strong Hoop High Pressure Steel Wire Two-Piece Hose Clamp DIN2817
Brand: QIMING
SKU: 00361
Rating: 4.9 (231 reviews)

SS304 Stainless Steel Double Bolt Safety Clamp Strong Hoop High Pressure Steel Wire Two-Piece Hose Clamp DIN2817

Model No.:FCS01

SKU:FCS01

Size.:

Material:

Application

Bolt Safety clamp is manufactured incompliance with EN14420-3/DIN2817, and areused to assemble male or female-threadedhose shank adapters and flange couplingswith a smooth hose shank that comply withEN14420-2/DIN2817.

Materials

Material: AISI-304,AISI 316L
Working pressure:25Bar(EN 14420-3)

Safety Clamp EN 14420-3(DIN2817)

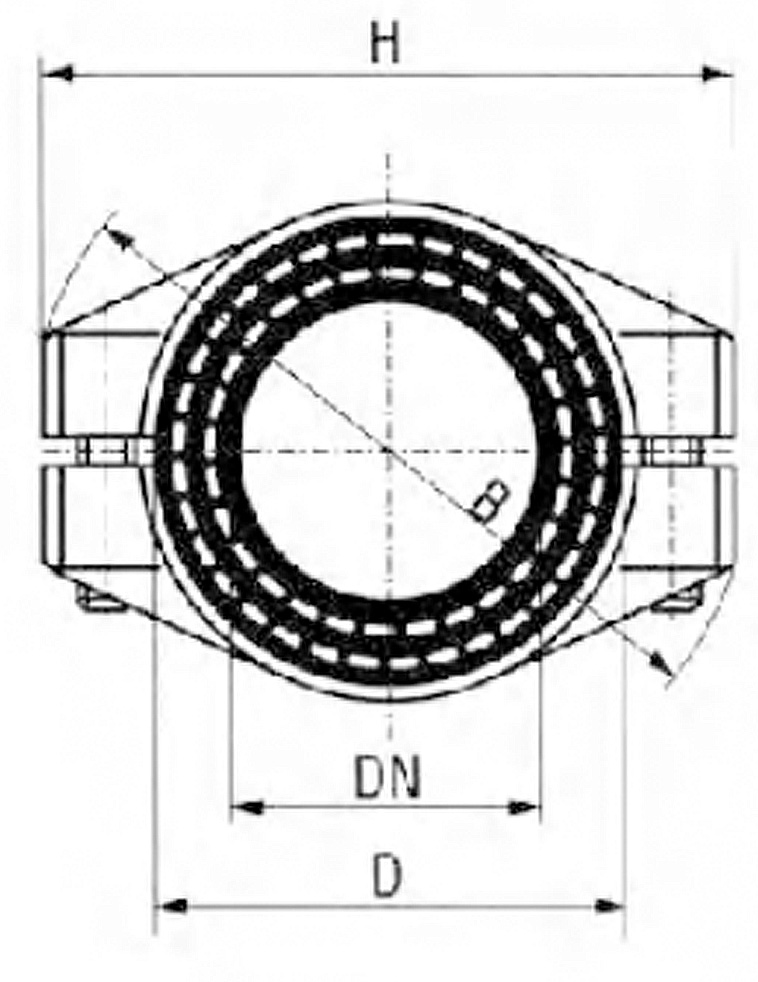

Model	Hose ID X Wall Thickness DN(mm)	Hose OD(mm)	Height H(mm)	Width B(mm)	Bolt&Nut	N.W./g
FCS012013X5	13X5	22-24	50±1	51±2	4*M6	257
FCS012019X6	19X6	30-33	50±1	63±2	4*M6	308
FCS012025X6	25X6	36-39	50±1	63±2	4*M6	333
FCS012032X6	32x6	43-46	50±1	75+3/-2	4*M6	353
FCS012038X6	38X6.5	50-53	50±1	82+3/-2	4*M6	443
FCS012040X7	40X7	53-56	50±1	84+3/-2	4*M6	410
FCS012050X8	50X8	63-67	56±1	102+3/-2	4*M8	766
FCS012050X10	50X10	69-72	56±1	106+3/-2	4*M8
FCS012063X8	63X8	78-82	74±1	120+4/-2	4*M8	1083
FCS012075X8	75X8	89-94	76±1	132+4/-2	4*M8	1230
FCS012075X10	75X10	94-97	76±1	136+4/-2	4*M8	1350
FCS012080X8	80X8	94-97	76±1	137+4/-2	4*M8
FCS0120100X8	100X8	114-119	120±1	166+4/-2	4*M10	2967
FCS0120100X10	100X10	118-122	120±1	170+4/-2	4*M10	2971
FCS0120125X10	125X10	143-148	147±1	192+4/-2	4*M10	5710
FCS0120150X10	150X10	167-173	180±1	227+4/-2	4*M10	8676
