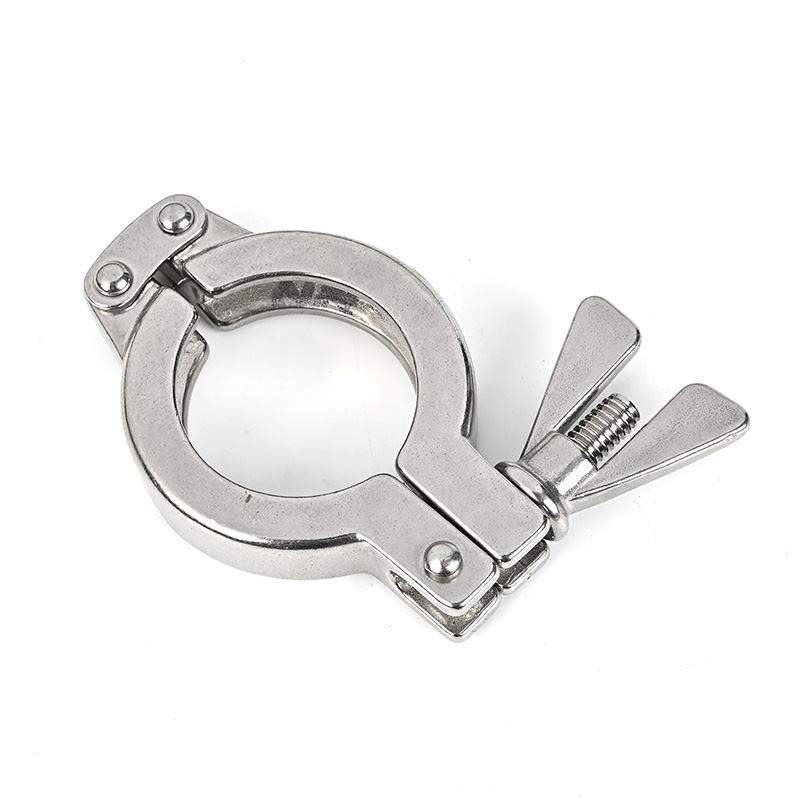

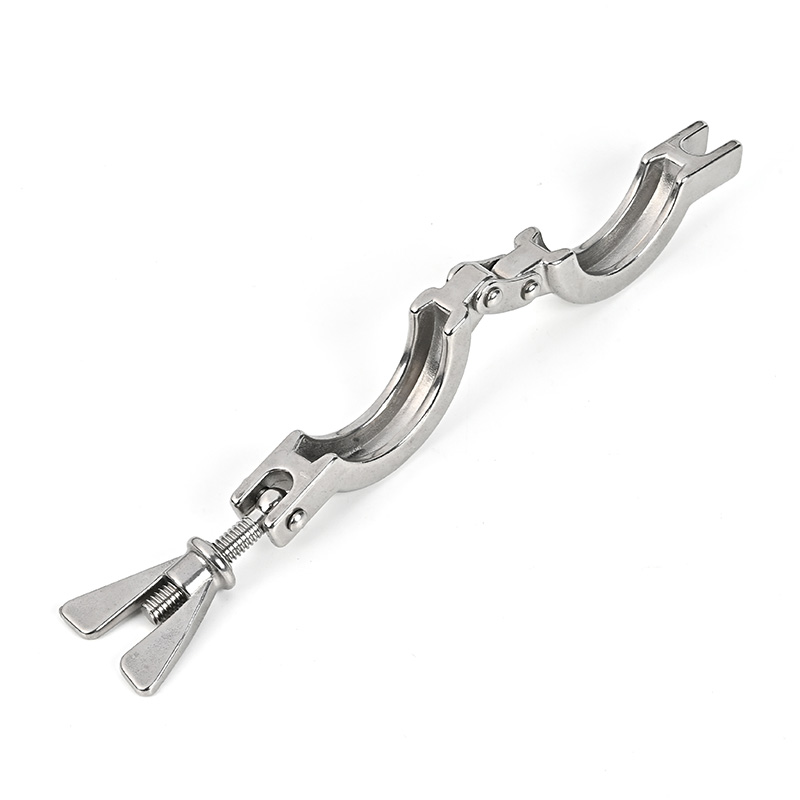

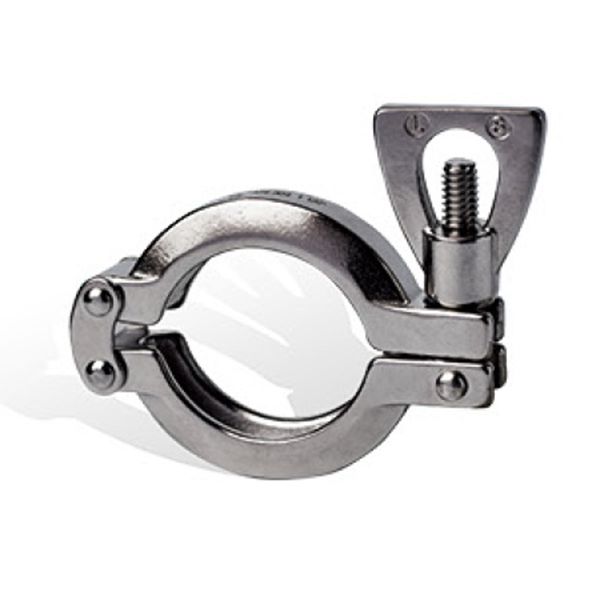

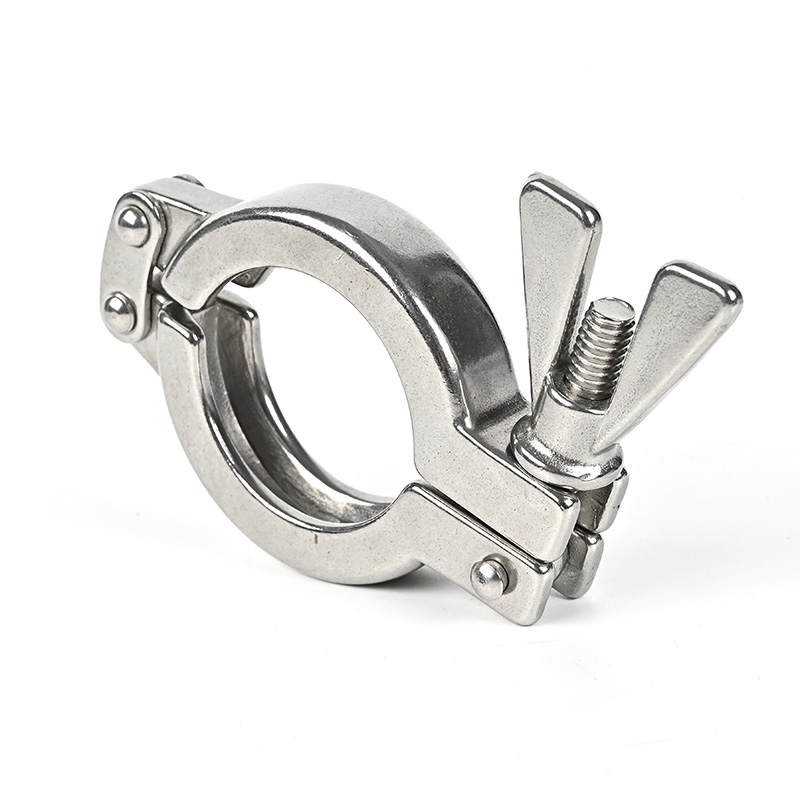

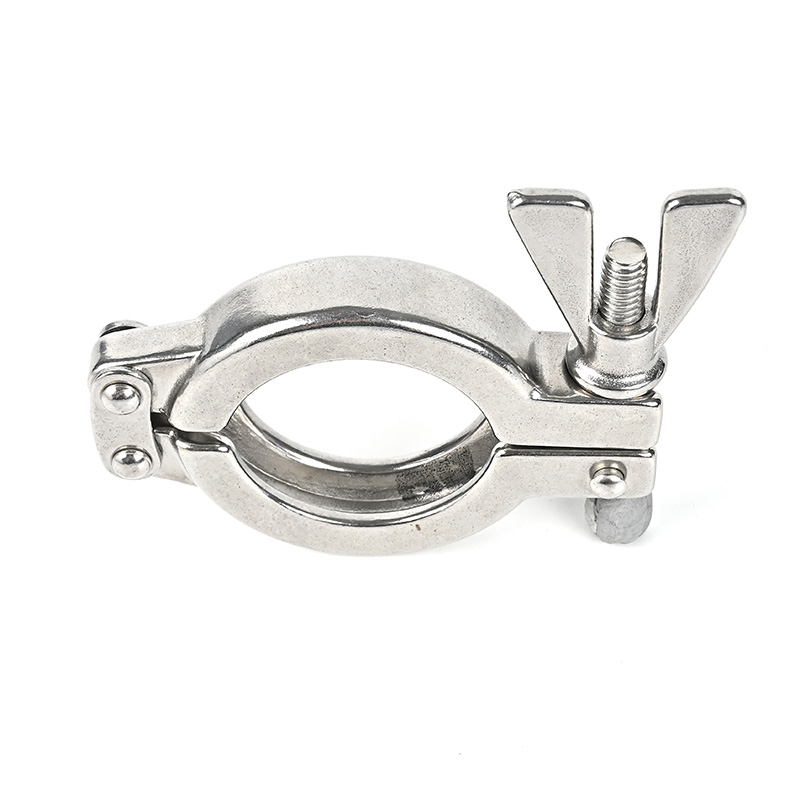

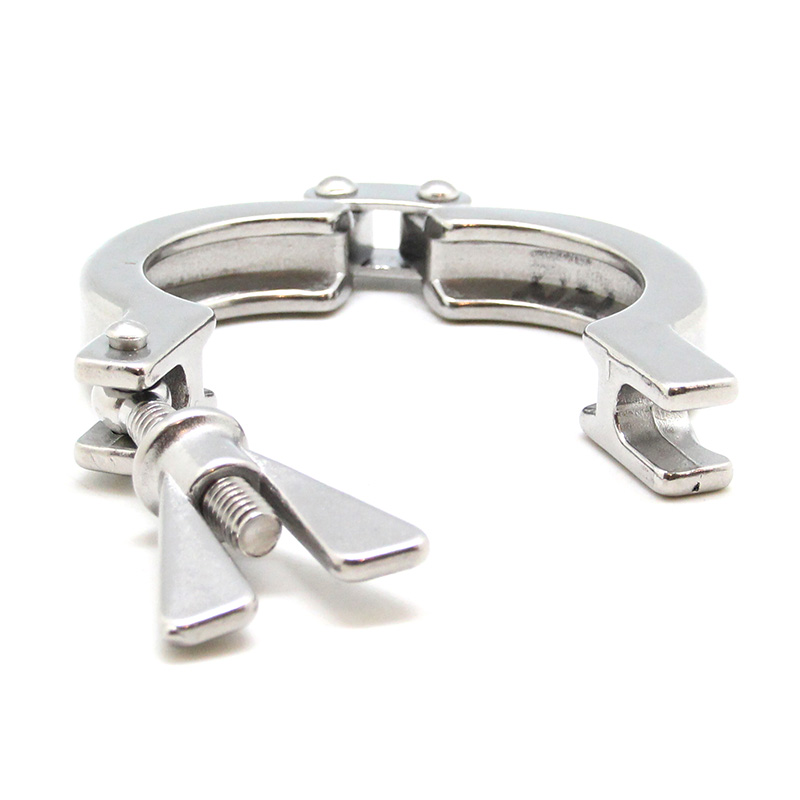

Sanitary 13EU Heavy Duty Double Pin Clamp
Sanitary 13EU Heavy Duty Double Pin Clamp
Sanitary 13EU Heavy Duty Double Pin Clamp
Sanitary 13EU Heavy Duty Double Pin Clamp
Sanitary 13EU Heavy Duty Double Pin Clamp

Sanitary 13EU Heavy Duty Double Pin Clamp

Model:FCD04

Inquire Now PDF Datasheet

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

Standard Design

  • Size available: 1/2"-8" or DN10-DN200

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

  • End connections: Weld or Tri-clamp

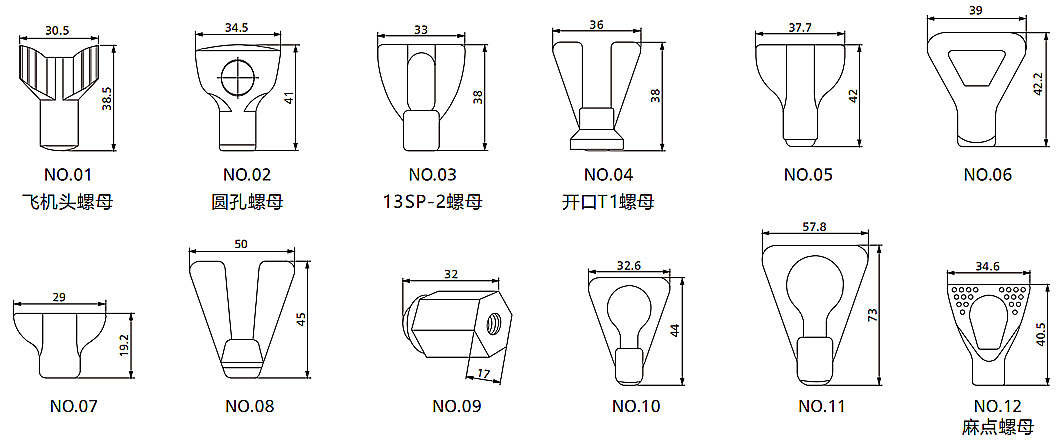

Detailed specifications on the drawing label

13EU Heavy Duty Double Pin Clamp

Model Size A/mm B/mm For Ferrule Flange OD N.W./g
BS4825 ISO2852 DIN32676
FCD041075 1/2"-3/4" DN6/8610 DIN4/6/8 20 28 25.2 147
FCD042020 / / DN10/15/20 27.8 37 34 165
FCD041150 1"-1.5" DN15/20/25

DN25/32/40

43 53 50.5 260
FCD041200 2" DN32/40 DN50 57 67 64 296
FCD041250 2.5" DN50 / 70.6 80 77.5 326
FCD041300 3" DN65 DN65 84 94 91 366
FCD041350 3.5" DN80 DN80 100 109 106 417
FCD041400 4" / DN100 112 122 119 457
FCD041450 4.5" DN100 / 123 133 130 473
FCD041500 5" / DN125 135.5 147 144.5 874
FCD041550 ⌀140 / / 145 158 155 1160
FCD041600 6" / DN150 155.4 170 167 1157
FCD041625 ⌀159 DN150 / 223 237 233 1636
FCD041800 8" / DN200 205 221 217.4 1463
FCD041850 ⌀219 DN200 / 223 237 233 1636
FCD0411000 10" / DN250 258 272 268 1825
FCD0411050 10.5" / / 276 290 286 19371
FCD0411200 12" / DN300 307 323 319 2187
