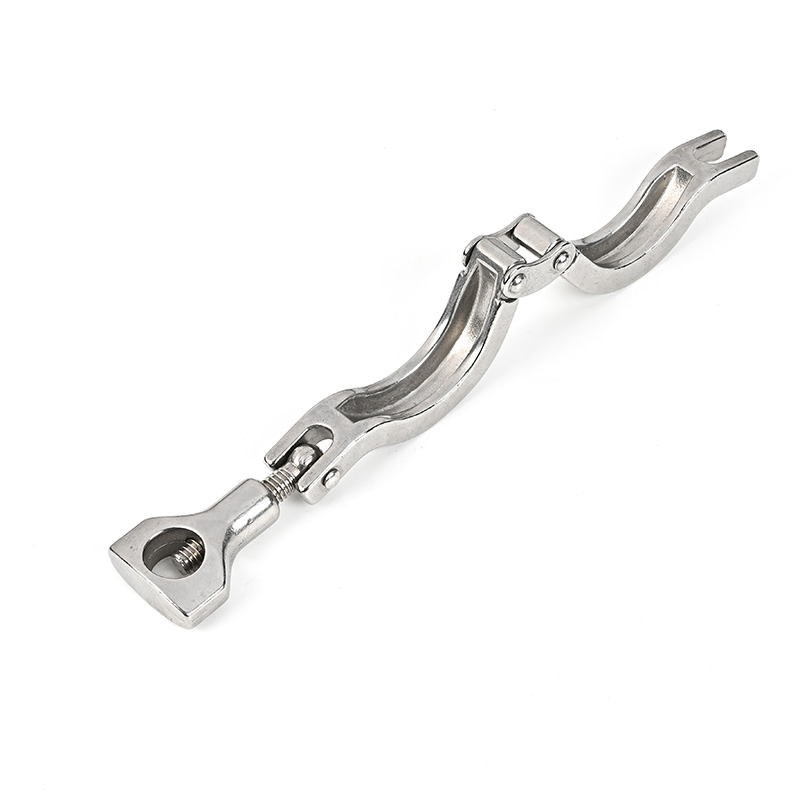

13MHHM Heavy Duty Double Pin Clamp Sanitary SS304 Stainless Steel 3A/DIN32676 High Quality Clamps Fitting

Model No.:FCD05

SKU:FCD05

Size.:

Material:

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

Body: AISI-304, 316L

Standard Design

Size available: 1/2"-8" or DN10-DN200
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp

Detailed specifications on the drawing label

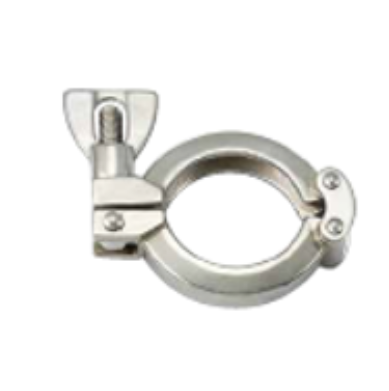

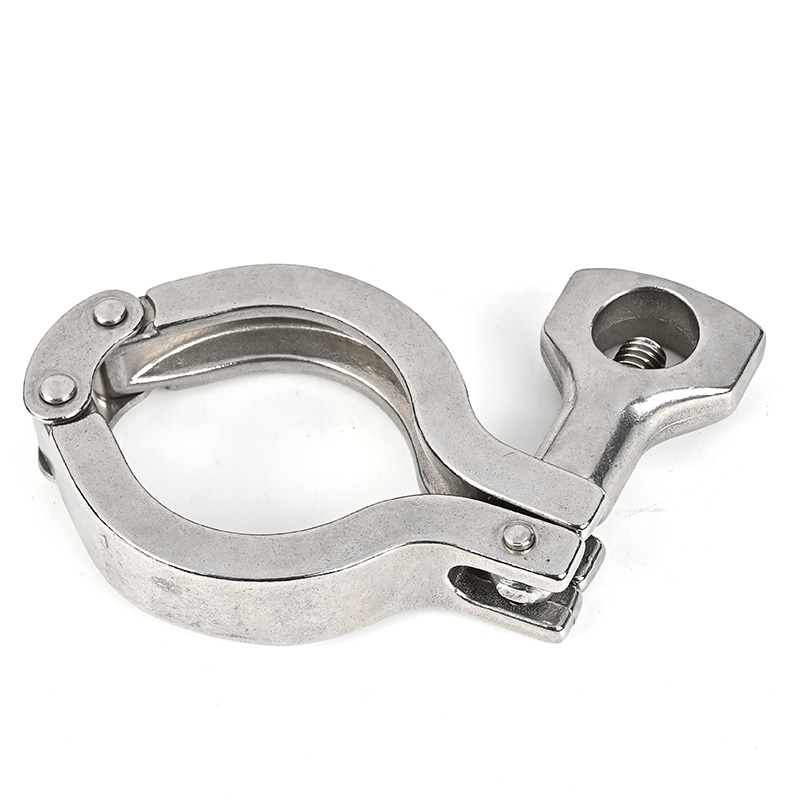

13MHHM Heavy Duty Double Pin Clamp

Model	Size		A/mm	B/mm	For FerrulE Frange OD	N.W./g
Model	3A	DIN32676	A/mm	B/mm	For FerrulE Frange OD	N.W./g
FCD051075	1/2"	/	20	28	25.2	150
FCD051100	/	DN10-DN20	27.5	42.9	34	170
FCD051150	1"-1.5"	DN25-DN40	43	53.6	50.5	230
FCD051200	2"	DN50	57	67	64	270
FCD051250	2.5"	/	70.6	80.6	77.5	300
FCD051300	3"	DN65	84	94	91	340
FCD051350	3.5"	DN80	100	110	106	400
FCD051400	4"	DN100	112	122	119	440
FCD051450	4.5"	/	123	133.2	130	490
FCD051500	5"	DN125	135.5	148	144.5	810
FCD051550	⌀140	/	145	159	155	874
FCD051600	6"	DN150	155.4	170.4	167	1030
FCD051625	⌀159	/	173	187	183	1111
FCD051800	8"	DN200	205	221	217.4	1300
FCD051850	⌀219	/	223	23	233	1430
FCD0511000	10"	DN250	258	272	2668	1450
FCD0511050	10.5"	/	276	290	286
FCD0511200	12"	DN300	307	323	319	1748
