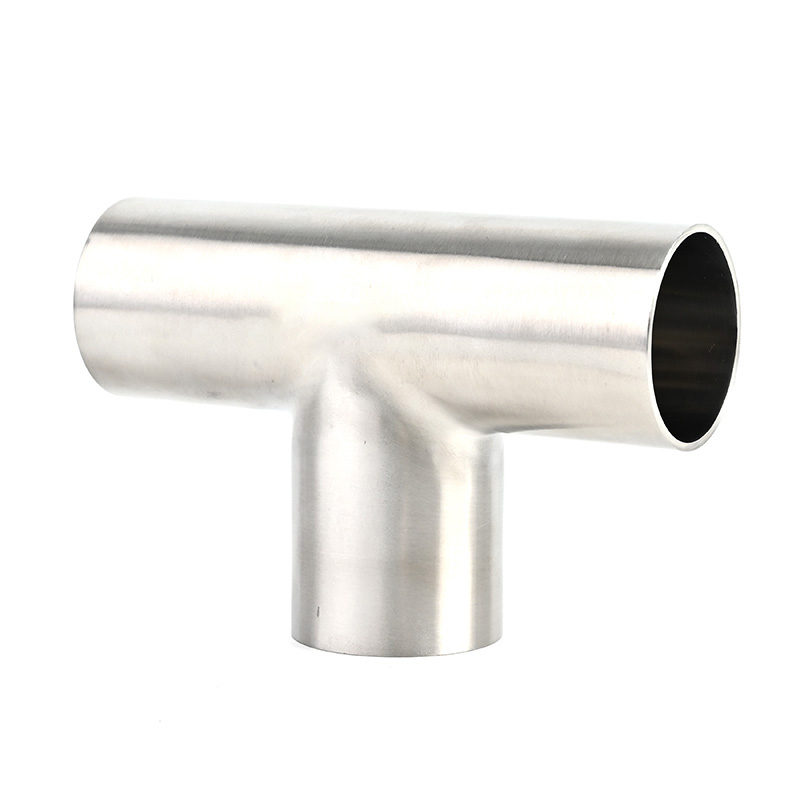

Sanitary ISO1127 Weld Equal Tee SS304 SS316L High Quality ISO1127 Welding Pipe Fitting Stainless Steel Equal Tee

Model No.:FTW01

SKU:FTW01

Size.:

Materials:

Finishing:

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld
Size available: 1/2"-8" or DN10-DN200

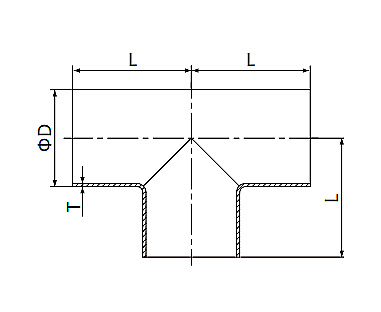

Detailed specifications on the drawing label

ISO1127 Equal Tee

Model No	Size	D/mm	L/mm	T/mm	N.W/g.
FTW017038	3/8"	17.2	25	1.6
FTW017050	1/2"	21.3	25	1.6
FTW017075	3/4"	26.9	29	1.6
FTW017100	1"	33.7	38	2
FTW017125	11/4"	42.4	48	2
FTW017150	1.5"	48.3	57	2
FTW017200	2"	60.3	64	2
FTW017250	2.5"	76.2	76	2
FTW017300	3"	88.9	86	2
FTW017400	4"	114.3	105	2
FTW017500	5"	139.7	124	3
FTW017600	6"	168.3	143	3
FTW017800	8"	219.1	178	3
