ISO1127 90° Weld Elbow SS304 SS316L Sanitary Welding 45° Elbows Polishing Stainless Steel 90/45 Degree Fitting

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

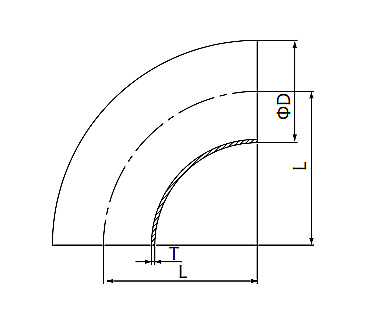

ISO1127 90° Elbow

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FEW027038	3/8"	17.2	28.5	1.6
	FEW027050	1/2"	21.3	38	1.6
	FEW027075	3/4"	26.9	38	1.6
	FEW027100	1"	33.7	38	2
	FEW027125	11/4"	42.4	48	2
	FEW027150	1.5"	48.3	57	2
	FEW027200	2"	60.3	76	2
	FEW027250	2.5"	76.2	95	2
	FEW027300	3"	88.9	114	2
	FEW027400	4"	114.3	152	2
	FEW027500	5"	139.7	190	3
	FEW027600	6"	168.3	228.6	3
	FEW027800	8"	219.1	305	3

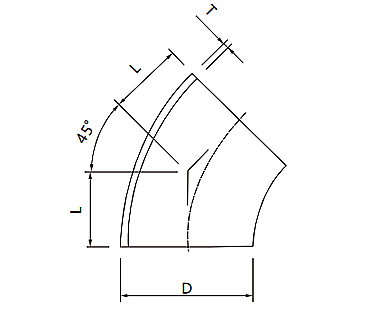

ISO1127 45° Elbow

	Model No	Size	D/mm	L/mm	T/mm	N.W/g.
	FEW047038	3/8"	17.2	16	1.6
	FEW047050	1/2"	21.3	16	1.6
	FEW047075	3/4"	26.9	16	1.6
	FEW047100	1"	33.7	16	2
	FEW047125	11/4"	42.4	20	2
	FEW047150	1.5"	48.3	24	2
	FEW047200	2"	60.3	32	2
	FEW047250	2.5"	76.2	40	2
	FEW047300	3"	88.9	47	2
	FEW047400	4"	114.3	63	2
	FEW047500	5"	139.7	79	3
	FEW047600	6"	168.3	95	3
	FEW047800	8"	219.1	126	3
