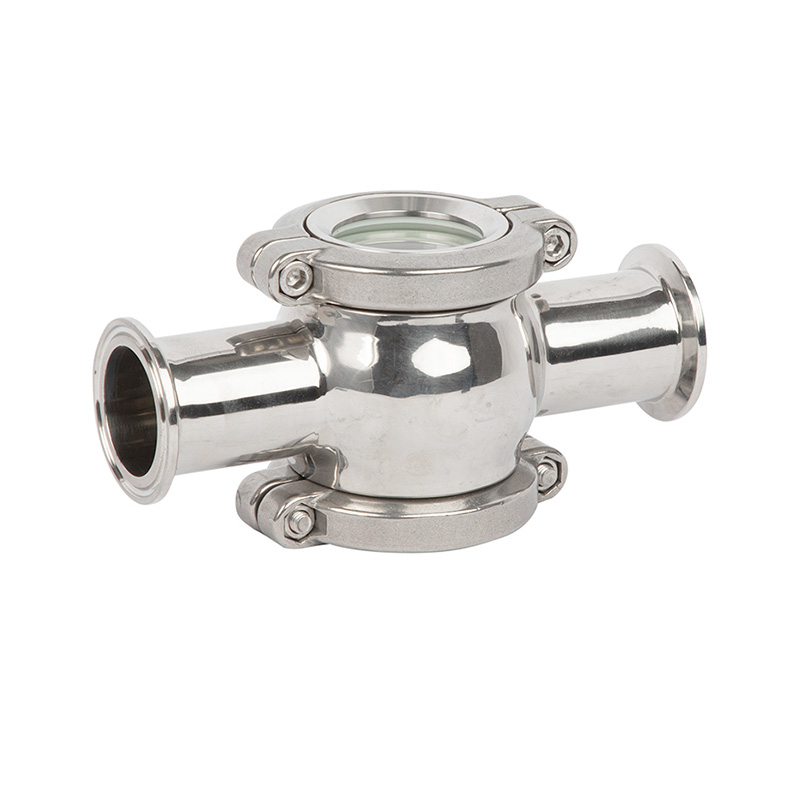

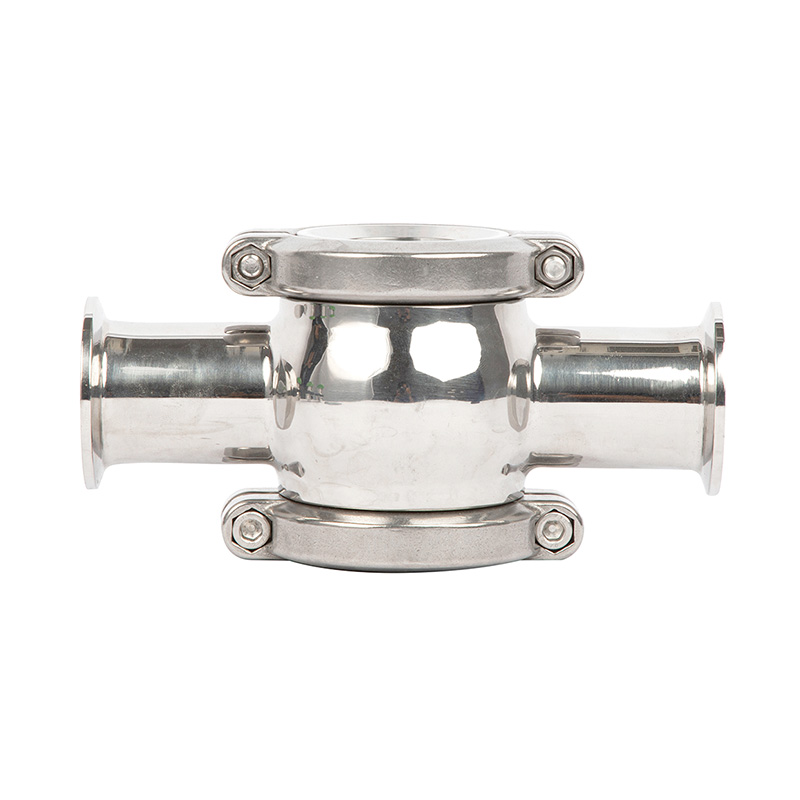

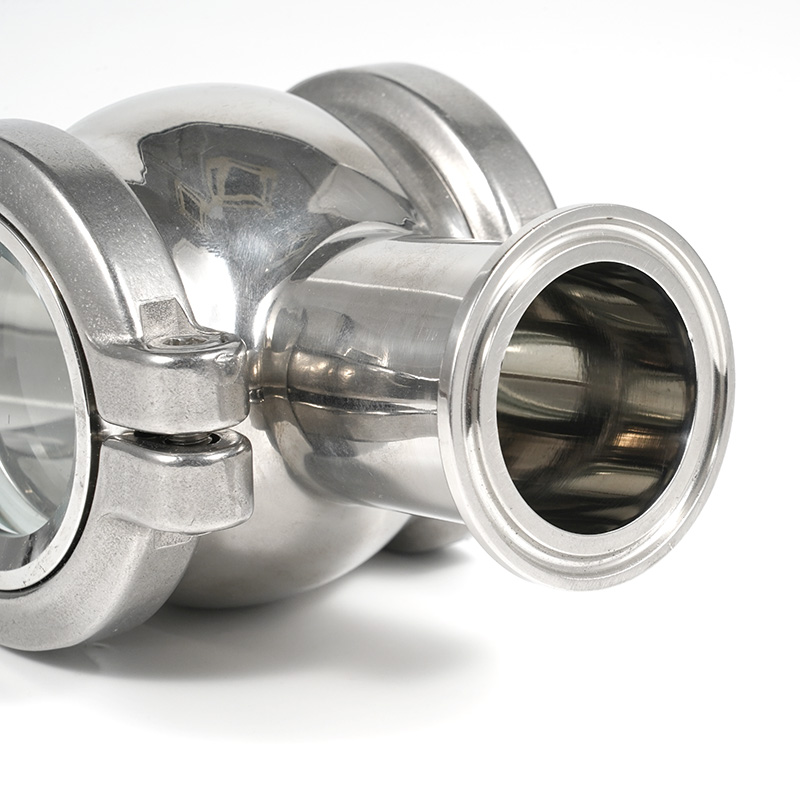

Sanitary Clamp Cross Sight Glass Stainless Steel High Temperature And Pressure Resistant LED Light/Wiper SS304 SS316L Tank Fitting Sight Glass

Application

TSX01 Series is a compact double window design, suitable for a wide rang of applications in high purity tubing systems and may be installed in any position to observe fluid flow.

For fit to clamp according BS 4825, pipe standard according ASTM A269 / 270, may be clamp connected or orbital welded onto a piping system, offer clear process visibility

Features

• Can be cleaned in situ -SlP/ClP

• Sterilizzable-Autoclavable

• Stress, Crack and shatter resistant

• High temperature and pressure resistant

• Meets FDA specifications.

• Full material traceability

• LED light options available

• Wiper options available

Option

• Light fittings for size over DN65

• Wiper for size over DN65

• Glass Material: Toughened Borosilicate

• Seal Material: EPDM, FPM per FDA 177.2600

Technical Data

• Material:                       SS304/SS316L

• Gasket:                         PTFE

• Operating pressure:     Up to 8 Bar

• Glass Material:             Toughened Soda-lime glass

• Temperature range:      -10°C to 120°C

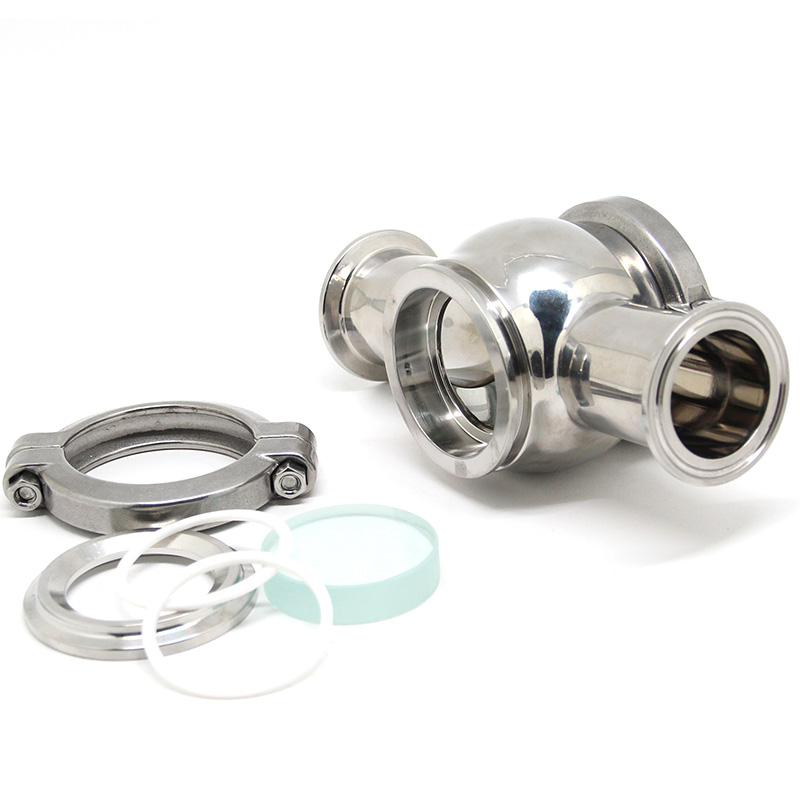

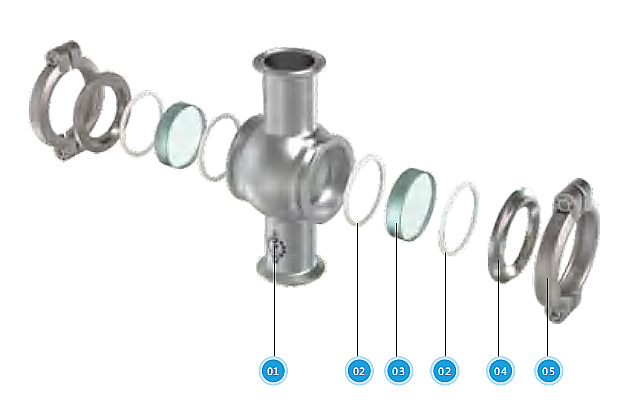

Item

Description

Material

1

Cross Body

SS304/SS316L

2

Flat sided seal

PTFE

3

Glass

Soda-lime Glass

4

Cap

SS304/SS316L

5

Clamp

SS304

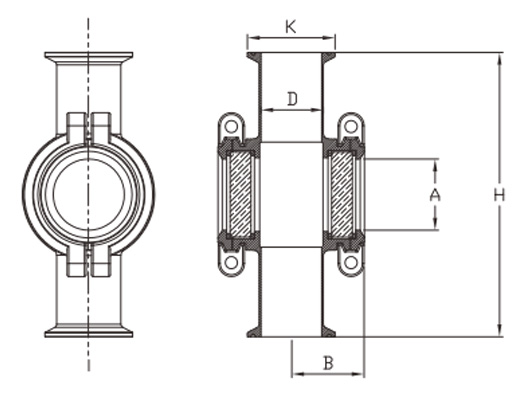

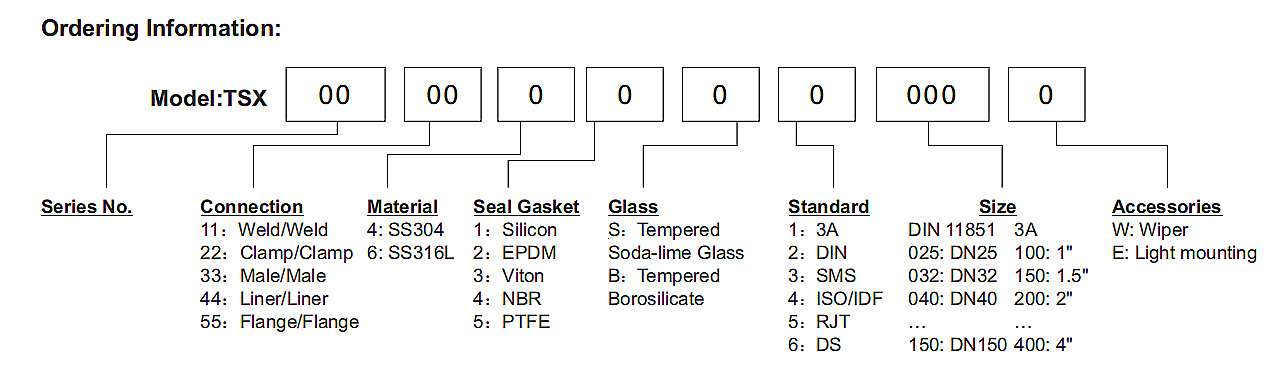

	Model No						Size						D					K					A					B					H
	TSX012241S1100						1"						25.4					50.5					23					31					116
	TSX012241S1150						1.5"						38.1					50.5					31					36					118
	TSX012241S1200						2"						50.8					64					56					46					155
	TSX012241S1250						2.5"						63.5					77.5					56					48					149
	TSX012241S1300						3"						76.2					91					71					60					164
	TSX012241S1400						4"						101.6					119					71					75					164
	TSX012241S2025						DN25						28					50.5					23					31					116
	TSX012241S2040						DN40						40					50.5					31					36					118
	TSX012241S2050						DN50						52					64					56					46					155
	TSX012241S2065						DN65						70					77.5					71					60					164
	TSX012241S2080						DN80						85					106					71					67					164
	TSX012241S2100						DN100						104					119					71					75					164
