TSP Series sight glass with light indicator is designed for make sure smooth observation even under dark circumstances.
Butt weld Male Part: SS304/SS316L
Slotted cover nut: SS304
Glass: Toughened Soda-lime glass
Gasket Material: Silicon per FDA 177.2600
Toughened glass for safety using
Circular pad flange for welding into or onto vessel wall
Size range from DN80 to DN150
Wiper options available
Working Pressure: 6Bar
Working Temperature: -10°C to 120°C
Options
Seal Material: EPDM, FPM per FDA 177.2600
 |

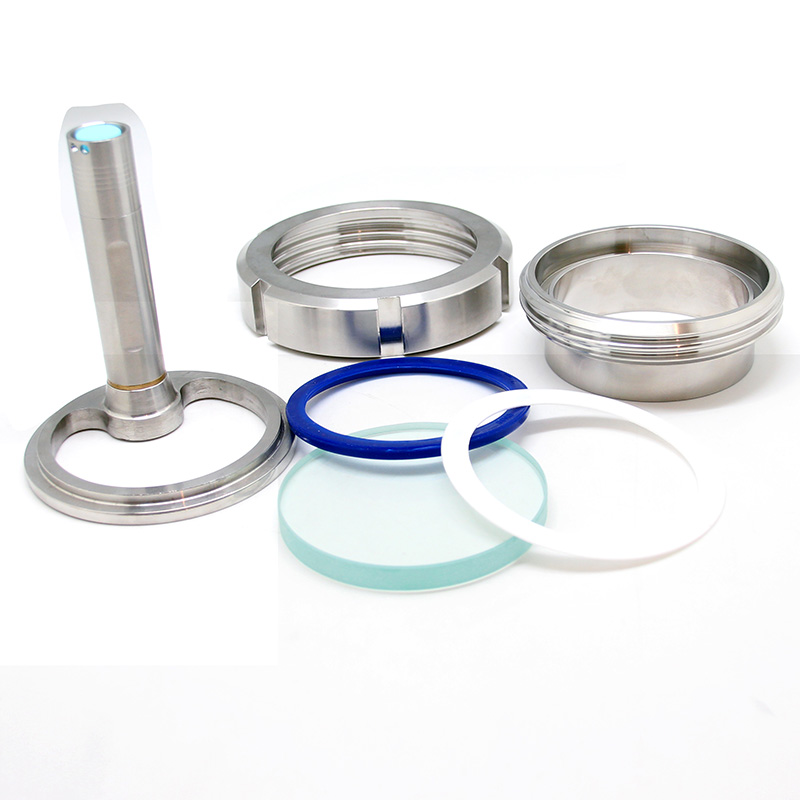

Item | Description | Material | |||||||||||||||||||||||
| 1 | Male Parts | SS304/SS316L | ||||||||||||||||||||||||
| 2 | Seat Gasket | Silicon | ||||||||||||||||||||||||
| 3 | Glass | Toughened Soda-lime glass | ||||||||||||||||||||||||
| 4 | Nut | SS304 | ||||||||||||||||||||||||
| 5 | Flat Gasket | Silicon | ||||||||||||||||||||||||
| 6 | Light parts | SS304 | ||||||||||||||||||||||||
 |
Model No | Size | H | B | D | t | |||||||||||||||||||||||||||||||
| TSP01W41S2080N | DN80 | 88 | 125 | 89 | 4 | ||||||||||||||||||||||||||||||||
| TSP01W41S2100N | DN100 | 88 | 146 | 108 | 4 | ||||||||||||||||||||||||||||||||
| TSP01W41S2125N | DN125 | 96 | 178 | 133 | 4 | ||||||||||||||||||||||||||||||||
| TSP01W41S2150N | DN150 | 96 | 219 | 159 | 4 | ||||||||||||||||||||||||||||||||
 |
Model No | Size | H1 | A | B | C | |||||||||||||||||||||||||||||||
| TSP03W41S2050N | DN50 | 35 | 50 | 57 | 87 | ||||||||||||||||||||||||||||||||
| TSP03W41S2065N | DN65 | 45 | 65 | 72 | 106 | ||||||||||||||||||||||||||||||||
| TSP03W41S2080N | DN80 | 55 | 80 | 89 | 124 | ||||||||||||||||||||||||||||||||
| TSP03W41S2100N | DN100 | 63 | 100 | 108 | 145 | ||||||||||||||||||||||||||||||||
| TSP03W41S2125N | DN125 | 47 | 125 | 133 | 169 | ||||||||||||||||||||||||||||||||
| TSP03W41S2150N | DN150 | 61 | 150 | 159 | 196 | ||||||||||||||||||||||||||||||||
